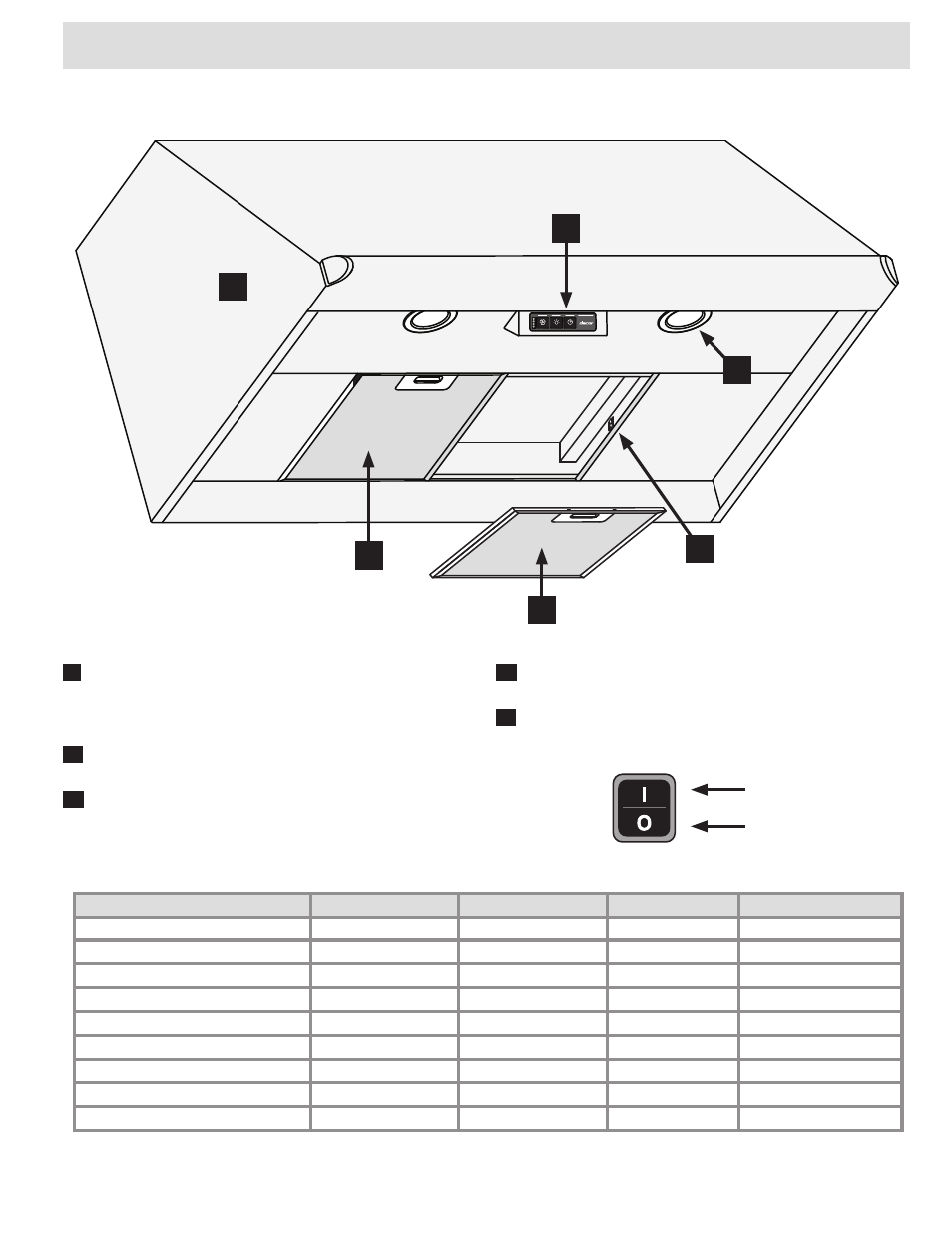

Parts of the Range Hood
a
HOOD - the hood directs heat and smoke into the fan
located inside the unit. the fan forces heat and smoke into
the duct system which vents to the outside. the filter and
the lights are located on the bottom of the hood.
B
CONTROL PANEL - use the keys on the control panel
to control your hood’s various features.
C
FILTER - Prevents grease and grime from getting into
the fan(s). the number of filters depends on the model.
See the table below.
d
LIGHTS - 75 W halogen lights. the number of lights
and location depends on the model. See the table below.
e
MAIN POWER SWITCH - the main power switch
allows you to turn off power to the hood for safety during
maintenance.
HOOD FEATURES
MODEL
HOOD WIDTH
HOOD HEIGHT
FILTERS
LIGHTS
eH/eHR3012 & MH3012
30 Inches
12 Inches
2
2
eH/eHR3018 & MH3018
30 Inches
18 Inches
2
2
eH/eHR3612 & MH3612
36 Inches
12 Inches
2
2
eH/eHR3618 & MH3618
36 Inches
18 Inches
2
2
eH/eHR4212
42 Inches
12 Inches
3
2
eH/eHR4218
42 Inches
18 Inches
3
2
eH/eHR4812 & MH4812
48 Inches
12 Inches
4
3
eH/eHR4818 & MH4818
48 Inches
18 Inches
4
3
eH/eHR5418
54 Inches
18 Inches
4
3
D
A
C
D
b
C
E
Model EH4218 Shown
On
Off
