PARTS LIST

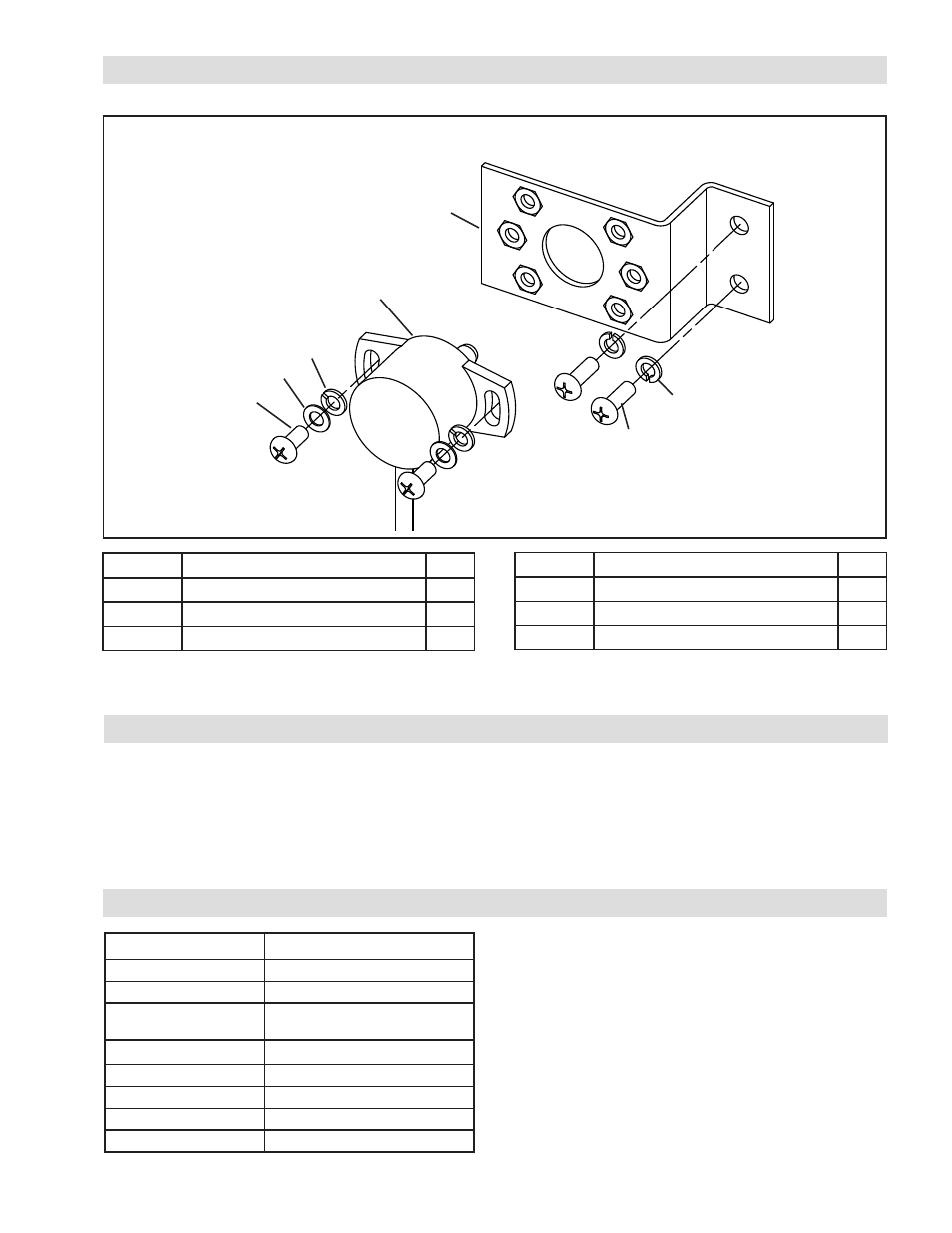

Figure 10
1
3
5
5
6
4
7
REPLACEMENT PARTS
The item or balloon number for all Nexen products is used
for part identification on all product parts lists, product
price lists, unit assembly drawings, bills of materials, and
instruction manuals. When ordering replacement parts, specify model
designation, item number, part description, and quantity.
Purchase replacement parts through your local Nexen
Distributor.
DPS60A DUAL
Product Number 964518
Supply Voltage 24 ± 6 VDC
Output Voltage 0~10VDC
@ max. angular rotation
Reverse Polarity Protection -30VDC maximum
Temperature -40 o F [-40 o C] to 185 o F [85 o C]
Enclosure IP65
Accuracy ± 1º
Angular Rotation ± 30 o maximum
SPECIFICATIONS
ITEM DESCRIPTION QTY
1 Dancer Position Sensor 1
3 Bracket 1
4 Pan Head Phillips Screw 2
ITEM DESCRIPTION QTY
5 Lock Washer 4
6 Flat Washer 2
7 Pan Head Phillips Screw 2
Note: DPS60A sensors prior to S/N 2269020 have only
one measurement range. Refer to Literature 21260 for
instructions and specifications.
