Nexen MWB 847501 - Manual (Page 9)

6 FORM NO. L-20010-G-1209

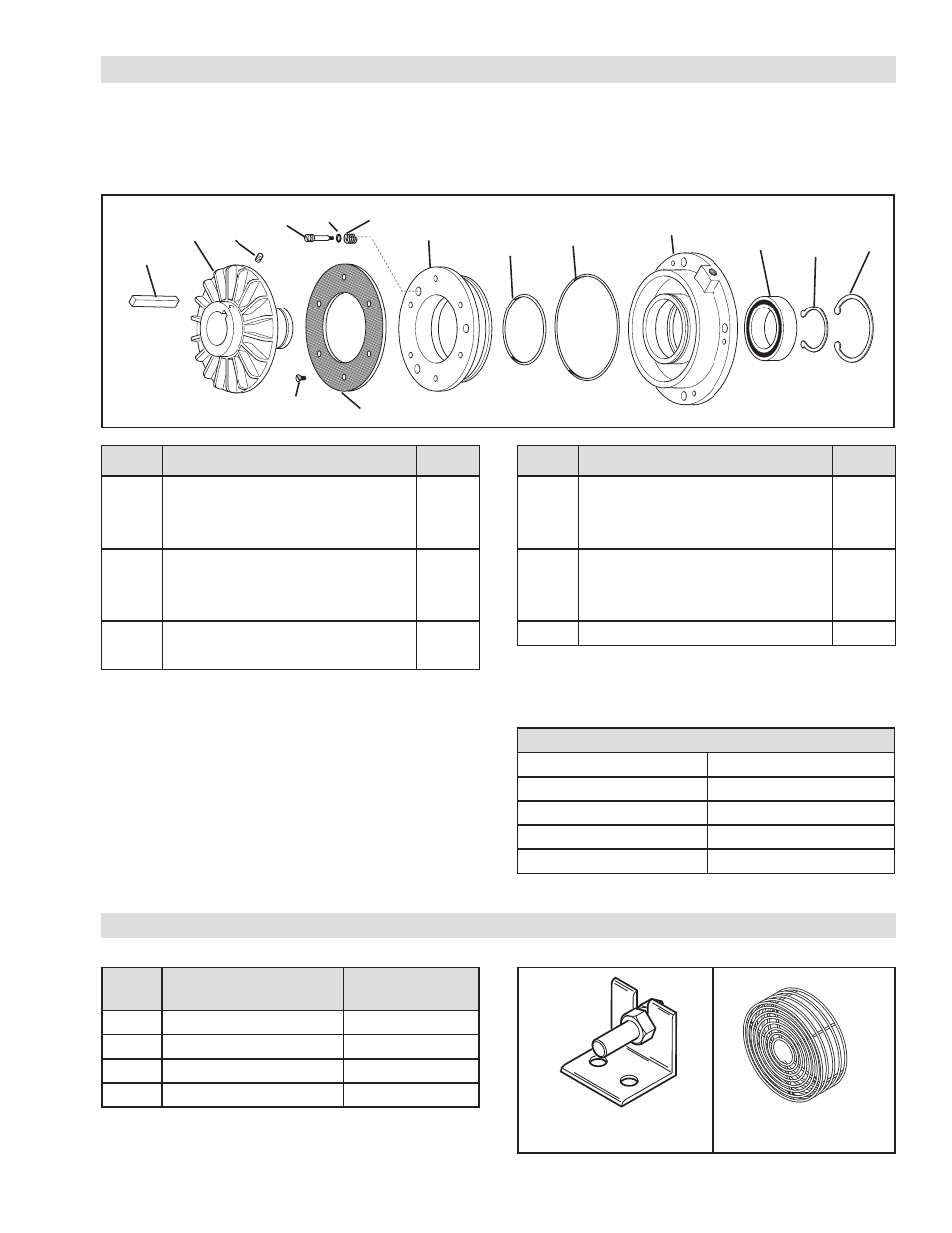

REPLACEMENT PARTS
ITEM DESCRIPTION QTY
1 Set Screw 3
2 Hub Assembly 1
3 1 Flat Head Machine Screw 6
4 1 Friction Facing 1
5 Piston 1
6 1 Shoulder Bolt *
7 1 Compression Spring *
8 Air Chamber 1
The item or balloon number for all Nexen products is used
for part identification on all product parts lists, product
price lists, unit assembly drawings, bills of materials, and
instruction manuals. When ordering replacement parts, specify model designa-
tion, item number, part description, and quantity. Purchase
replacement parts through your local Nexen Distributor.
ITEM DESCRIPTION QTY
9 1 O-ring Seal 1
10 1 O-ring Seal *
11 1 O-ring Seal 1
12 Retaining Ring (large) 1
13 Retaining Ring (small) 1
14 1 Ball Bearing 1
16 2 Key 1
1 Denotes Repair Kit item.
2 When ordering Bushing (Item 15), state the Model Number
and required bore size.
8
14 9
11
7 10
6
2
4
3
5
12
13
FIGURE 5
BRAKE GUARD
FIGURE 4
TORQUE PIN BRACKET
REPAIR KITS
Model Product Number
FWB 847300
LWB 847400
MWB 847500
HWB 847600
* QTY. 3 on FWB and QTY. 6 on LWB, MWB, and HWB
Model
Torque Pin Bracket
Product Number
Brake Guard
Product Number
FWB 819900 817700
LWB 821400 818300
MWB 823400 826300
HWB 825500 828200
ACCESSORIES
16
1
