15

FORM NO. L-20250-E-0114

INPUT UNIT

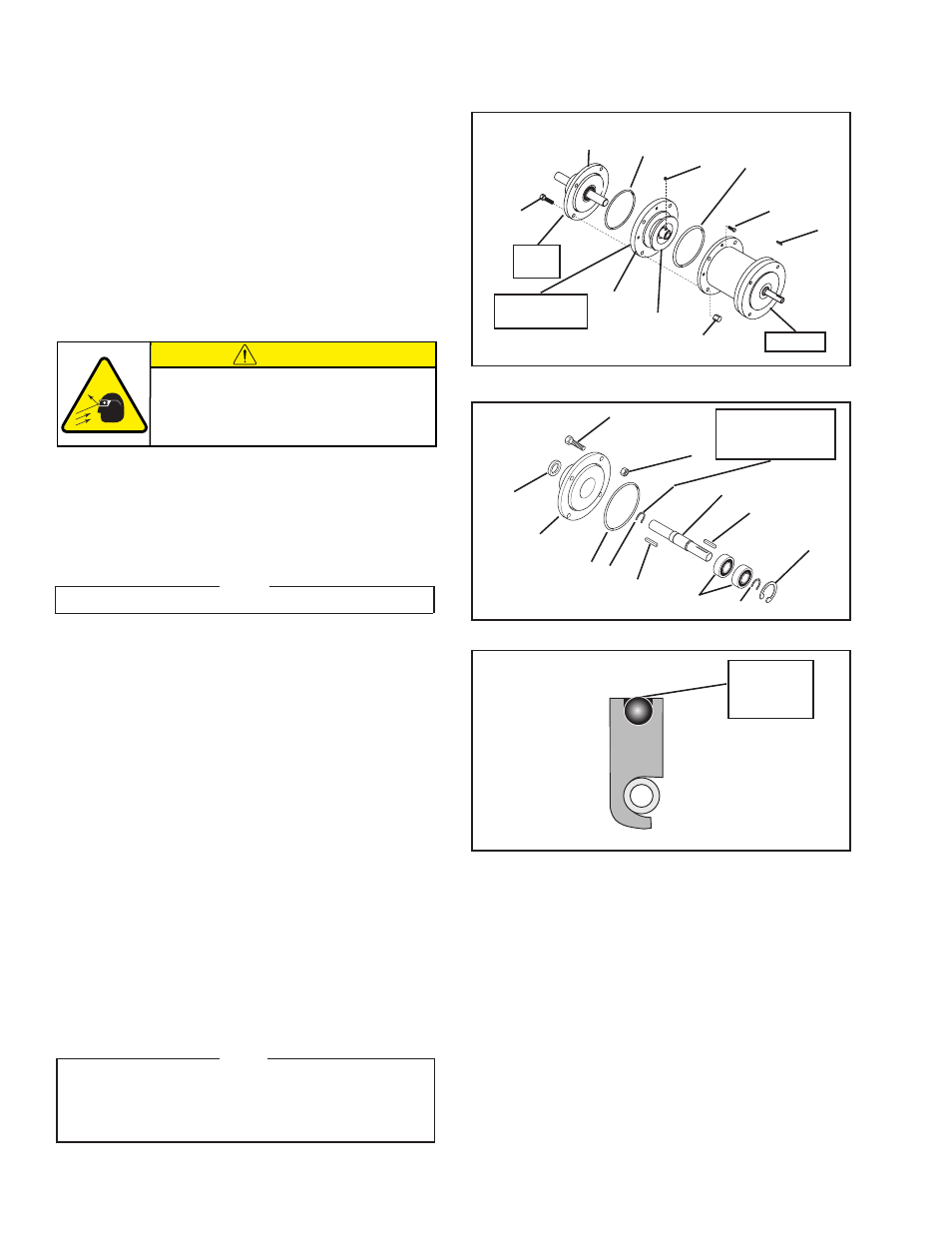

Refer to Figures 18 - 20.

1. Remove the eight Hex. Head Cap Screws (Item 27).

2. Remove the four Hex. Head Cap Screws (Item 62) and Acorn

Nuts (Item 63).

3. Remove the Female Pilot Assembly, O-Ring Seal (Item 33),

and the Input Unit from the FMCBE.

4. Remove the Set Screw (Item 26) and slide the Female Pilot

(Item 34) off the Input Unit (Item 20).

5. Remove the O-Ring Seal (Item 59).

6. Remove both Keys (Item 19).

7. Remove the Retaining Ring (Item 58).

8. Supporting the Bearing Flange (Item 20), press the Stub

Shaft (Item 11) and Bearings (Item 30) out of the Bearing

Flange.

9. Remove one Retaining Ring (Item 35).

NOTE

One Retaining Ring must remain on the Stub Shaft.

10. Press the Stub Shaft (Item 11) out of the Bearings (Item 30).

11. Press the new Bearings (Item 30) onto the Stub Shaft (Item

11) until they are seated against the Retaining Ring (Item

35) on the Stub Shaft.

12. Install the Retaining Ring (Item 35) that was removed from

the Stub Shaft.

13. Remove the Variseal

TM

(Item 13) from the Bearing Flange

(Item 20).

14. Supporting the Bearing Flange (Item 20) and pressing on

the outer races of Bearings (Item 30), press the Stub Shaft

and Bearings into the Bearing Flange until they are seated

against the step in the Bearing Flange.

15. Install the Retaining Ring (Item 58).

16. Coat the outer seal of the Variseal

TM

with a thin film of O-Ring

lubricant.

17. Press the Variseal

TM

with the spring facing out onto the Stub

Shaft and into the Bearing Flange.

18. Apply a drop of Loctite

â

242 to the Keys (Item 19).

19. Press the Keys (Item 19) into the Stub Shaft (Item 11).

NOTE

After assembly is complete, the Stub Shaft should be

rotated and checked for smooth operation. If drag is

apparent, move the Stub Shaft in and out to release

pressure on the bearing cage and recheck for smooth

operation.

FIGURE 19

62

13

20

63

59

11

19

30

58

35

19

35

Do not remove

this Retaining

Ring.

FIGURE 18

62

Input

Unit

59

34

4

26

33

27

25

63

FMCBE

20

Female Pilot

Assembly

Apply

O-Ring

lubricant.

FIGURE 20

CAUTION

Working with spring loaded or tension
loaded fasteners and devices can cause
injury. Wear safety glasses and take the
appropriate safety precautions.
