4
RYOBI 30
cc
STRING TRIMMERS
MODEL NUMBERS — RY34421, RY34441
Key Service
No. Number Description Qty.
1 940726013 Expand-it Label ................................................................. 1
2 940230132 Warning Decal .................................................................. 1
3 308841002 Curved Shaft Assembly ..................................................... 1
4 120642001 Fastener Kit ....................................................................... 1
5 308052001 Grass Deflector ................................................................. 1
6 308042002 Spool Retainer (Black) ....................................................... 1
7 310734002 Dual Spool Insert ............................................................... 1
8 310643001 Housing ............................................................................. 1
9 678022001 Spring ................................................................................ 1
10 310412001 Spool ................................................................................. 1
11 309562001 Reel Easy String Head Assembly ...................................... 1
12 518019002 Hanger Cap ....................................................................... 1

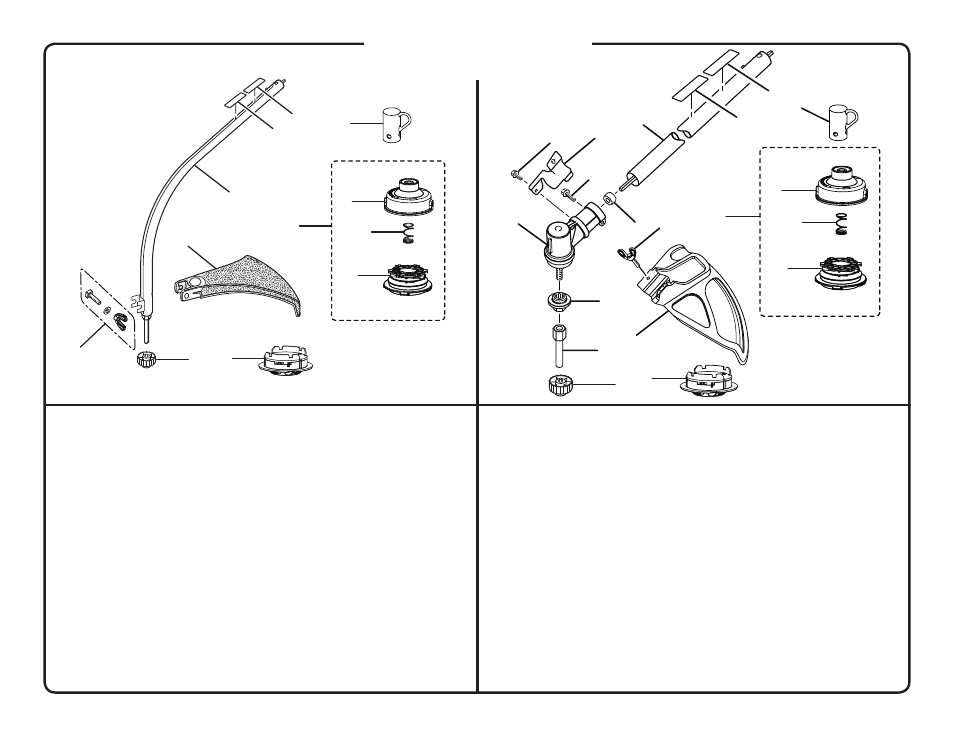

FIGURE B
MODEL
RY34441
Key Service
No. Number Description Qty.
1 940726013 Expand-it Label ................................................................. 1
2 940230132 Warning Decal ................................................................... 1
3 308035013 Straight Shaft Assembly .................................................... 1
4 660736001 Screw (10-24 x 5/8 in.) ...................................................... 1
5 638125001 Clamp ................................................................................ 1
6 518367001 Spacer ............................................................................... 1
7 660642001 Screw (1/4-20 x 1-1/4 in.) .................................................. 1
8 308210002 Gear Head ......................................................................... 1
9 678011002 Flanged Washer ................................................................ 1
10 678019002 Arbor ................................................................................. 1
11 308042003 Spool Retainer (Red) ......................................................... 1
12 310734002 Dual Spool Insert ............................................................... 1
13 308473001 Grass Deflector Assembly ................................................. 1
14 660886001 Wing Screw (1/4-20 x 1-1/4 in.) ........................................ 1
15 518019002 Hanger Cap ....................................................................... 1
16 309562001 Reel Easy String Head Assembly ...................................... 1
17 310643001 Housing ............................................................................. 1
18 678022001 Spring ................................................................................ 1
19 310412001 Spool ................................................................................. 1
FIGURE B
MODEL
RY34421
5
11
12
1
2
3
4
6 7
10
9
8
6
5
4
7
8 14
9
13
2
1
10
11 12
3
15
16
17
18
19
