Display – Fluke 117 User Manual
Page 6
114, 115, and 117
Users Manual
4
Display
VoltAlert
11
7
17
18
12
13
14
9
6
5
4
3
2
1
16
15
8
10

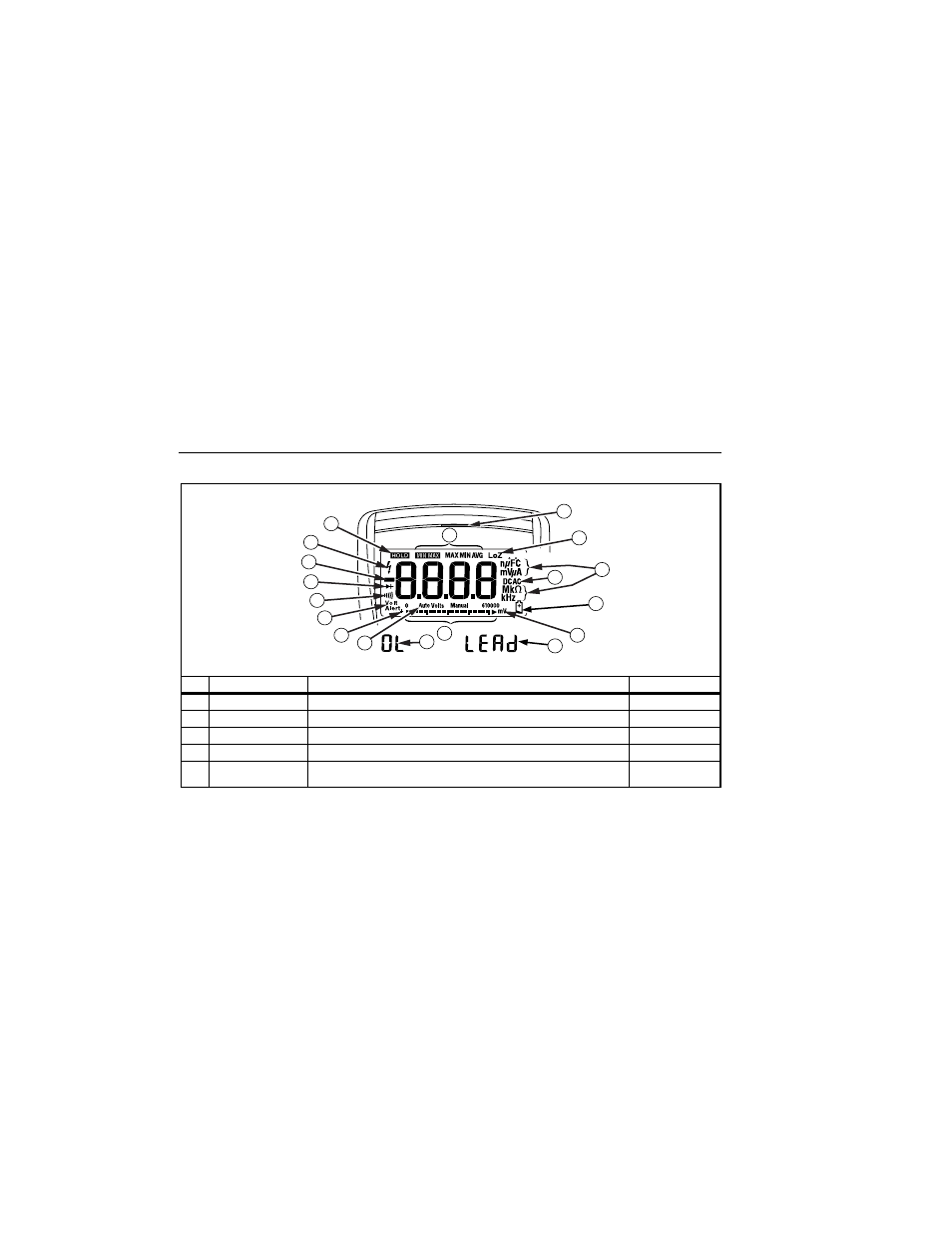

edy02f.eps
No. Symbol
Meaning
Model
A
w
The Meter is in the VoltAlert™ non-contact voltage detect mode. 117
B
s
The Meter function is set to Continuity.
114, 115, & 117
C
R
The Meter function is set to Diode Test
115 & 117
D
O
Input is a negative value.
114, 115, & 117
E
Y
X Unsafe voltage. Measured input voltage
≥30 V, or voltage
overload condition (OL).
114, 115, & 117
