15
TAB 5 TAB 4 TAB 6 TAB 8 TAB 7 English TAB 3 TAB 2
C
ONNECTING
O
THER
E
QUIPMENT

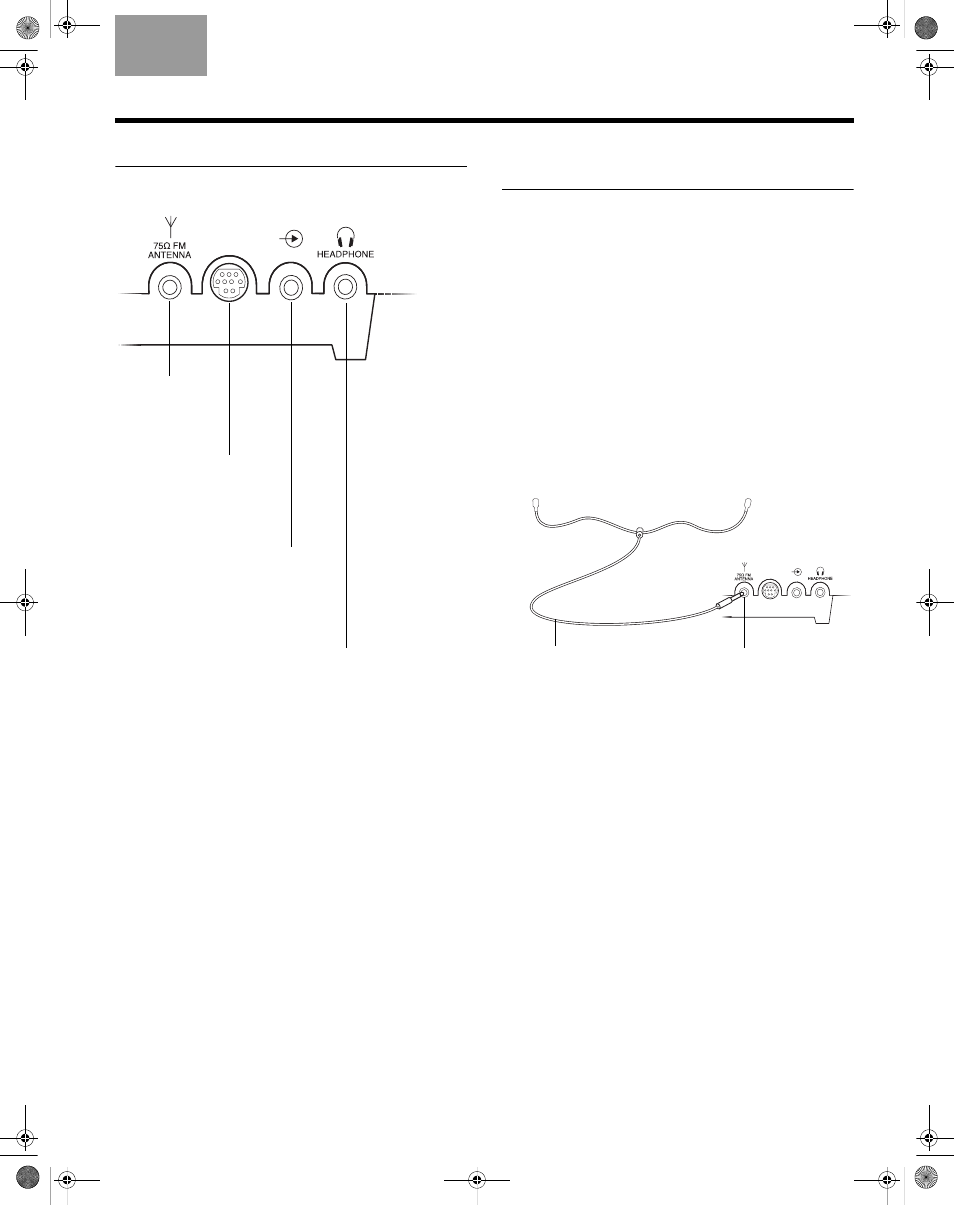

Rear panel inputs/outputs
The rear panel of your Wave ® music system provides
connections for external equipment.
Bose link
AUX IN
EXTERNAL
75 Ω FM
ANTENNA
A 3.5 mm ( 1 / 8
" )
FM antenna
connector.
Bose ® link
connector
For the
SoundLink TM
adapter
connection.
AUX IN
A 3.5 mm ( 1 / 8
" )
stereo input
connector
for external
sources.
HEADPHONE
A 3.5 mm ( 1 / 8
" ) stereo
headphone connector.
When headphones are
connected, the Wave
®
music system speakers
are muted.
Connecting an external FM
antenna
The Wave ® music system power cord includes a built-in
FM antenna. If you experience poor reception after
adjusting the position of the power cord, you may need
to use an external FM antenna. An external FM dipole
antenna can be ordered through Bose Customer
Service. See the phone numbers listed inside the
back cover of this guide.
To connect an external FM antenna:
1.
Plug the 3.5 mm ( 1 / 8
") plug of the FM antenna into the
75
Ω
FM ANTENNA connector on the rear panel of
your Wave ® music system.
2. Extend the ends of the antenna to establish opti-
mum FM reception.
3. Extend the ends of the antenna as far from the
unit and other external equipment as possible
to establish optimum reception.
Bose link AUX IN
75
Ω
FM ANTENNA
connector
FM dipole antenna
(not included)
