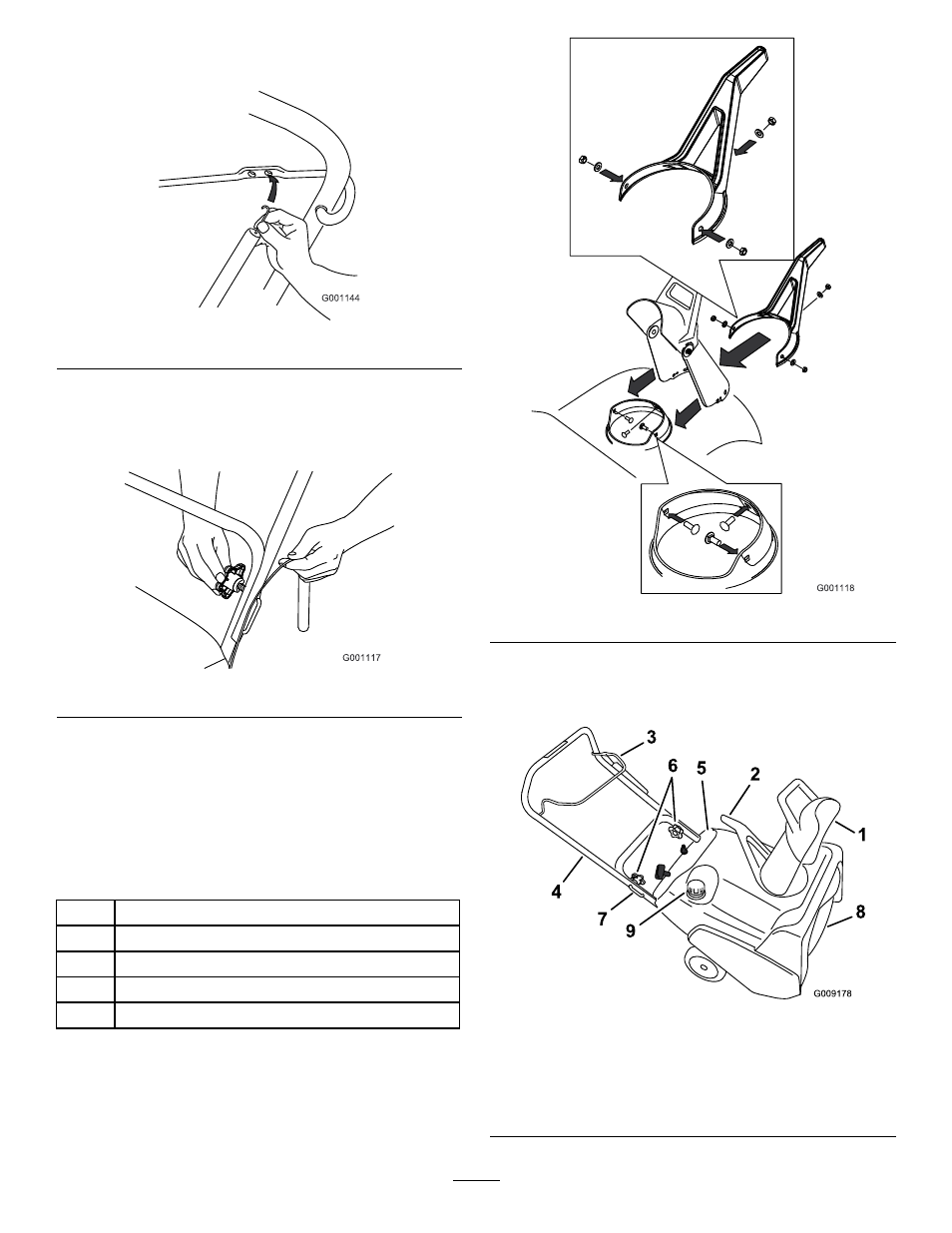

3. Hook the end of the control cable spring into the
bottom hole of the control bar (Figure 4).
Figure 4
4. Fully insert the handle bolts (Figure 5).
Important: Ensure that you do not pinch the
control cable (Figure 5).
Figure 5
5. Tighten the knobs until they are snug.
6. Adjust the control cable. Refer to Adjusting the
Control Cable.
2. Installing the Discharge
Chute
1 Discharge chute
1 Chute handle
3 Phillips head screws
3 Washers
3 Locknuts
Procedure
Install the discharge chute as shown (Figure 6).
Figure 6
Product Overview
Figure 7
1. Discharge chute 6. Knobs
2. Chute handle 7. Handle bolt (2)
3. Control bar 8. Rotor blades
4. Handle 9. Fuel tank cap
5. Control panel
6
