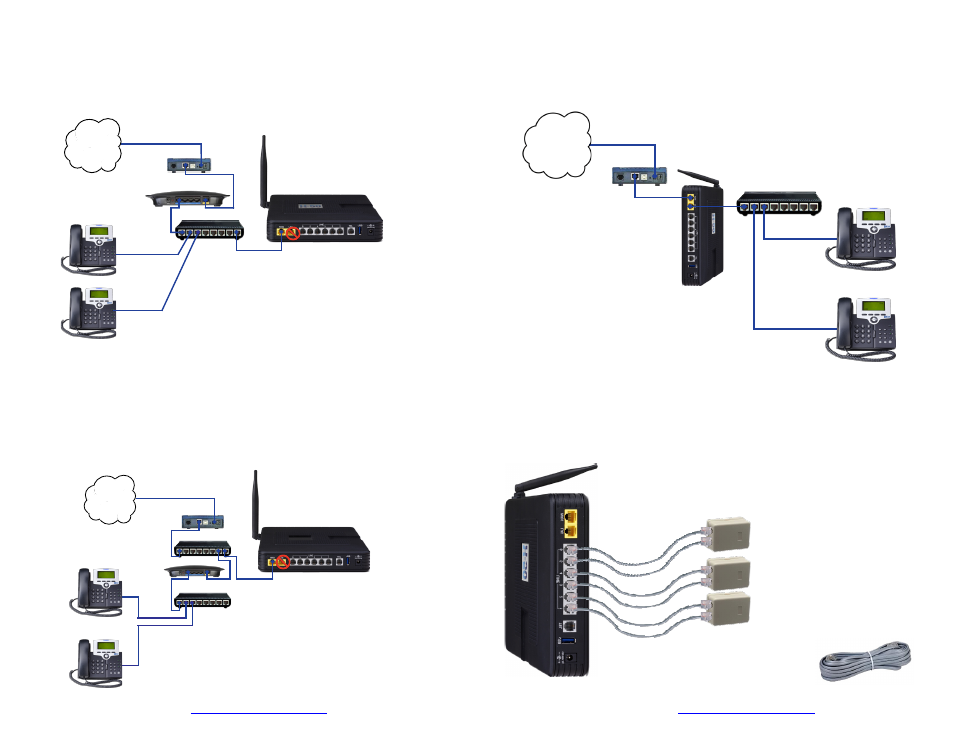

Best choice when connecting to an Existing network:
Connect the WAN port of your X-50 to your existing network,
leaving the LAN port unconnected after using it for the initial
installation programming.
ISP
Existing Router
Network Switch
Internet
Network Configuration Choices
Best choice with an Existing Network and Remote Phones:
Obtain a static IP address from your Internet Service Provider
(ISP). Connect the WAN port of your X-50 to a dedicated
network switch (purchased separately) and enter the Static IP
address in the WAN programming of the X-50.
ISP
Existing
Router
Network Switch
Internet
Network Switch
Internet
ISP
Network Switch
Using the X-50 as a Router and Connecting Remote Phones:
Obtain a static IP address from your Internet Service Provider
(ISP). Connect the WAN port of your X-50 to the ISP Modem and
use the LAN port to connect all of your phones and computers.
Connecting Telephone Lines:
You can connect up to six (6) analog (standard or PSTN)
telephone lines to your X-50. Connect one line to each port, in
the order that they will ring 1 - 6. You can also take advantage of
XBLUE
Networks
Low Cost premium
SIP telephone lines
which are provisioned
right over your
Internet Broadband
Connection.
Use the provided line
cords to connect the
telephone lines to the
X-50.
Line 1
Line 2
Line 3
Line 4
Line 5
Line 6
Telephone
Company
