Best choice when connecting to an Existing network:
Connect the WAN port of your X-25 to your existing network,
leaving the LAN port disconnected after using it for the initial
installation programming.
ISP
Existing Router
Network Switch
Internet

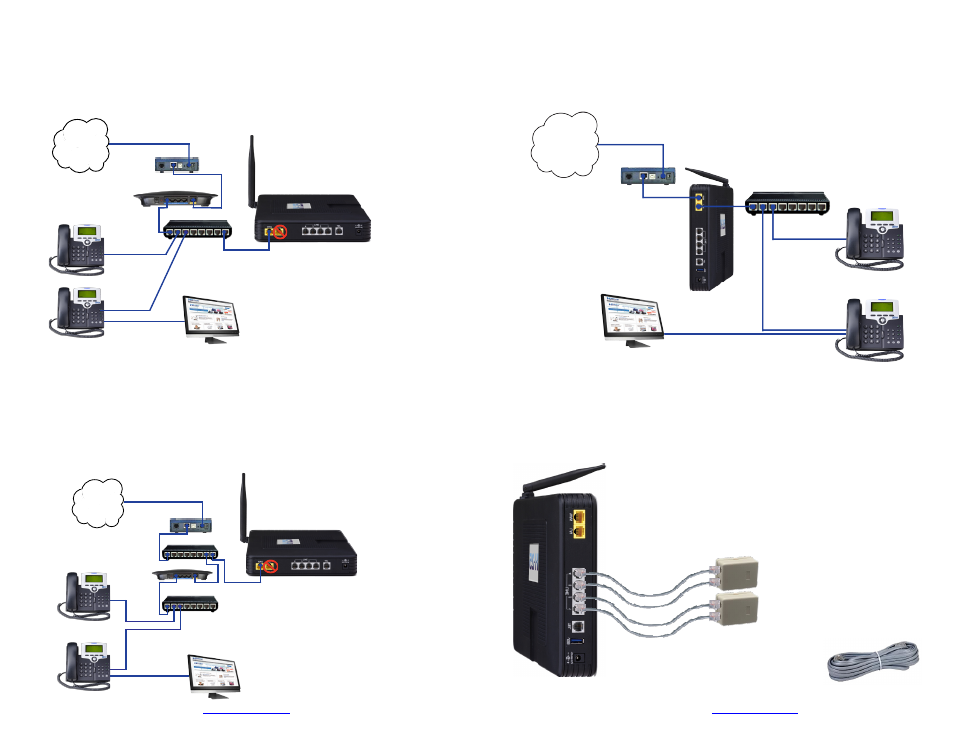

Network Configuration Choices
Best choice with an Existing Network and Remote Phones:
Obtain a static IP address from your Internet Service Provider
(ISP). Connect the WAN port of your X-25 to a dedicated network
switch (purchased separately) and enter the Static IP address in
the WAN programming of the X-25, without connecting the LAN.
ISP
Existing
Router
Network Switch
Internet
Network Switch
Product Support is available at
or call 866-925-8312
Internet
ISP
Network Switch
Using the X-25 as a Router and Connecting Remote Phones:
Obtain a static IP address from your Internet Service Provider
(ISP). Connect the WAN port of your X-25 to the ISP Modem and
use the LAN port to connect all of your phones and computers.
Connecting Telephone Lines:
You can connect up to four (4) analog (standard or PSTN)
telephone lines to your X-25. Connect one line to each port, in
the order that you want them to ring 1 - 4 or take advantage of
XBLUE
Networks’
Low Cost premium
Cloud telephone lines
which are provisioned
right over your
Internet Broadband
Connection.
Use the provided line
cords to connect the
telephone lines to the
X
-25.
Line 1
Line 2
Line 3
Line 4
Telephone
Company
In this configuration some
modems require “Bridge” or
“Concurrent Bridge Mode”,
if this is necessary (WAN
registration fails) contact your
ISP. The X-25 will authenticate
directly to the ISP.
The X-2020 telephone is also
a “Layer 2” network switch. This
allows you to plug your existing
data cable into the telephone and
then connect from your telephone
to your computer. Allowing
you to use your current network
configuration.
