Vortech 1999-2001 Ford 5.4L/6.8L Super Duty/SUV User Manual

Page 23

P/N: 4FT020-010

02AUG04 v2.1(99-03SuperDuty(4FT v2.1))

10. MOUNTING BRACKET BRACKET & SUPERCHARGER INSTALLATION, cont’d.

11. AIR INLET ASSEMBLY

J. Thread the 1/8" NPT x #4 x 90

fitting into the oil

feed fitting on the supercharger. Rotate the
fitting down. Connect the oil feed line to the #4
fitting and tighten. Use only clean engine oil on
the oil feed fittings threads.

K. Secure the oil feed line away from heat and

abrasion with the provided tie wraps.

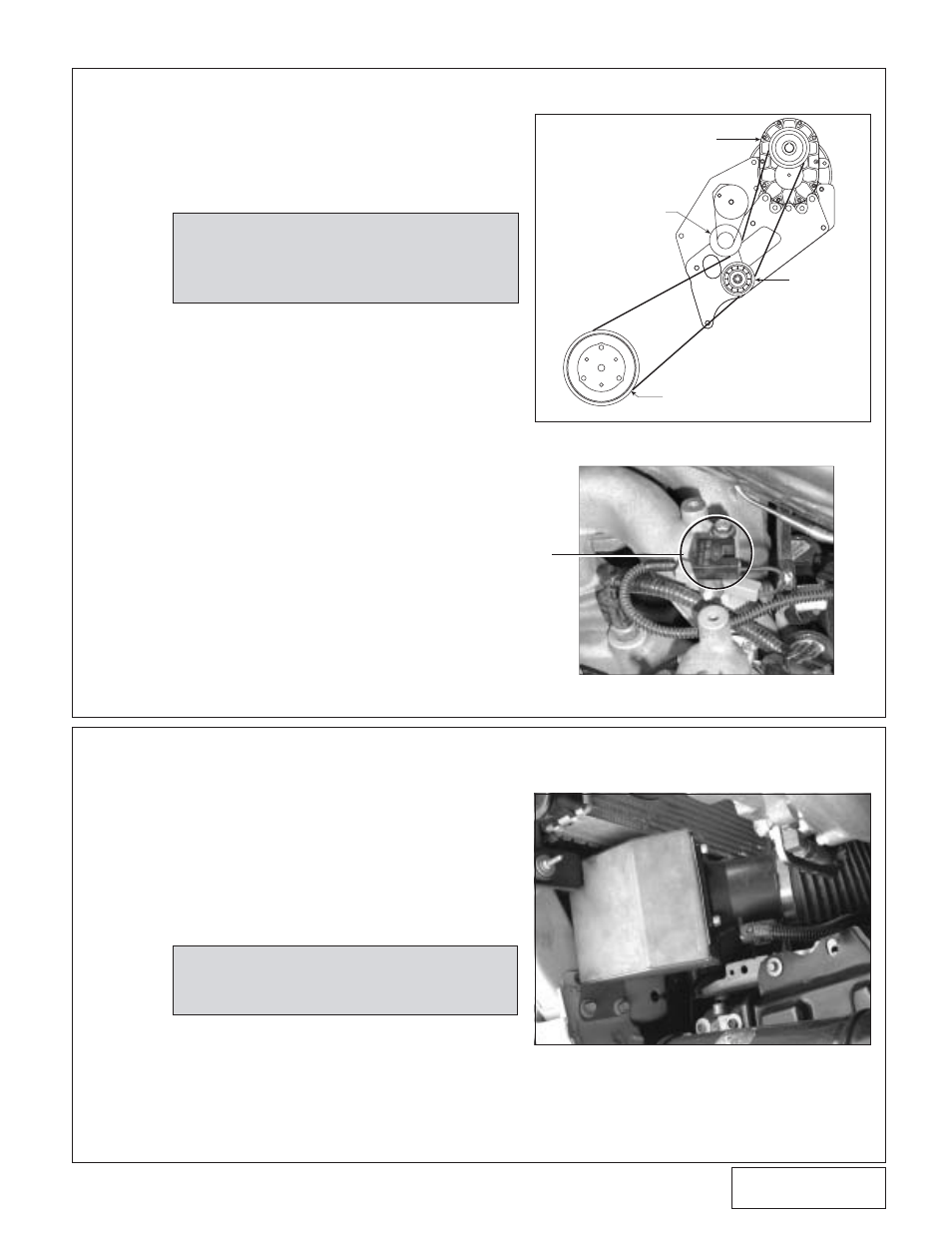

L. Route the supplied supercharger drive belt

around the crank pulley, supercharger drive
pulley and grooved idler. Using a 1/2" drive
breaker bar, rotate the spring tensioner clock-
wise and align the belt. (See

Fig 10-d.)

M. Relocate the capacitor (previously attached to

the upper front cover mounting stud) to one of
the screws securing the water neck or upper
manifold. (See

Fig 10-e.)

A. Attach the MAF meter to the MAF bracket using

the supplied 1/4” hardware. Slide the air filter
onto the tube of the MAF bracket. Using a 5/16”
nut driver or socket, reach in through one of the
Ø5/8” holes and tighten the hose clamp. Cover
the holes with the provided finishing plugs.

B. Install the MAF assembly onto the driver’s side

of the core support using the factory hardware.
(See

Fig. 11-a.)

C. Reconnect the MAF wiring connector to the

MAF meter.

D. Install the Ø3.5” x 2” silicone sleeve and #56

hose clamps onto the supercharger inlet. Install
the cast aluminum inlet duct into the silicone
sleeve and tighten the hose clamps.

NOTE:

The thick rubber mat may need to be unsnapped and

folded over toward the radiator to allow proper mount-

ing of the MAF assembly.

Fig. 10-d

Fig. 10-e

See Appendix A-6

for detail view.

SUPERCHARGER

TENSIONER PULLEY

IDLER PULLEY

CRANK PULLEY

CAPACITOR

Fig. 11-a

NOTE:

Do not use any type of sealant on the oil feed fittings. It

may become dislodged and clog the oil feed orifice, caus-

ing premaature failure of the supercharger and voiding

your warranty.
