Vortech 1991-1995 5.2L/5.9L Dakota/Ram - Manual (Page 16)

10

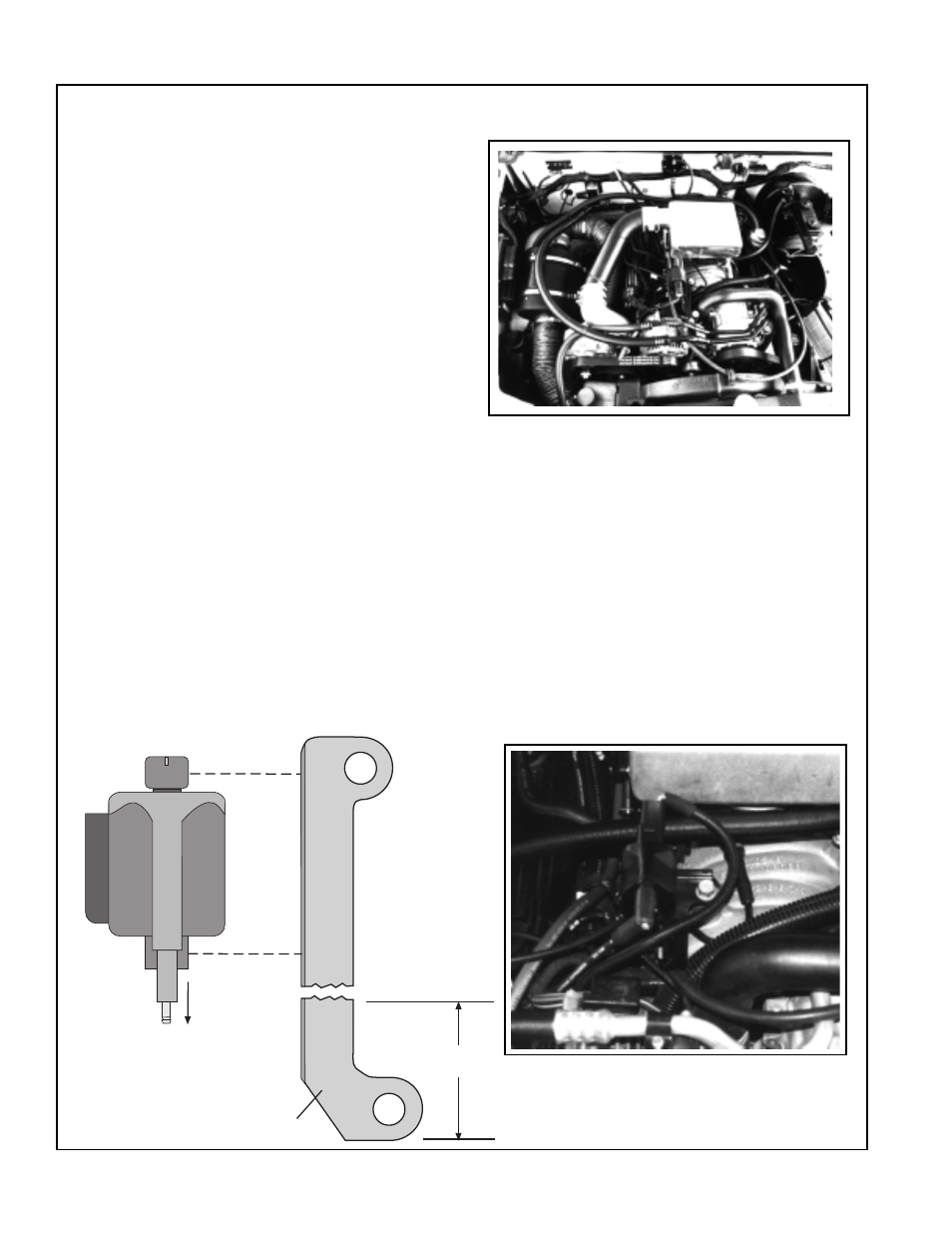

11B. IGNITION COIL RELOCATION (1994-96 Models only)
CUT OFF AND DISCARD
FRONT OF
VEHICLE
APPROX.
1-3/4"
11A. IGNITION COIL RELOCATION (1991-1993 Models)
A. Remount the ignition coil on top of the intake
manifold between the alternator and the
plenum as shown.
B. Using the 1/8" thick bracket and the 3/8" nut
and washer on the existing front stud and the
existing bolt at the rear secure in place.
C. Carefully reroute the coil wire and secure with
tie wraps.
A. Remove the coil from the mounting bracket
and modify the bracket as shown. Remount
the coil to the bracket 180
°
from the original
position (with the plug lead towards the front of
the vehicle).
B. Attach the coil assembly to the threaded boss
on the intake manifold using the existing
alternator brace bolt.
