Installation/ connections – SoundMax SM-CDM1050 User Manual
Page 4
4

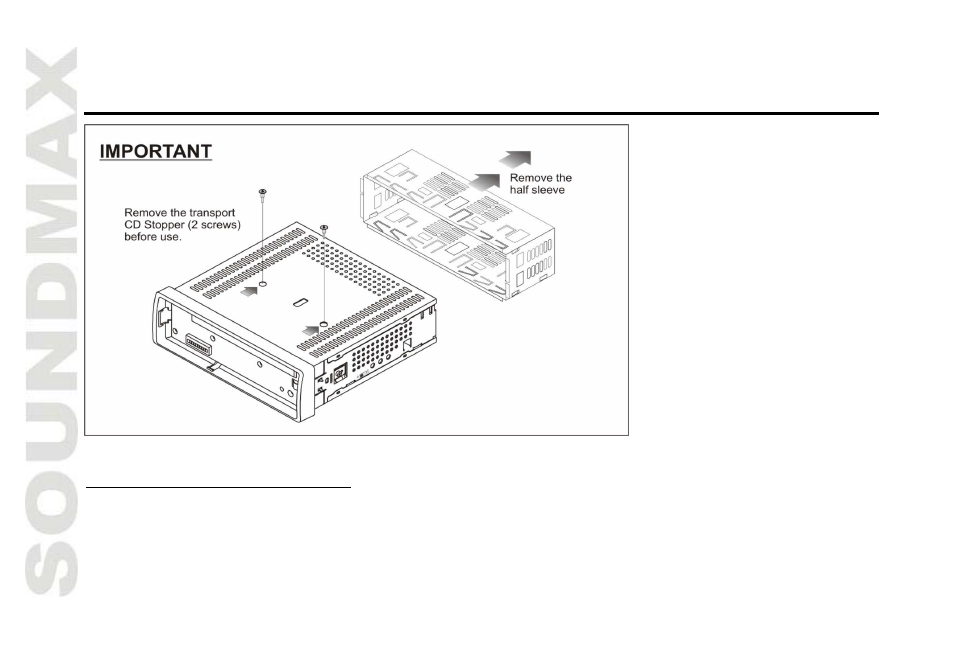

Installation/ Connections
Din front-mount (method 1)
After inserting the holder into the dashboard, select the appropriate tab and bend them
inwards to secure to the place
Insert fingers into the groove in the front of frame and remove it.
Insert the levers supplied with the unit to the grooves at both sides. The unit can be
installed or removed from the dashboard.
