SPEAkER-LEVEL CONNECTIONS
Figure 3 shows an easy way to connect your Velodyne subwoofer directly to your receiver or
integrated amplifier, if it lacks line-level outputs. You may also connect your satellites directly to
your receiver or amplifier along with the subwoofer. Your receiver or amplifier will not notice the
additional load of the subwoofer due to the high input impedance.

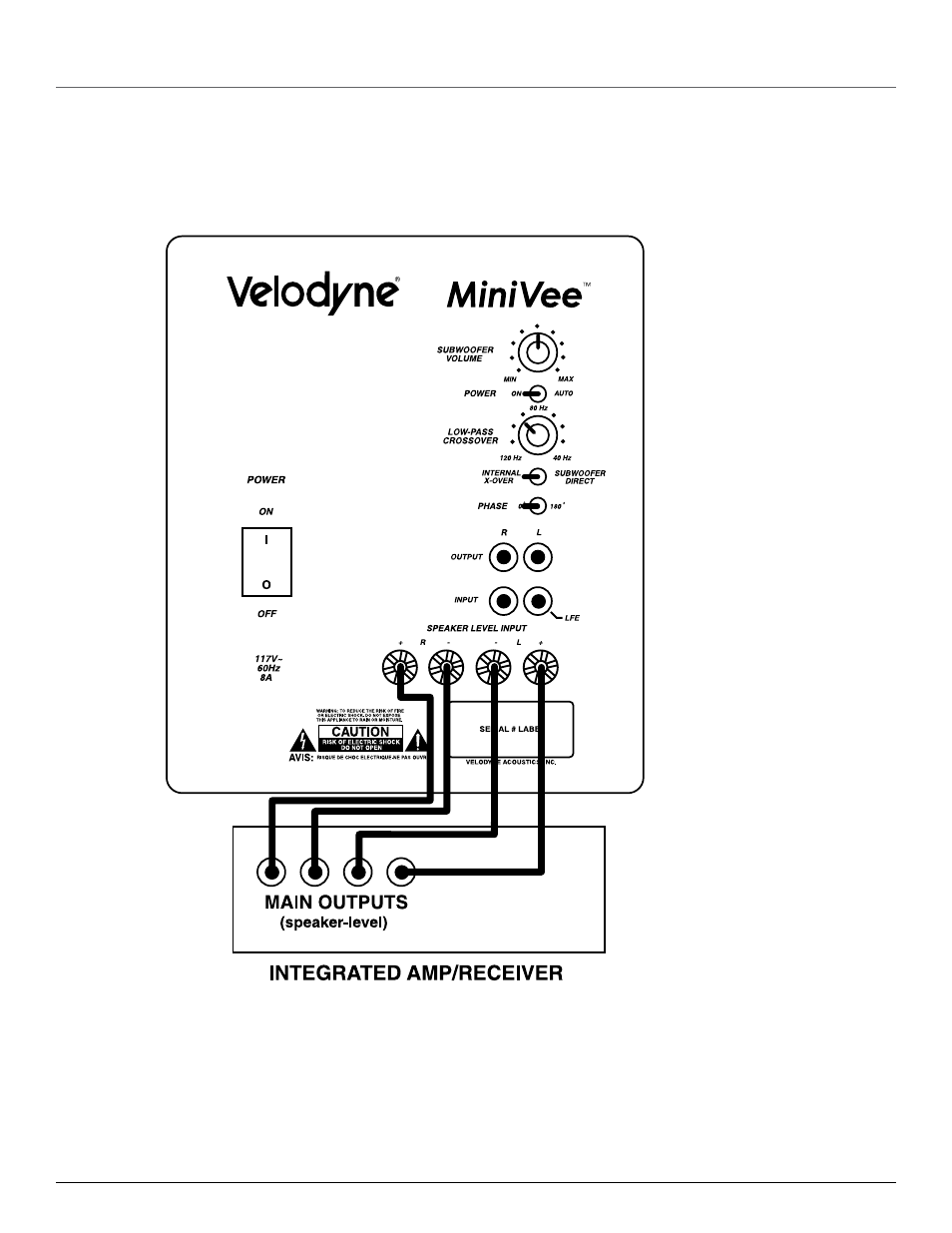

Figure 3. Installation Using Speaker-Level Inputs
Caution!!! To avoid damage to your main amplifier, be sure to maintain correct polarity when making all
connections. Red (positive) to red, and black (negative) to black. Be sure that all connections are tight,
and that there are no loose strands or frayed wires.
