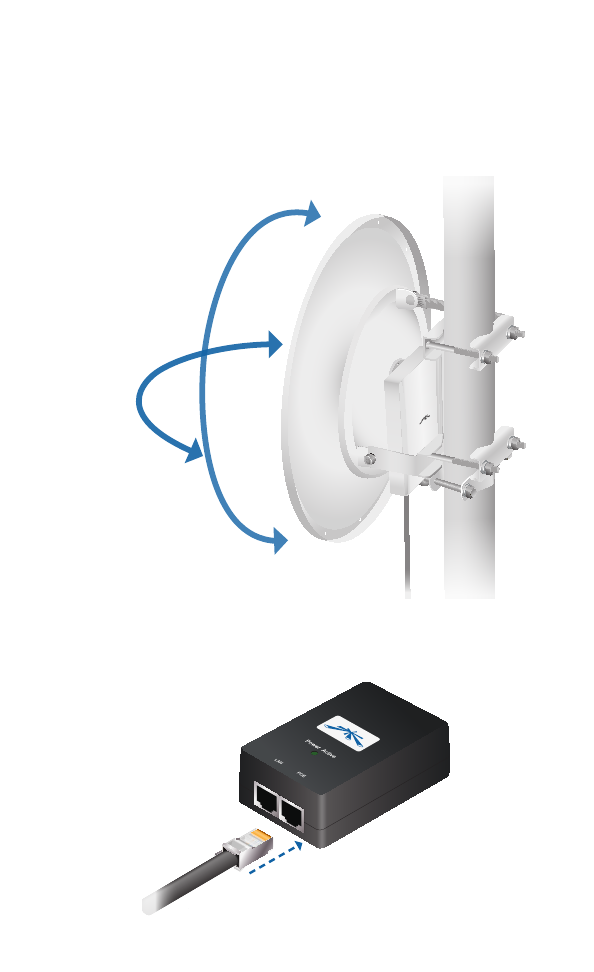

11. Adjust the Azimuth and Elevation. Azimuth can be
adjusted by rotating the antenna while supported by the
stabilizer bracket. Elevation is adjusted by loosening the
Elevation Rod. Tighten all bolts and nuts to approximately
50 N-m (37 lb-ft) or less to avoid deforming the pole.
Elevation
Azimuth
12. Connect the other end of the Ethernet cable from the
Radio to the Ethernet port labeled POE on the PoE Adapter.
