AdjustIt 3 - Stand
2
8
Mount the board to the stand:
a
Use four screws and four washers to attach the board shelf to the bottom of the central structure.
DO NOT COMPLETELY TIGHTEN.
b
Use two screws and two M8 washers to attach the handle to the central structure.
c
Mount the appropriate board:
DualBoard
a
Place the DualBoard over the center lip.
b
Use two screws and two M6 washers to attach the
DualBoard brakes from the central structure to the
top of the board.
Touch Board
a
Attach the Touch Board brakes to the board.
NOTE
For 78 in. boards, place the brakes
facing up. For 88 in. boards, place
the brakes facing down.
b
Place the Touch Board on the board shelf.
c
Attach the brakes to the central structure.
d
Push the board shelf back to secure the board from kicking out.
e
Tighten the board shelf screws.
f
If necessary, use the handle to adjust the board height. Lift the handle up to raise the board. To lower the board,
lift the handle and push down on the board shelf.

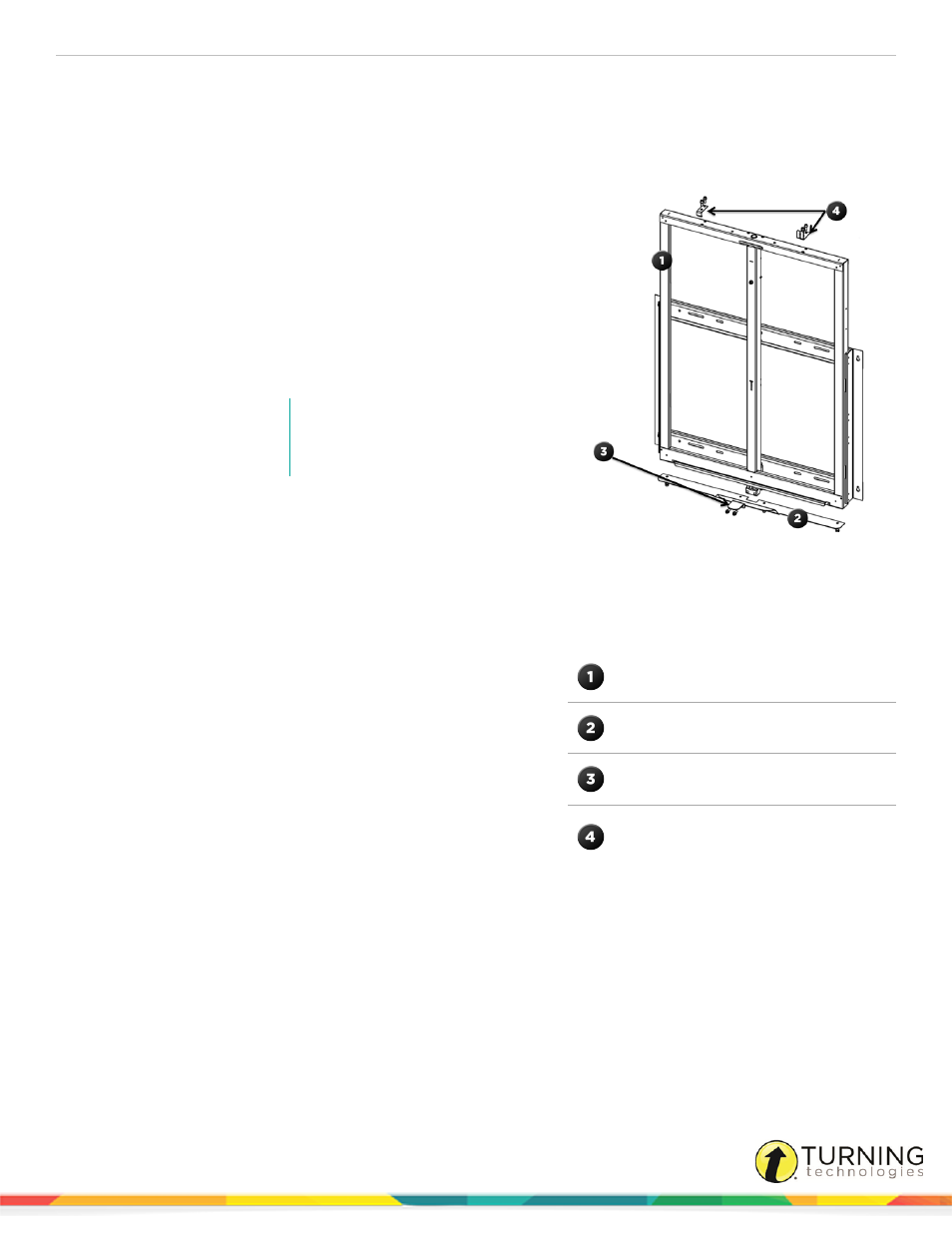

(1) Central Structure (Wall Stand)
(1) Board Shelf
(1) Handle
(2) Brakes for DualBoard
(2) Brakes for Touch Board
