MOUNTING CABRAC TO THE TRUCK
CabRac INSTRUCTION MANUAL 7 TracRac Inc. 994 Jefferson Street, Fall River, MA 02721-4839 * 800-501-1587
CAUTION: TracRac strongly recommends the following
step be completed with the help of another person.

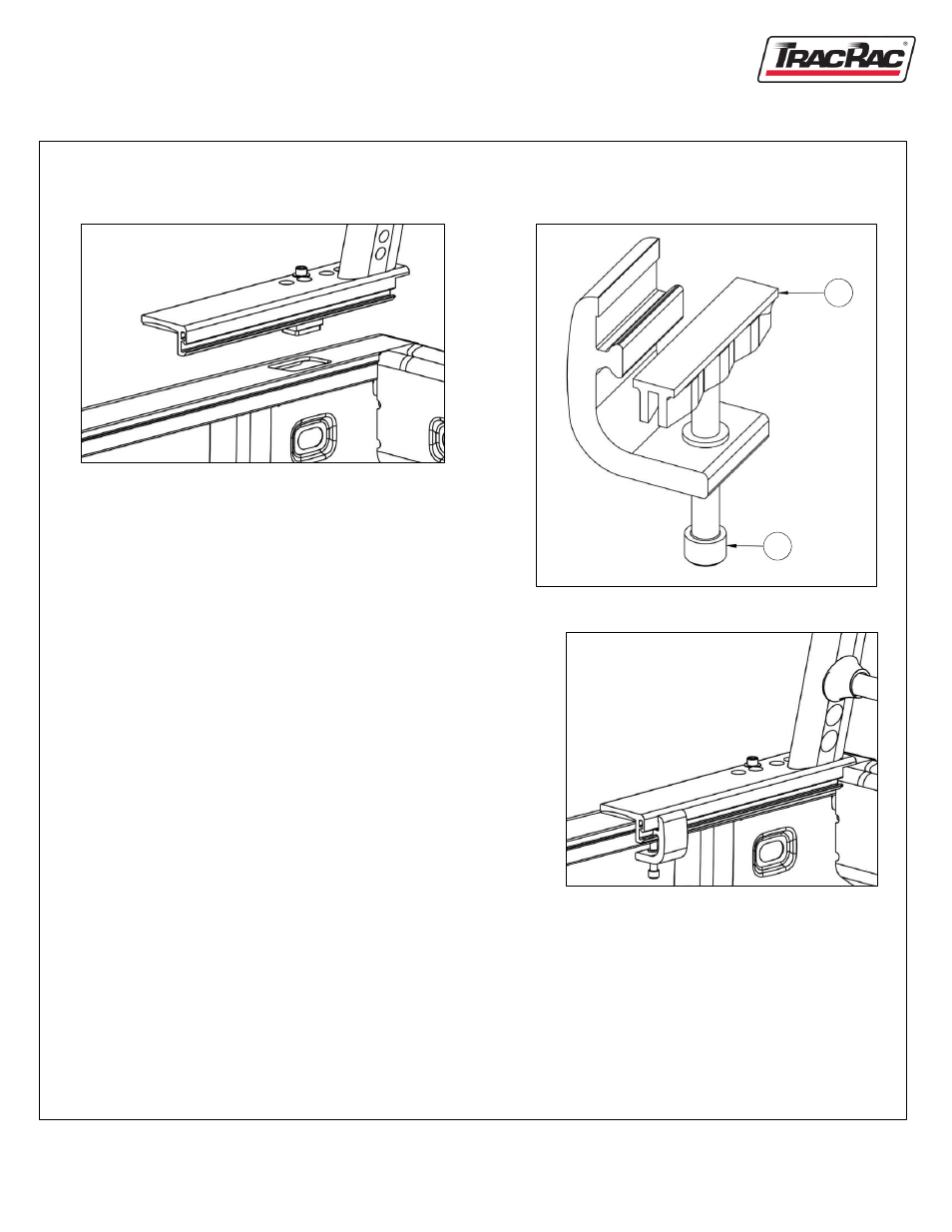

1. Lift the assembled CabRac and mount it to the truck bed
side walls by inserting the rubber expansion blocks into
the stake pockets. Secure rubber block by tightening the
3/8"-16 screw using the 5/16" Allen wrench. Reference
Figure 6. Torque to 160 in/lbs.
7
6
Figure 8.
Figure 9.
2. Next you will need to build two of the L-Rail clamps by taking a clamp
assembly and partially threading in the 3/8"-16 x 3.0" socket head
cap screw (Item 6). Once completed place the 3" U-Channel (Item 7)
on top of the 3/8" screw as shown in Figure 9.
3. Take the assembled clamp and insert it onto the matching dovetail
located on the CabRac base one inch from the end, as shown, tighten
using a5/16" Allen Wrench. Reference Figure10. Torque to 270 in/lbs.
4. Repeat for opposite side.
5. Go through all bolted connections and ensure that they all are fully
secured and tightened to the recommended torque.
Notes:
For good performance and safety, we recommend re-torquing all clamps and fasteners to the proper specifications after
the first 500 miles and every 5000 miles thereafter.
Carrying high loads over rough roads with excess speed may damage the system on your truck. Exercise good judgment
at all times.
Please call us with questions or concerns: 800.501.1587 or email: [email protected]
Figure
10.
