TracRac Inc. 994 Jefferson St. Fall River, MA 02721 l 800-501-1578 Instruction Manual
Remove the plastic end-caps from the factory installed rails, front and back. 1.
Take the Tacoma Tool Box Mount Clamp and partially thread a 3/8”-16 hex head cap screw through 2.
the tapped hole located on the bottom of the clamp.
Slide two clamps into each factory installed rail from the back end of the truck and replace the rear 3.
end-caps.
Slide three clamps into each factory installed rail from the front end of the truck and replace the 4.
front end-caps.
With the clamps retained in the track now slide 2 of them on each upright base, with the base 5.
in the desired location place a 3” U channel on top of the hex head caps screws. Reference the
placement of the uprights from the included installation book.
Place a rubber shim and tool box shim under the two remaining clamps in the front along with a 6.
7/8” U channel on top of the hex head caps screws.
Torque the hex head cap screws down to 14 lb-ft using a 9/16” open end wrench. 7.
Follow the remaining steps in Toolbox Installation directions on page 1. - 41000. 8.
The 3” U Channel and 3/8”-16 Hex Head Cap Screw are included with the original rack hardware. •

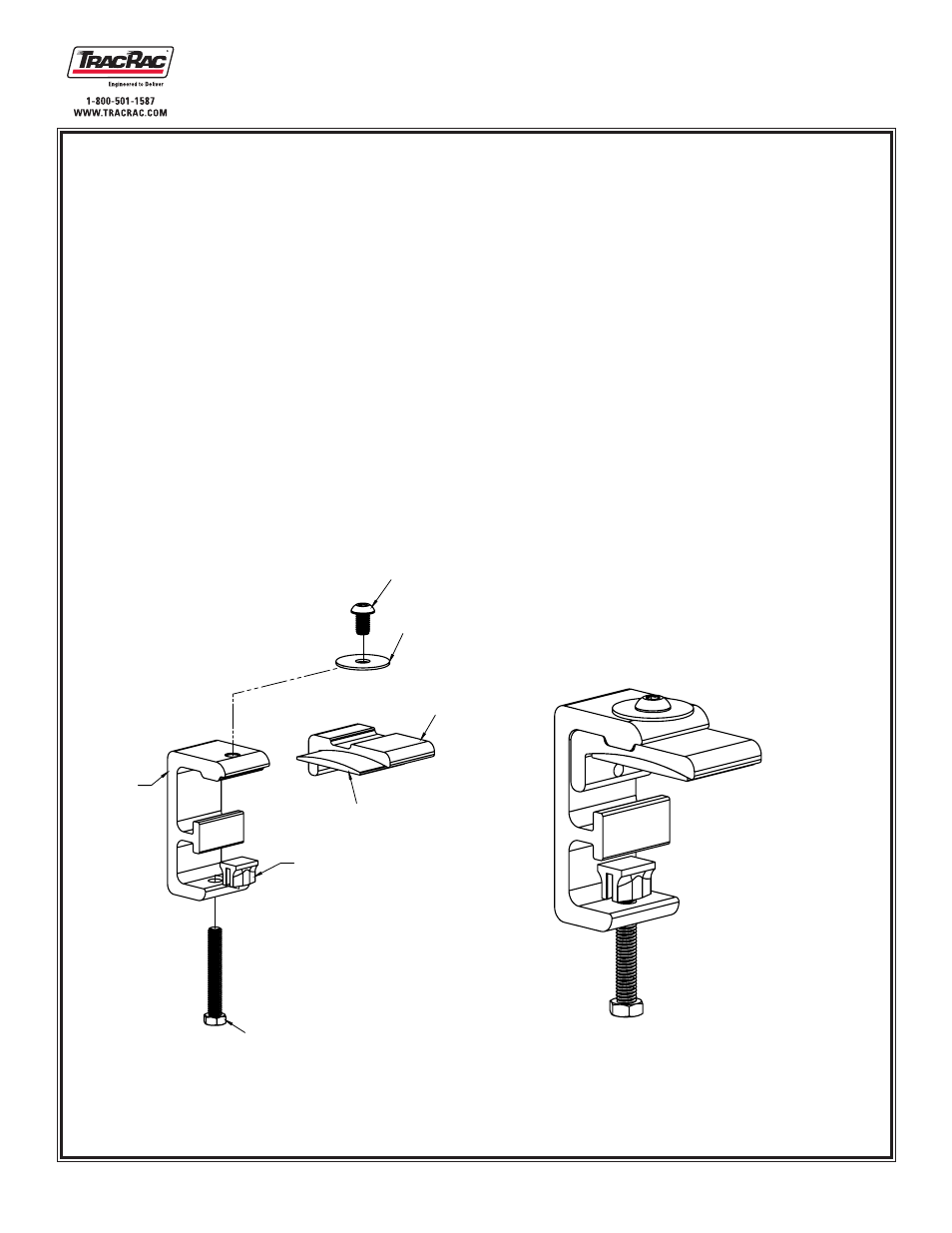

Button Head
Cap Screw
3/8 Washer
Aluminum
Shim
Plastic Shim
U-Channel
Hex Head
Cap Screw
Tacoma
Clamp
When Complete
Toyota Tacoma Toolbox Installation - 41500
