Signal Flow.
I N S E R T C A R T R I D G E
The Z-DSP contains two distinct audio channels,
labeled Left (also “1”) and Right (also “2”). The
terminology of “Left” and “Right” is most commonly
used for stereo effects like Delay and Reverb, while
“Channel 1” and “Channel 2” would be used in
applications that deal with more diverse names such
as Carrier and Signal in a ring modulator.
The Z-DSP is truly stereo, no summers allowed! Each
channel is built from a distinct audio input , feedback
input, processing block, audio output and feedback
output.

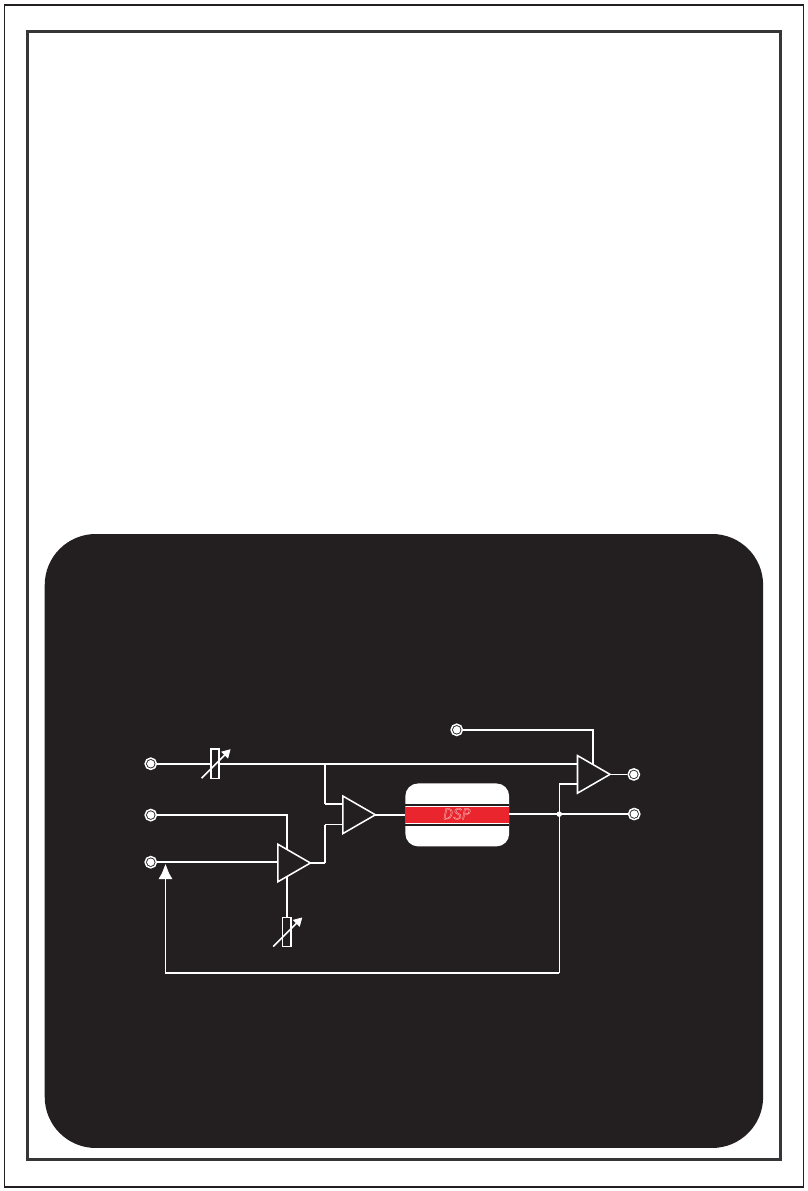

FEDBK OUT
OUT
VCA
MIX
FEDBK IN
AUDIO IN
VC
VC MIX
FEEDBACK
GAIN
DSP
MIX
SINGLE CHANNEL IS SHOWN
