SETTING UP YOUR ULTRA SPEAKERS CONNECTION OPTIONS
POWER AMPLIFIER
TO
RIGHT SPEAKER
SPEAKER LEVEL
OUTPUTS
POWER AMPLIFIERS
SPEAKER LEVEL
OUTPUTS
SPEAKER LEVEL
OUTPUTS
POWER AMPLIFIER
SPEAKER LEVEL
OUTPUTS
TO
RIGHT SPEAKER

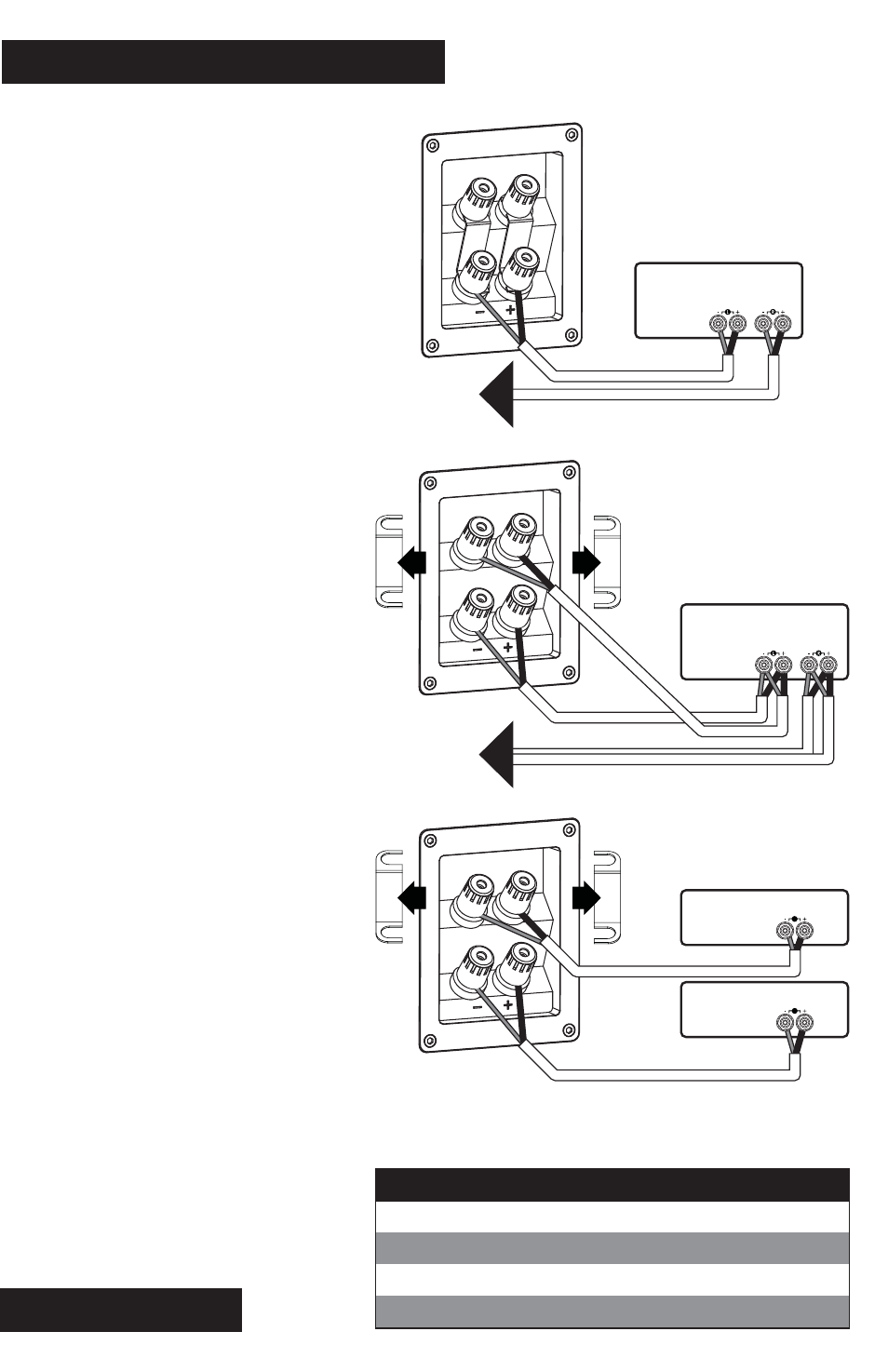

Conventional Wiring
All Ultra Speakers ship ready for
conventional wiring. With the
jumper straps in place, attach
each Ultra Speaker to a separate
amp channel from your
receiver/power amplifier.
Bi-wiring
To Bi-wire any of the Ultra
Speakers, first remove the
jumper straps that come
pre-installed on the terminals.
With straps removed each pair
of binding posts can be
attached to THE SAME amp
channel of your receiver/power
amplifier.
Bi-amping
To Bi-amp any of the Ultra
Speakers, first remove the
jumper straps that come
pre-installed on the terminals.
With straps removed each pair
of binding posts can be
attached to SEPARATE amp
channels of your
receiver/power amplifier.
SPEAKER WIRE - GAUGE/LENGTH RECOMMENDATIONS
18 gauge (AWG)
16 gauge (AWG)
14 gauge (AWG)
12 gauge (AWG)
< 10ft
< 25ft.
< 50ft.
< 75ft.
