SETTING UP YOUR ULTRA SURROUND SURROUND MODES (cont’d)
10

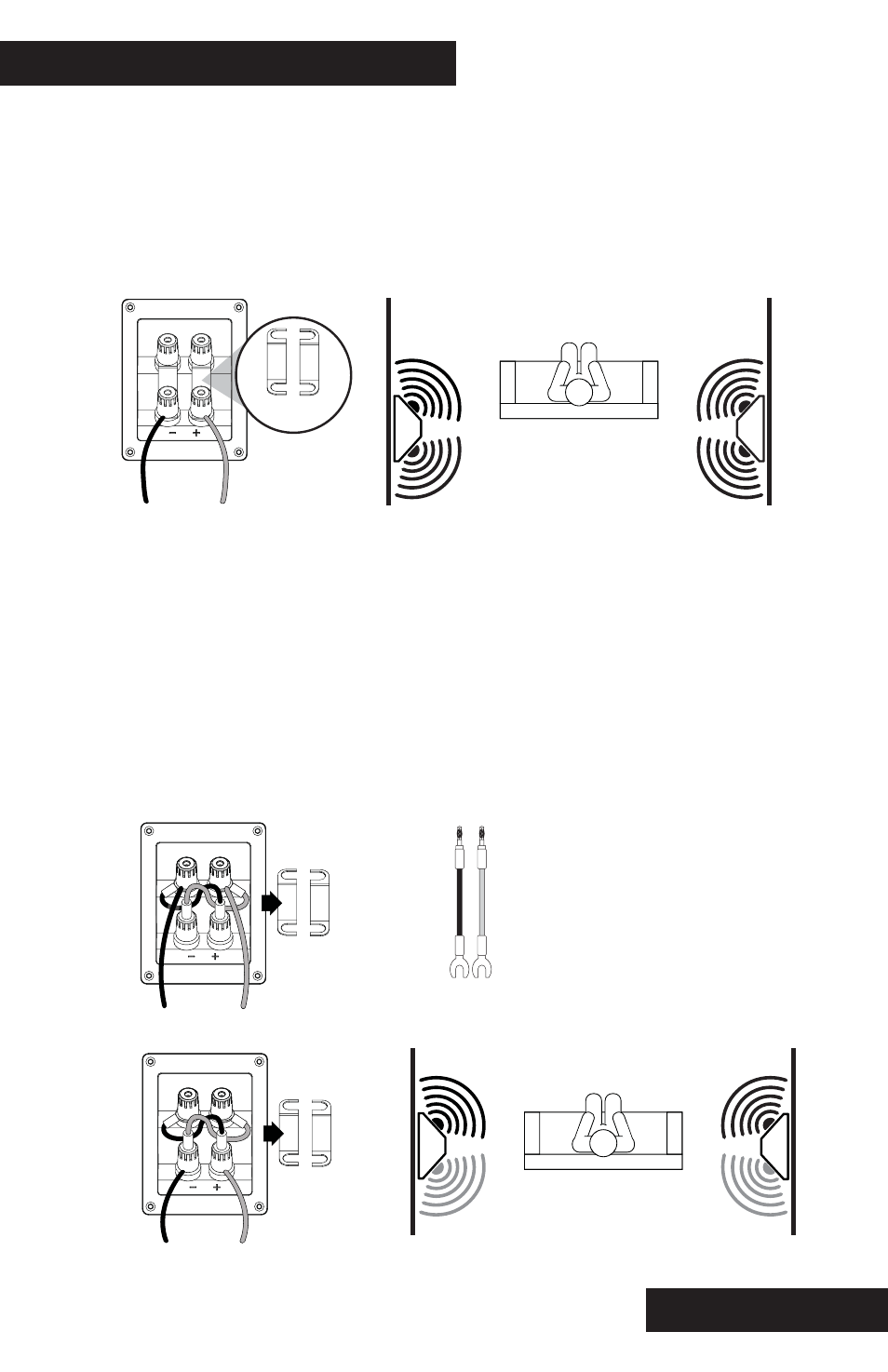

Bipole Mode
Bipole mode is the factory default configuration. For bipole configuration, perform the
following steps:
• Attach the jumper straps as shown in the below diagram.
• Connect the amplifier wires to the lower (Duet 2) binding posts.
Dipole Mode
For dipole configuration, perform the following steps:
• Remove the jumper straps (failure to do so could damage the amplifier).
• Install the dipole wiring kit as shown in the below diagram.
• For the right surround channel, connect the amplifier wires to the lower (Duet 2) binding posts.
• For the left surround channel, connect the amplifier wires to the upper (Duet 1) binding posts.
Straps must be
attached
DIPOLE CABLE KIT
RIGHT Surround
(connect to lower binding posts)
Remove
Straps
LEFT Surround
(connect to upper binding posts)
Remove
Straps
