SETTING UP YOUR ULTRA SPEAKERS

ROOM PLACEMENT (cont’d)

Center Channel Placement
The center channel should be equidistant between the main speakers, and

directly under the video display. To the extent possible, try to match the

tweeter height of the center channel with the tweeter height of the main

left/right speakers. Avoid placing the center channel too close to the ceiling

or floor, as this will cause boundary reflections and degrade the sound

quality.
Surround Speakers
Placement recommendations will vary depending on the specific channel in

question and also the overall surround sound configuration. Below are some

general height guidelines and also lateral placement diagrams for various

surround sound configurations.
Side and Rear surround speakers should be placed 2-3 feet above head level

when seated.
For more assistance on surround setups greater than 7.0, contact our Sound

Experts at www.svsound.com or (877) 626-5623.

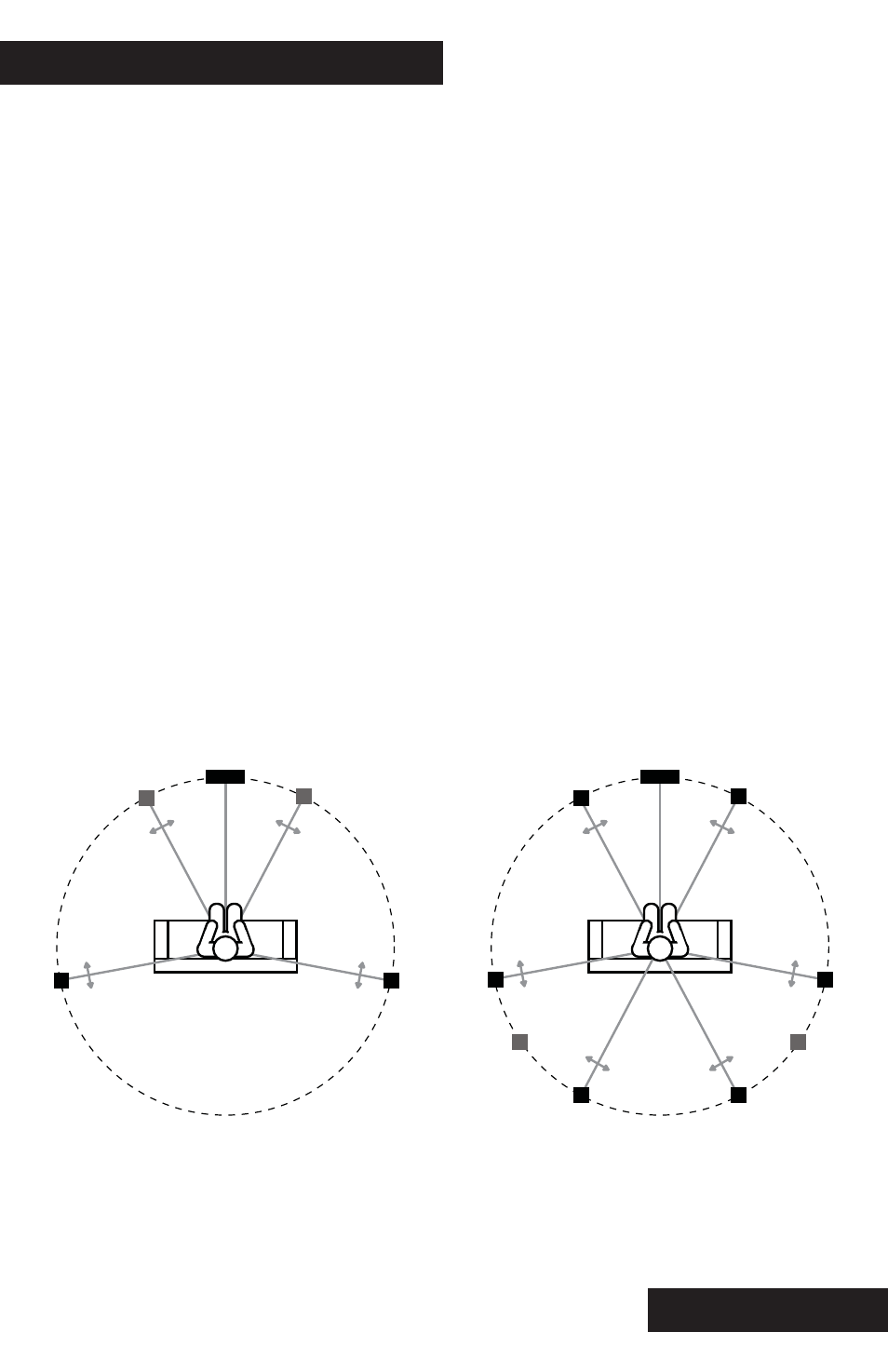

TYPICAL

STEREO

OR 5.0 SPEAKER

PLACEMENT

22°

22°

30°

30°

90°

90°

110°

110°

DUET MODE

SURROUND

DUET MODE

SURROUND

TYPICAL 7.0 SPEAKER PLACEMENT

135°

150°

135°

150°

22°

22°

30°

30°

90°

90°

110°

110°
