Receiving frame rear panel – StorCase Technology RJR100 User Manual
Page 3
RJR100 Users Guide - Rev. D02
StorCase Technology, Inc.
2

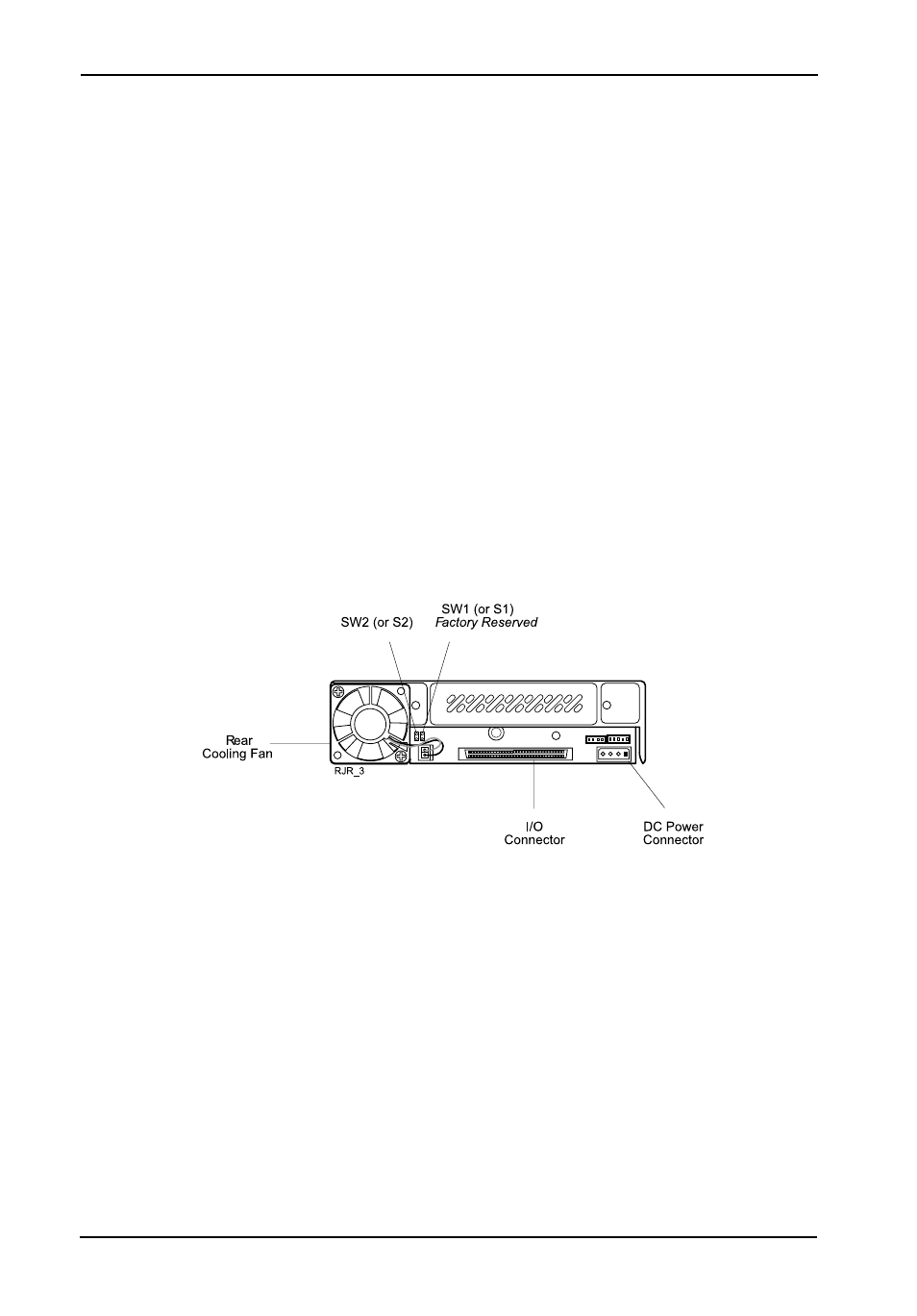

Receiving Frame Rear Panel
Rear Cooling Fan - Fan helps provide ample carrier ventilation.
I/O Connector - The input/output connector provides a standard interface for AT/IDE or
SCSI signals, depending on model.
DC Power Connector - The RhinoJR uses a standard 4-pin power connector to accept DC
power.
SW1 (or S1, depending on model) - Factory-reserved jumper option - Do Not Use!
Chassis Status LED - Provides the following information:
Green
= Power ON (and both fans working properly)
Red
= Fan Failure (If either carrier or receiving fan fails)
NOTE:
An audible alarm will also sound if either of the fans fail.
Front Cooling Fan (Not Shown) - Fan helps provide ample carrier ventilation (located inside
the front of the drive carrier).
NOTE:
Front fan may be manually disabled for special applications. Refer to Front Fan
Alarm Disable SW2 (or S2...) for further information.
