StorCase Technology DS320 User Manual
Page 17
DS320 User's Guide - Rev. B02
StorCase Technology, Inc.
Installation
9
5.
Connect the I/O cable(s) to the drive(s). Verify that the Pin 1 indicator on the cable
is properly aligned (refer to the drive manufacturer's documentation for more infor-
mation).
6.
Connect the 4-pin DC power cable(s) from the DS320 to the drive(s).
7.
Reinstall the access panel and fasten all screws.
8.
Connect the AC power cable to the DS320 and turn on power. Should there be any
unusual sound, turn the DS320 OFF immediately. Disconnect the power cable and
remove the access panel to locate the source of the problem.

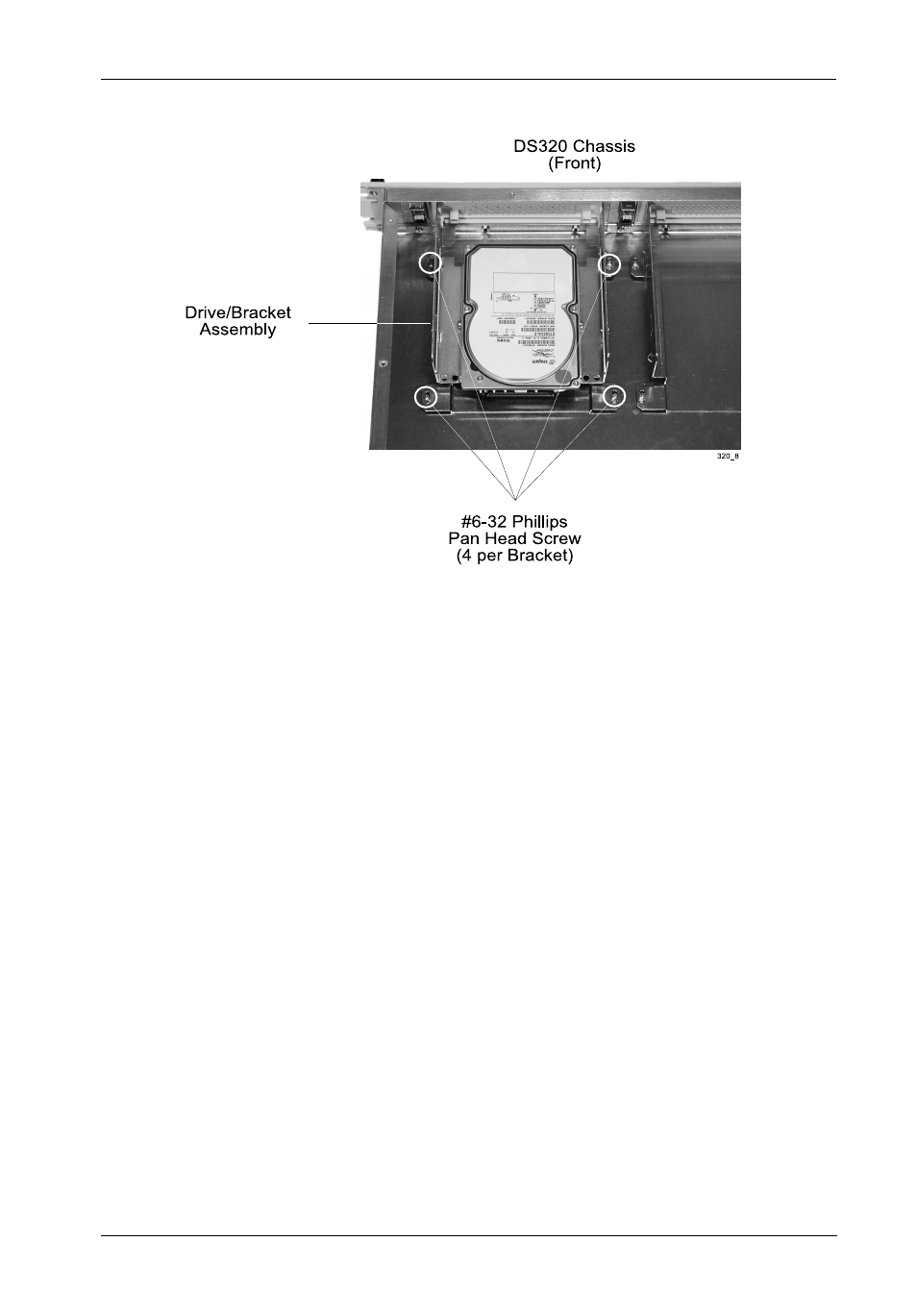

Figure 9: Installing the Drive/Bracket Assembly into the Chassis
