DS320 User's Guide - Rev. B02
StorCase Technology, Inc.
Installation
5
INSTALLATION
Installing the Drive(s) into the DS320
While performing the steps in this section, work on a soft surface to prevent excessive shock
to the drive(s) being installed. Also refer to the manufacturer's documentation provided with
the drive(s).
A #2 Phillips and a flat blade screwdriver will be required.
Removing the Access Panel
WARNING: Remove ALL power from the DS320 before removing the access panel. The
DS320 contains NO USER SERVICEABLE PARTS inside the unit. Refer ALL
servicing to qualified service personnel!
1.
Unplug the DS320 and verify that ALL cables have been disconnected.
2.
Place the DS320 on a soft clean surface to protect the finish of the chassis.
3.
Remove the ten (10) screws located on the top of the unit (Figure 4).
4.
Remove access panel by carefully lifting the panel off the chassis.
5.
To reinstall panel, simply reverse the above mentioned steps.

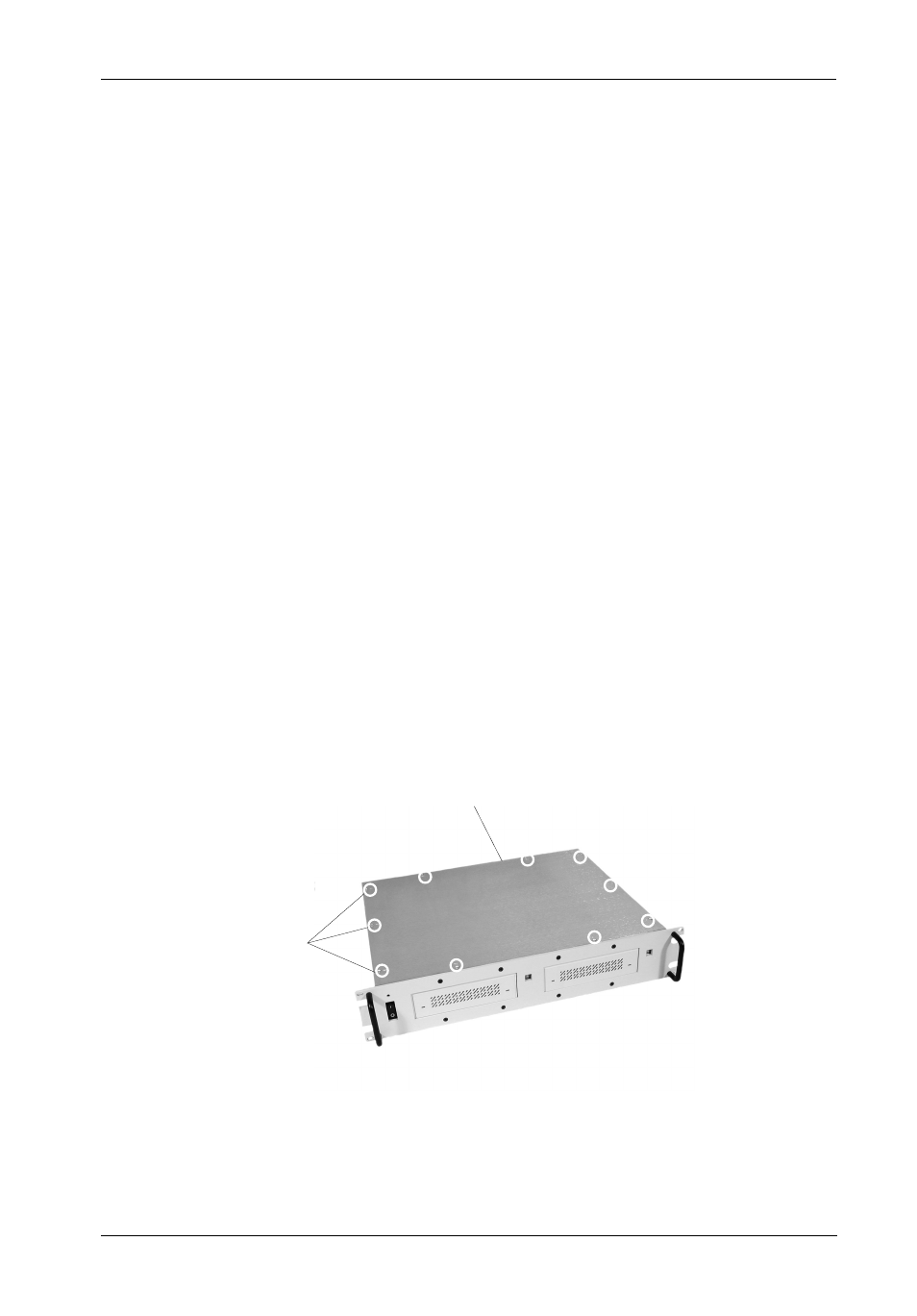

Figure 4: Access Panel
Access Panel
Remove
Screws
(10 Total)
DS320 Chassis
(Front)
320_4
