DX150-ZIPKIT Installation
StorCase Technology, Inc.
DX150-ZIPKIT User's Guide - Rev. A01
0382
Carrier
(Not Included)
Low Profile
Handle
Remove Existing
Open Front Carrier Handle
With the handle fully
extended, remove the two
retaining screws.

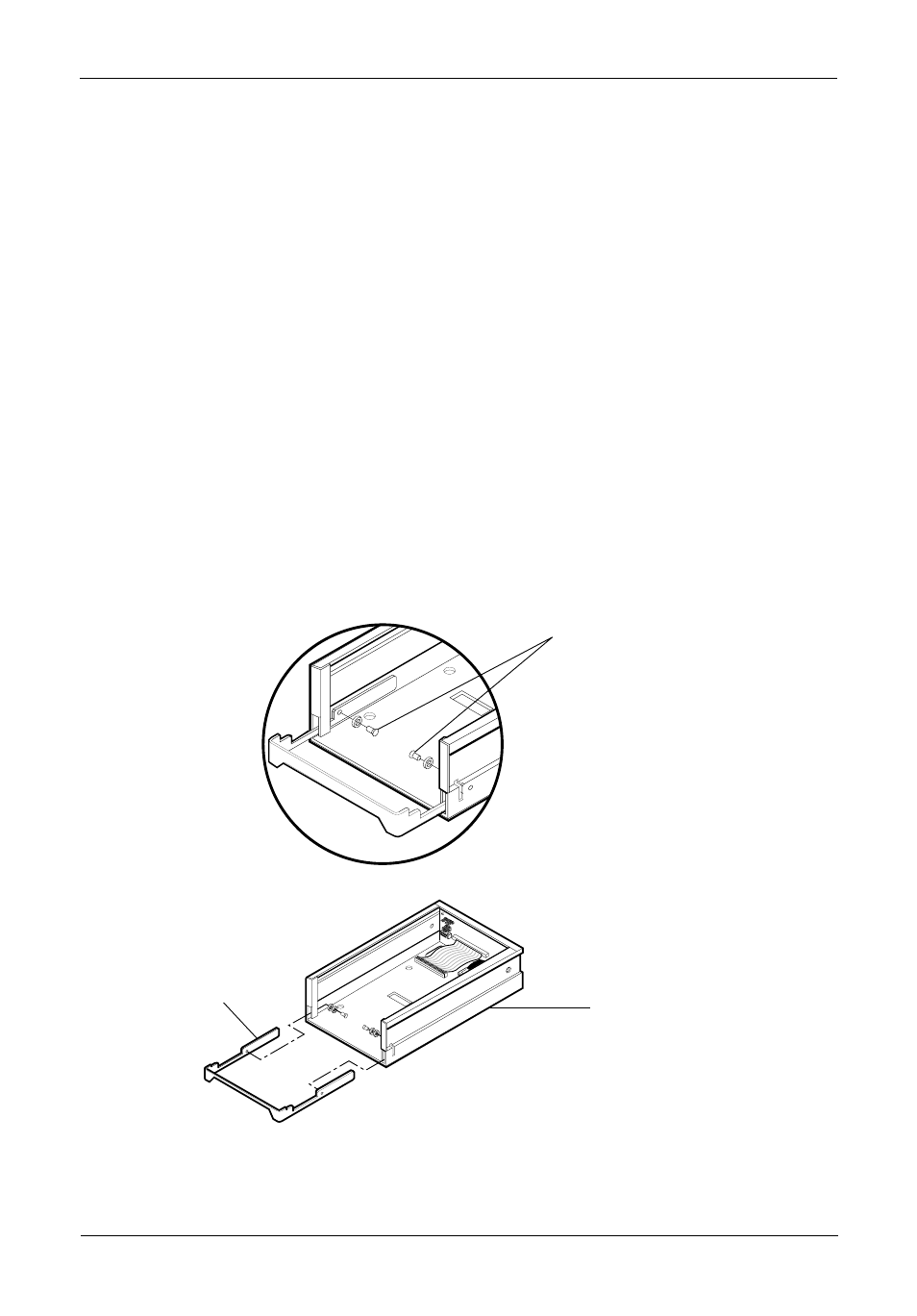

Figure 2: Replacing the Handle
1.
Unpack the DX150-ZIPKIT and compare it with the Illustrated Parts Breakdown shown
in Figure 1 for an overview of the entire assembly to verify that the kit is complete. A
#2 Phillips screwdriver is required to complete the installation.
2.
If installing the DX150-ZIPKIT into a carrier unit that already has an installed drive, remove
the power, I/O and ID select cables from the drive. Remove the drive from the carrier.
3.
Place the Data Express carrier unit on a soft, clean surface to protect the finish. Choose
a suitable area that allows ample working space around the unit.
4.
Remove the handle and replace it with the new low-profile handle included in the kit, as
shown in Figure 2.
Fully extend the existing handle and carefully remove the two (2) #6-32 x .230" retaining
screws with a Phillips screwdriver. Remove and replace the handle with the new low
profile handle (new handle uses two filament washers per screw).
