5
starrett.com

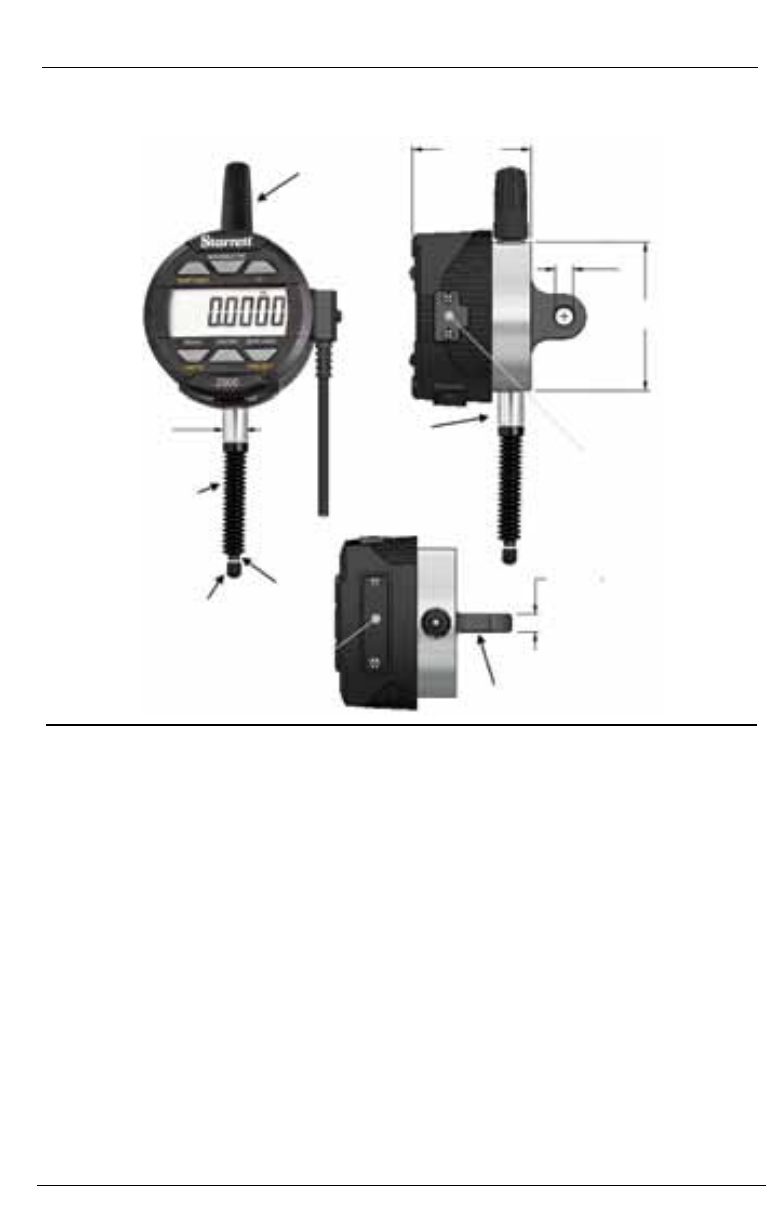

Stem Cap
Data
Cable
Spindle
Bellows
Spindle
Contact Point
Stem
Data
Output
Cover
Battery
Drawer
Back Lug
1-21/32"
(42.2mm)
1/4"
(6.4mm)
1/4"
(6.4mm)
2-5/64" (52.8mm)
3/8" (9.5mm) or
8mm (.315")
Indicator Components, Dimensions & Layout
1. Install batteries (included with indicator).
2. Lightly clean the contact point.
3. Secure the indicator to an appropriate holding device.
4. Press the ON/OFF button (or move the spindle) to turn the indicator on.
5. Select the unit of measure (inch or mm) by pressing the IN/mm button.
ME indicators have this function but standard metric indicator models do not.
6. Place the indicator perpendicular to the reference surface being measured.
Allow enough movement to be able to take a higher or lower measurement.
7. Press the ZERO button to reset the display.
8. Lift the spindle and remove the reference surface. Then, place the work
piece and carefully position the spindle on to its surface. The measured
value will be shown on the LCD.
9. Press and hold the ON/OFF button to turn the indicator off. If left unattended,
it will turn off automatically in 30 minutes.
Operating Instructions
2900 Capacitive Series Indicator User Manual
