SPECIAL 242 SERIES FEATURES
The 242 Series strobe lights have a number of features:
LED Diagnostic Indicator: The 242 contains an LED designed to flash when the strobe
tube should be flashing. If a strobe light is not working,
troubleshooting is simple with this new LED. Simply examine
the circuit when power is applied to it. If the strobe tube is
not flashing, but the LED is flashing, you have a bad strobe
tube. If the LED is not flashing, the circuit is either not
receiving the proper voltage, or the circuit has failed.
Photocell: The 242 has a built-in photocell which will automatically
switch the light to low power during “night” (or low light)
conditions when such a high intensity is not required.
Pattern Select Jumper: The 242 lights have a jumper on the circuit allowing the end
user to select the desired flash pattern. Placing the jumper on
pins 1 and 2 will elicit a quadflash pattern, and placing the
jumper on 2 and 3 will produce a doubleflash pattern.
PARTS LIST
Series Model #
Bulb/Strobe
Tube
Dome
Vinyl
Hood
Clamp
Ring
Magnet Cig Plug
20RHM 2073-795 325-L-* 652 4123 177 (30026-3) 176
20RIM 2073-1195 325-L-* 652 4123 177 (30026-3) 176
20ZIM 2073-94 330-* 386 365-Z 177 (30026-3) 176
200SM (SDM, SQM) 129 300-S-* 652 365 177 (30026-3) 176
200ZM/201ZM Series 129-Z 330-* 386 365-Z 177 (30026-3) 176
203MVM 129-Z 320-* 386 N/A 177 (30026-3) 176
211RM 129-Z 298-* 652 N/A P30019-3 176
240CM (CDM, CQM) 129 295-* 652 N/A 177 (30026-3) 176
240SM (SDM, SQM) 129 297-* 652 N/A 177 (30026-3) 176
241SM (SDM, SQM) 129-R 298-* 652 N/A 177 (30026-3) 176
242CML 129 295-* 652 N/A 177 (30026-3) 176
242SML 129 297-* 652 N/A 177 (30026-3) 176
255TCM 129-BUB 295TC-* 652 N/A 177-3 (30026-1) 176
255TSM 129-BUB 297TS-* 652 N/A 177-3 (30026-1) 176
255HTC 129 295TC-* 652 N/A 177-3 (30026-1) 176
455BHV 2073-795 134-3-* N/A N/A 920-16v 176
9200HM 2073-795 920-3-* P30183-2 N/A 920-16 920-10
9200IM 2073-1195 920-3-* P30183-2 N/A 920-16 920-10
9200SM (SMQ) 3901-7 920-3-* P30183-2 N/A 920-16 920-10
9200HV 2073-795 920-3-* P30183-2 N/A 920-16V 920-10
9200IV 2073-1195 920-3-* P30183-2 N/A 920-16V 920-10
9200SV (SQV) 3901-7 920-3-* P30183-2 N/A 920-16V 920-10
1166H 2073-795 425-* 90059 30165-2 30026-3 30008-18
1166I 2073-1295 425-* 90059 30165-2 30026-3 30008-18
1169HM
(Old Part #1168H)
797 393-* 90068 N/A P30026-9 30008-18
1188HM
(Old Part #1185H)
2073-H27 396-* 90075 N/A P30026-9 30008-18
* = color

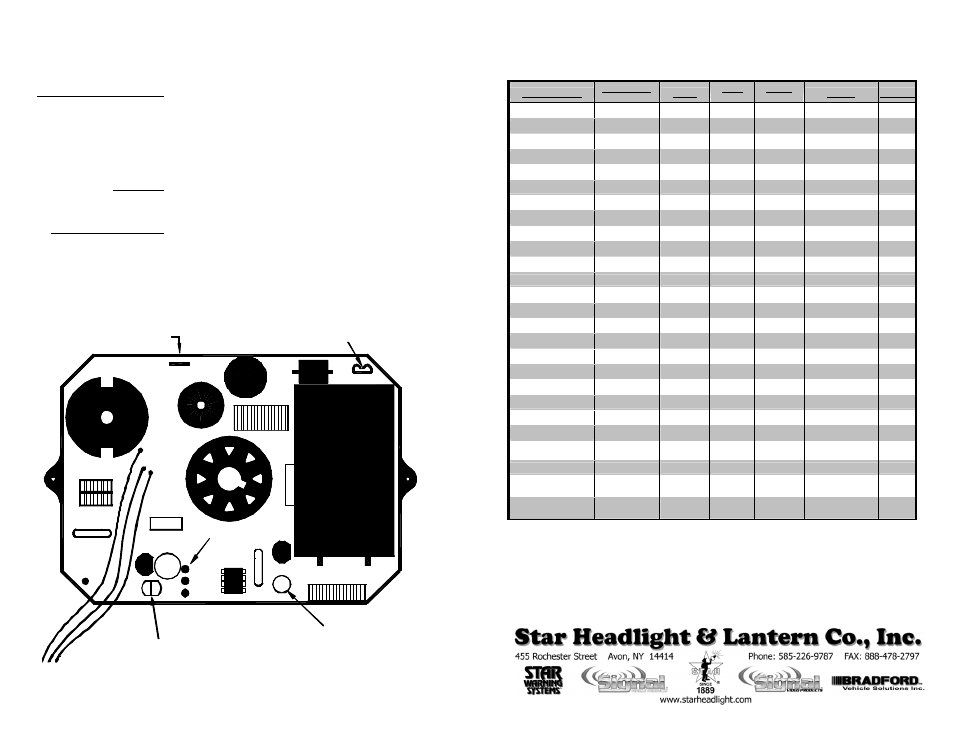

PHOTOCELL
JUMPERS
DIAGNOSTIC LED
1 2 3
FEMALE TERMINAL
(FOR RED WIRE)
MALE TERMINAL
(FOR BLACK WIRE)
S8070-159-9R
