255HTC, 257HTC, and 257HTS Features
Use the Pattern Select Jumper to switch the
operation of the light between doubleflash or
Quadflash.
Quadflash = Jumper on Pins 1 & 2
Doubleflash = Jumper on Pins 2 & 3
The LED indicator is designed to flash when
the strobe tube should be flashing. If a
strobe light is not working when power is
applied to it, but the LED is flashing, you
have a bad strobe tube. If the LED is not
flashing, the circuit is either not receiving the
proper voltage, or the circuit has failed.
There is a built-in photocell which will
automatically switch the light to low power
during “night” (or low light) conditions
when such a high intensity is not required.
257TSG/257TCG and 257TS-2W/257TC-2W Series Programming Options
1. Remove the jumper from pins 1 & 2, momentarily
place it over pins 2 & 3, then remove it. The
pattern should advance to the next.
2. Touch and release the jumper to pins 2 & 3 to
cycle through the patterns:
Singleflash Doubleflash Quadflash
3. Once you have selected a pattern, replace the
jumper on pins 1 & 2.
Use the High/Low Select Jumper to switch the
operation of the light between Low and High Power.
High Power = Jumper on Pins 1 & 2
Low Power = Jumper on Pins 2 & 3

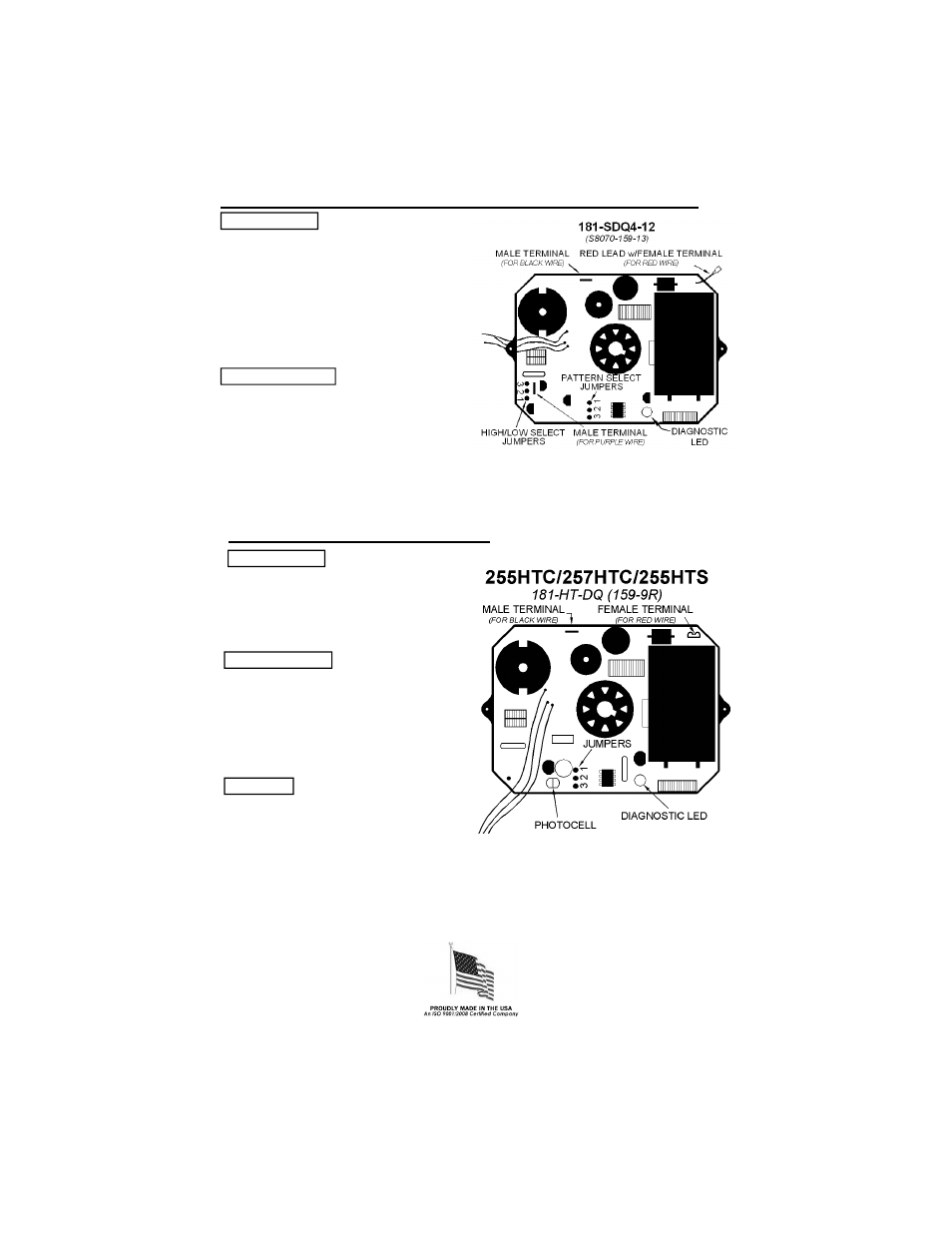

Pattern Select
High/Low Select
Pattern Select
Diagnostic LED
Photocell
