Micro800™ 4 Ch Universal Analog Input Module 6
Publication 0100189-02 Rev. A
Insert Module into Controller
Follow the instructions to insert and secure the plug-in module to the
controller.

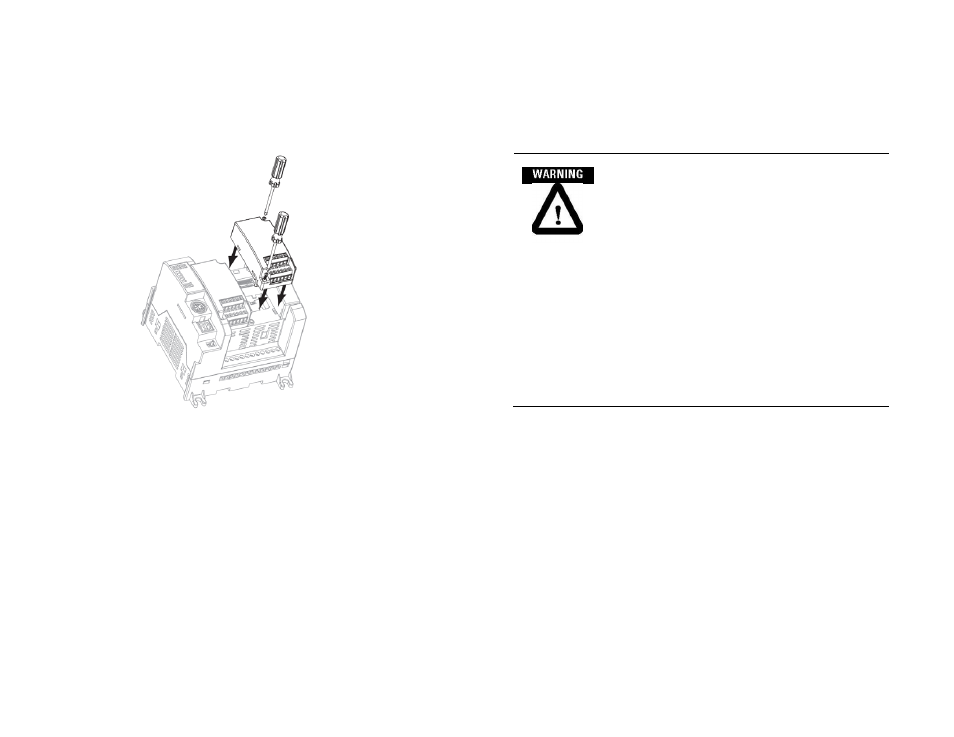

1. Position the plug-in module with the terminal block facing the
front of the controller as shown.
2. Snap the module into the module bay.
3. Using a screwdriver, tighten the 10…12 mm (0.39…0.47 in.) M3
self tapping screw to torque specifications.
Micro800™ 4 Ch Universal Analog Input Module 19
Publication 0100189-02 Rev. A
Hazardous Location Considerations
This equipment is suitable for use in Class I, Division 2, Groups A, B, C,
D or non-hazardous locations only. The following WARNING statement
applies to use in hazardous locations.
EXPLOSION HAZARD
 Substitution of components may impair
suitability for Class I, Division 2.
 Do not replace components or disconnect
equipment unless power has been
switched off or the area is known to be
non-hazardous.
 Do not disconnect equipment unless power
has been removed or the area is known to
be non-hazardous.
 This product must be installed in an
enclosure.
 All wiring must comply with N.E.C. article
501-4(b).
