SkyRC Corner Weight System User Manual
Page 2
SPECIFICATION
Maximum weight of each scale: 2000g
Tolerance: ±0.5g
Power source: 4 x AA batteries (batteries NOT included) or external DC source(6-13.8V).
Main unit dimension (length x width x height): 130.4x104.5x35.3mm
Scale dimension (length x width x height): 59.1x65.1x17.5mm
Net weight of Main unit & 4 scales (not including battery): 354g
Press and hold ZERO button for more then five second, then press ZERO button
repeatedly to adjust
the brightness. After you choose the desire brightness, please wait 8 seconds to save the setting.
HOW TO ADJUST THE BRIGHTNESS OF LED DISPLAY
7504-0447-01
Manufactured by
SKYRC TECHNOLOGY CO., LTD.
www.skyrc.com
RoHS
3/4
4/4
We guarantee this product to be free of manufacturing and assembly defects for a period of one year
from the time of purchase. The warranty only applies to material or operational defects, which are
present at the time of purchase. During that period, we will repair or replace free of service charge for
products deemed defective due to those causes.
For any repair or replace service, please contact your dealer in the first instance, who is responsible for
processing guarantee claims. This warranty is not valid for any damage or subsequent damage arising
as a result of misuse, modification or as a result of failure to observe the procedures outlined in this
manual.
WARRANTY AND SERVICE

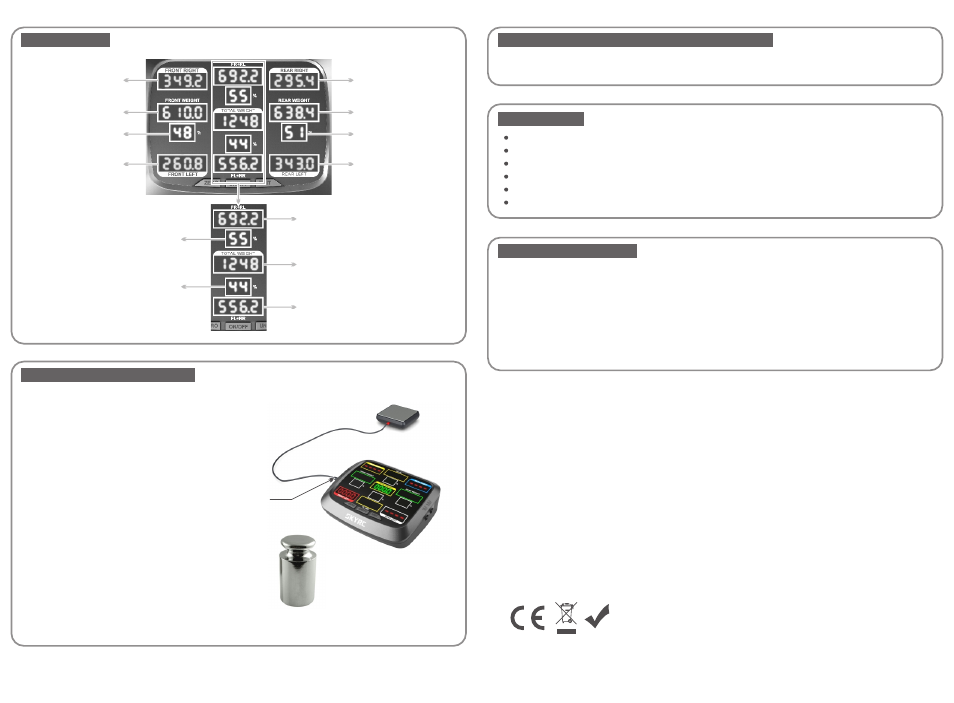

SCALE DISPLAY
HOW TO CALIBRATE THE SCALE
Turn on the scale by pressing
[ON/OFF] key.
Wait until the LCD displays “000.0”
and then press and HOLD [UNIT]
key for 3 seconds. The LCD will
display “CAL”, and then release the
[UNIT] key.
Press [UNIT] key again, the LCD will
display “CAL” followed by the
required calibration weight 2000
grams.
Add the 2000 grams calibration
weight, the display will show “PASS”
and return to normal weighing mode.
Put away the calibration weight and
press [ON/OFF] to turn off the scale
and the calibration is finished!
1.
2.
3.
4.
5.
FL Jack for
Calibration
Calibration Weight
2000 grams
You can calibrate one scale each time. Only FL jack can be used for calibration.
Weight of Rear Right
Total Weight of Rear
Weight of Rear Left
Weight of Front Right
Total Weight of Front
Weight of Front Left
Total Weight
Rear Weight Percentage
Front Weight Percentage
Weight of FR+RL
Weight of FL+RR
Cross-Weight Percentage
FL+RR Weight Percentage
