SkyRC Toro One Cell 120A ESC for 1/12 Car - Manual

NO REVERSE VOLTAGE!
Reverse battery polarity can damage ESC & void warranty. Disconnect battery immediately
if a reverse connection occurs.
INTRODUCTION
INSTRUCTION MANUAL
1)Plan Speed Control Placement
Choose a location for the speed control that is protected from debris. To prevent radio
interference place the speed control as far away from the radio receiver as possible
and keep the power wires as short as possible.Select a location that has good airflow
ventilating. If the ESC gets air flow, it will run cooler; and that means, it will be
more efficient.
WARNING: This is an extremely powerful brushless motor system. We strongly
recommend removing your pinion gear for your own safety and the safety of those around
you before performing calibration and programming functions with this system. Please keep
your hands, hair, cloth, clear from the gear train and wheels of an armed high performance
system.
SAFETY NOTE
1/8
WATER & ELECTRONICS DON'T MIX!
Never allow water, moisture, or other foreign materials to get inside ESC, motor, or on the
PC Boards. Water damage will void the warranty!
DISCONNECT BATTERIES WHEN NOT IN USE
Always disconnect the battery pack from the speed control when not in use to avoid short
circuits and possible fire hazard.
TRANSMITTER ON FIRST
Turn on the transmitter first THEN turn on the speed control.
INSULATE WIRES
Always insulate exposed wiring with heat shrink tubing or electrical tape to prevent short
circuits, which can damage ESC.
14 +Yr DAYS
Ver. 1.1
120
TIMING INCREASE ESC & MOTOR'S TEMPERATURE.
Electronic motor timing will increase the temperatures of ESC and brushless motor. Use
extreme caution when setting up and testing your application to avoid overloading
and overheating.
TIMING PRODUCES DANGEROUSLY HIGH SPEED
When Toro's electronic motor timing is enabled, the vehicle speed can be increased
dramatically. Please take extra precautions.
2)Mount Speed Control in Vehicle
Use double-sided tape to mount the speed control in vehicle(do not use CA glue).
Secure power capacitor module to chassis. You can use double-sides tape or a
tie wrap to mount power capacitor to the vehicle's chassis or shock tower. Module
can also be tie-wrapped along the power wires.
Use double-sided tape to mount the switch where it will be easy to access.Select
a position where it will not get damaged or get switched OFF during a crash or
roll-over.
Cut the ESC's BLUE, YELLOW & ORANGE silicone motor power wires to the desired
length and strip about 3.2mm-6.35mm (1/8”-1/4”) of insulation from the end of each
wire. “Pre-tin”the wire by heating the end and applying solder until it is thoroughly
covered.
CAUTION: By very careful not to splash yourself with hot solder.
Place the ESC's BLUE Phase ‘A’ motor wire onto motor's ‘A’ solder tab and solder.
Use soldering iron to apply heat to exposed wire; begin adding solder to tip of soldering
iron and wire. Add just enough solder to form a clean and continuous joint from the
plated area of the solder tab up onto the wire. Solder the ECS's YELLOW Phase
‘B’ motor wire to the motor's ‘B' solder tab and Solder the ESC's ORANGE
Phase ‘C' motor wire to motor’s ‘C’ solder tab.
3) Soldering
BEFORE YOU BEGIN
2/8
PLEASE READ ALL INSTRUCTIONS BEFORE OPERATION
Support Both Sensor or Sensor-less Brushless Motor
1/12 & 1/10 SCALE ADVANCE
RACING SPEED CONTROLLER
Ver. 1.1
SkyRC introduces the economical, easy to use Toro 1 cell Brushless System. This ESC comes
with built-in DC/DC inverter (DC/DC booster) and DC/DC converter. This innovative technology
allows drivers to power their vehicle’s electronics on a single 1 cell Li-Po battery pack without
installing additional external boosters or receiver pack and also the ESC can be powered by 2
cells Li-Po without external BEC.
Toro 1 cell ESC is also compatible with all sensorless brushless motors and most sensored
brushless motors with timing or without timing.
Toro 1 cell ESC is optimized for 1 cell racing and features a low-profile heat sink for easy
installation in 1/12 scale vehicles with space constraints.

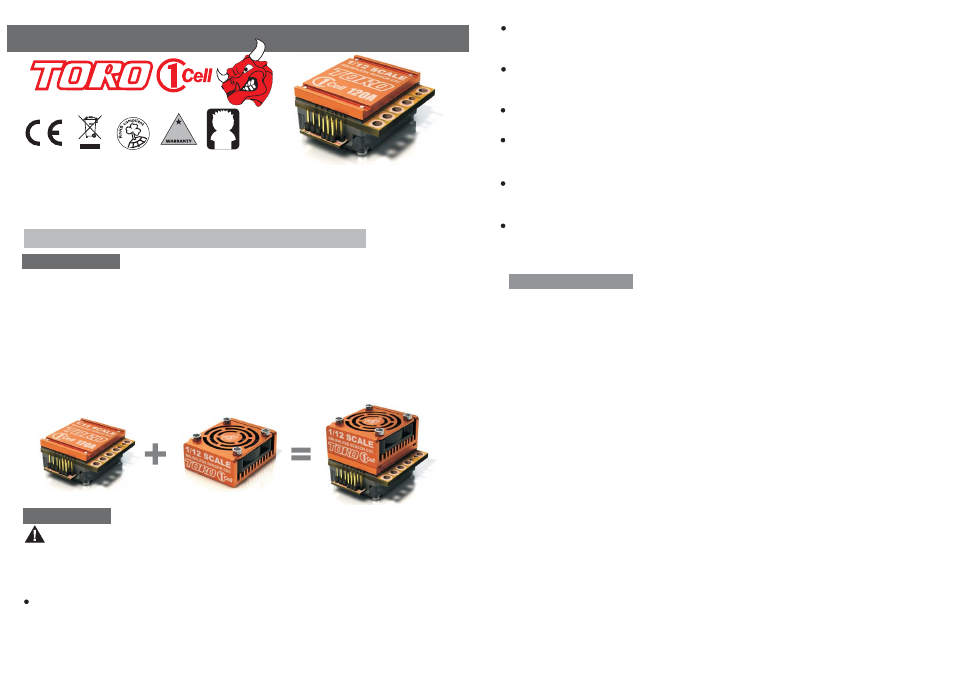

This ESC also comes with a cooling system to support 2S LiPo, 1/10 scale vehicle. You can
use thermal double-sided adhesive tape(included) to mount the cooling system on top of ESC.
TORO 1 Cell ESC Cooling System
