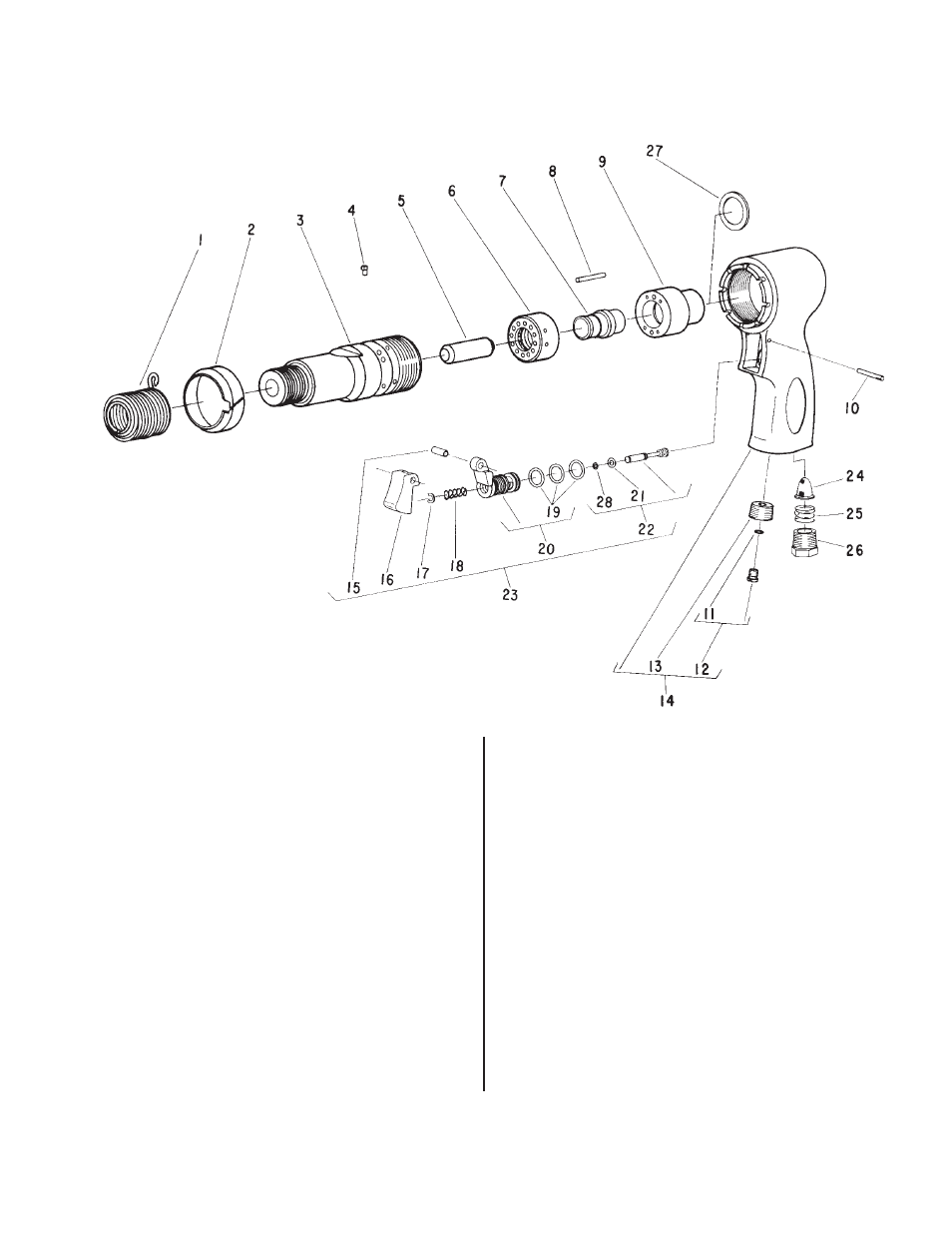

PARTS LIST FOR 270A, 270A-2, & 270A-4
SIOUX RIVET HAMMERS
(SERIAL D)
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER WHEN
ORDERING PARTS
1. 2207 Spring
2. 30385 Deflector—Exhaust
3. 30384 Barrel 270A
65211 Barrel 270A-2
65212 Barrel 270A-4
4. 30391 Pin—BarreI Lock
5. 30386 Plunger 270A, 270A-4
65210 Plunger 270A-2
6. 65925 Cylinder—Front air
7. 65927 SIeeve—Cylinder
8. 30347 Pin-Cylinder Lock
9. 65926 Cylinder—Back Air
10. 30613 Pin
11. 14369 Ring—“O”
12. 44253 Oiler Screw
13. 44755 Insert—Oiler
14. 65368 Ass’y—Handle
65931A Ass’y—Handle complete
(Includes Figs 10-28)
15. 44754 Bushing
16. 53182 Trigger
17. 21542 Retainer Ring
18. 69504 Spring
19. 14312 Ring—“O” (3)*
20. 53258 Ass’y—Valve Body
21. 66148 Ring—“O”
22. 65928 Ass’y—Valve
23. SP65930H Ass’y—Teasing Throttle Valve
24. 33993 Screen—Air
25. 21417 Spring
26. 44100 Bushing—Reducing
27. 35116 Washer
28. 14349 Ring—“O”
