TO ADJUST DEPTH
NOTE:
All depth adjustments must be made with the base clamp lever released.
1. Hold the tool in a horizontal position with the base clamp lever facing you.
2. Open the base clamp lever to release the motor.
3. COARSE ADJUSTMENT:
To make a large depth adjustment, depress coarse adjustment release lever and raise or lower to desired depth. There are three notches in the motor
housing which are spaced 1/2" to facilitate this adjustment.
4. FINE DEPTH ADJUSTMENT:
To use the fine adjustment feature, turn the fine adjustment knob clockwise to lower the router bit or counter-clockwise to raise it.
NOTE:
Be sure coarse adjustment lever is engaged in one of the coarse adjustment notches before making a fine adjustment.
To allow precise settings, the indicator ring is graduated in English and Metric increments.
(Note: one full turn of fine adjustment knob = 1/16" or approximately 1.5 mm. The fine adjustment mechanism has a total adjustment range of 7/8" (23
mm). Each cast indicator mark next to coarse adjustment lever is equal to 1/8".
5. After making depth adjustments, re-clamp the motor.
The indicator ring may be reset to zero without moving the fine adjustment knob, to allow the user to begin the adjustment from any reference point
desired.
TO CLAMP MOTOR
When final coarse and fine adjustments have been made, fasten the base clamp lever to secure adjustments. (If additional clamping force IS desired:
using a 10 mm wrench, rotate clamp nut clockwise SLIGHTLY (1/8 turn or less), then test clamp. Do not overtighten.)

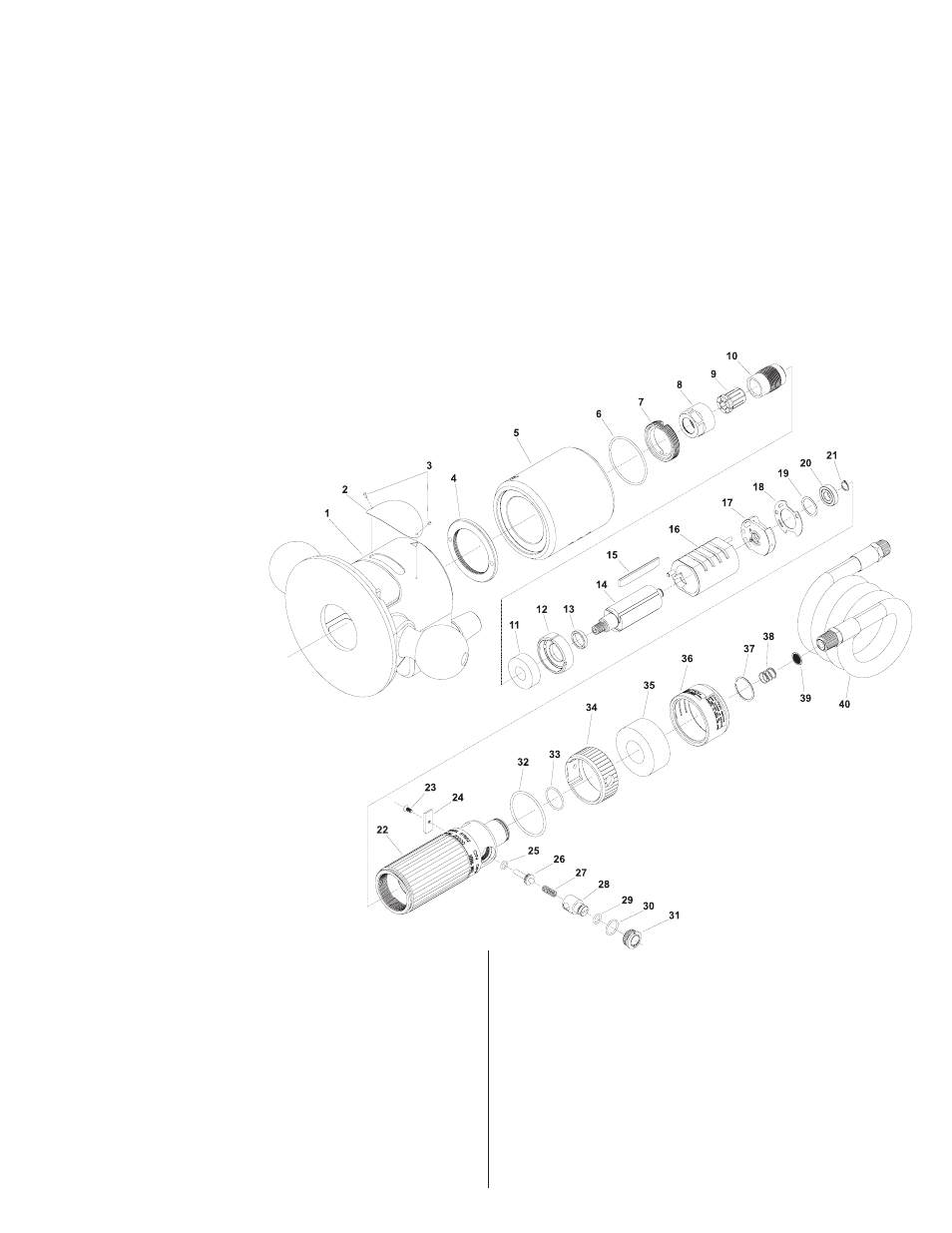

PARTS LIST FOR
1982A ROUTER, 1/4" COLLET AND
RT1982, 3/8" COLLET & RT1983, 1/2" COLLET ROUTERS
( SERIAL“D”)
1. 74215 Router Base
2. 74220 Name Plate
3. 09954 Rivet (2)*
4. 54671 Spanner Nut
5. 74216 6" Base Adaptor
6. 21801 Retaining Ring
7. 54264 Retainer
8. 21138 Erickson Locknut
9. 21126B Erickson Collet (1/4")(1982A)
21125 Erickson Collet (3/8")(RT1982)
21124 Erickson Collet (1/2")(RT1983)
10. 21135 Erickson Collect Chuck Body
11. 10940 Ball Bearing
12. 13316 Front End Plate
13. 54866 Rotor Spacer
14. 54865 Rotor
15. 53363 Rotor Vane Assembly (Set of 4)
16. 44869 Cylinder
17. 13227 Rear End Plate
18. 14794 Gasket
19. 41226 Wave Washer
20. 10241 Ball Bearing
21. 21534 Retaining Ring
22. 53474 Router Housing Assembly (Incl’s Figs 32 & 33)
23. 06198 ScrewOval Hd. C’sunk (#6-32 x 5/16")
24. 54274 Cam
25. 14291 O-Ring
26. 53360 Valve
27. 21315 Spring
28. 53361 Speed Control
29. 14311 O-Ring
30. 14378 O-Ring
31. 53362 Retainer
32. 14336 O-Ring
33. 14391 O-Ring
34. 54273 Valve Operator
35. 14114 Silencer Pad
36. 54265 Silencer
37. 21776 Retaining Ring
38. 21385 Spring
39. 30462 Screen
40. 53370 Hose Assembly (6' Long)
Not Shown
25480 Wrench (7/8" Opening)
40149 Wrench (1-1/16'’ Opening)
SP74215 Router Base Assembly (Includes figures 1-3, 5)
Fig. Part
No.
No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No.
No. Description
