Sioux Tools TP9A - Manual (Page 15)

15
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
*Order Quantity As Required
Fig. Part
No. No. Description

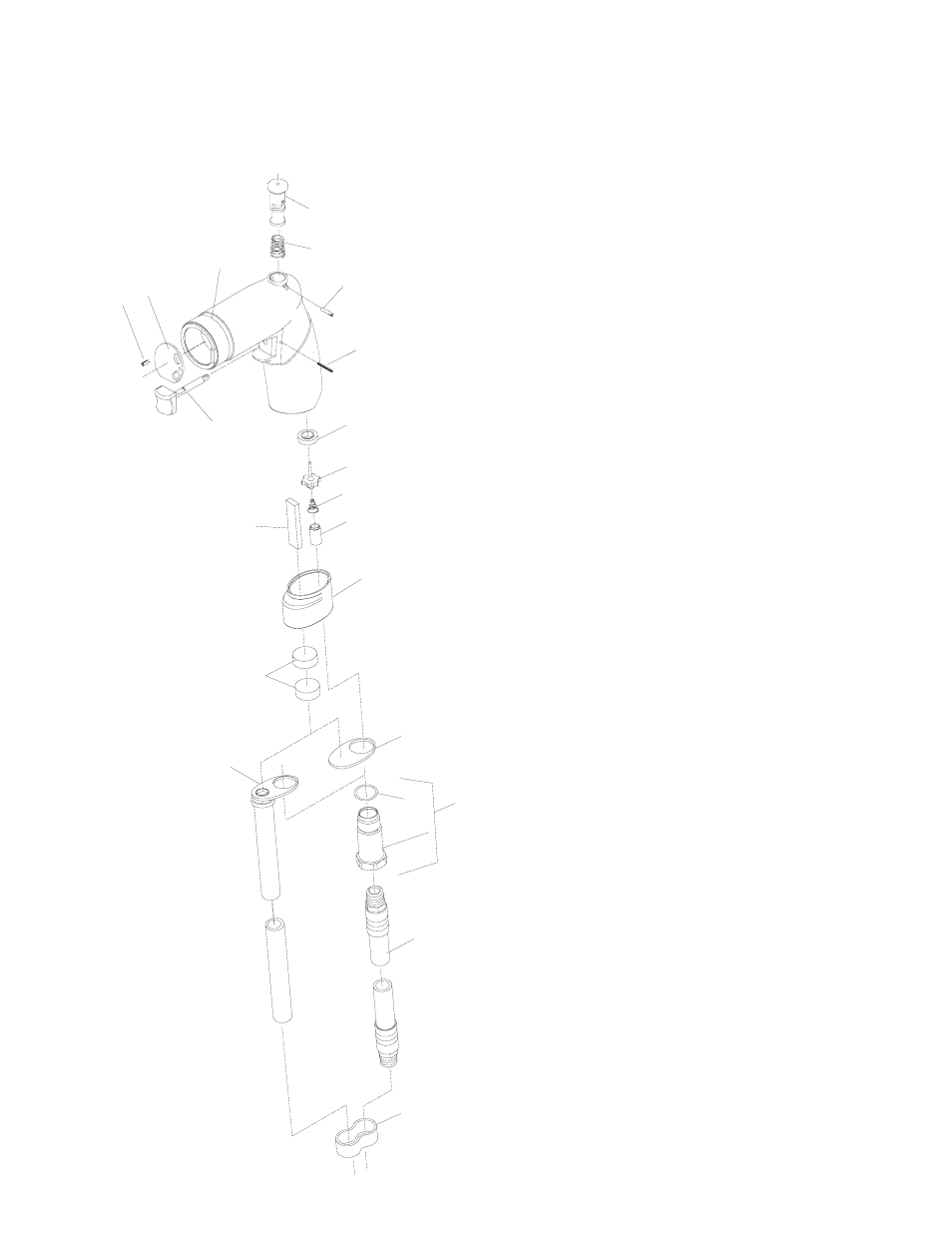

PARTS LIST FOR TP9A SERIES TAPPERS
SERIAL “C”
1. 67107 Ass’y—Housing (Includes Figs. 7, 8)
2. 68083 Baffle (Includes Fig. 3)
3. 30273 Pin—Roll
4. 68081 Spool—Valve
5. 67160 Spring
6. 68103 Pin
7. 67805 Trigger
8. 30610 Roll Pin
9. 67798 Seat—Valve
10. 67804 Valve
11. 68791 Spring
12. 68792 Trigger Spring Spacer
13. 68155 Strip—Exhaust
14. 67800B Muffler
15. 67807 Silencer—Pad (2)*
16. 67801A Cap—Muffler
17. 67819 Adapter—Inlet (Includes Fig. 18)
18. 14378 Ring—“O”
19. 1376 Ass’y—Leader Hose
20. 67128 Hose—Exhaust
21. 40153 Clip—Hose (3)* Remote Exhaust
ITEMS NOT SHOWN:
2355 Ass’y—Dead Handle
67806 Cover
COMPLETE ASSEMBLY
68107 Ass’y—Housing (Includes Fig. 1-16)
1
7
13
18 17
12
11
14
16
15
19
8
9
10
2
3
5
4
6
20
21
