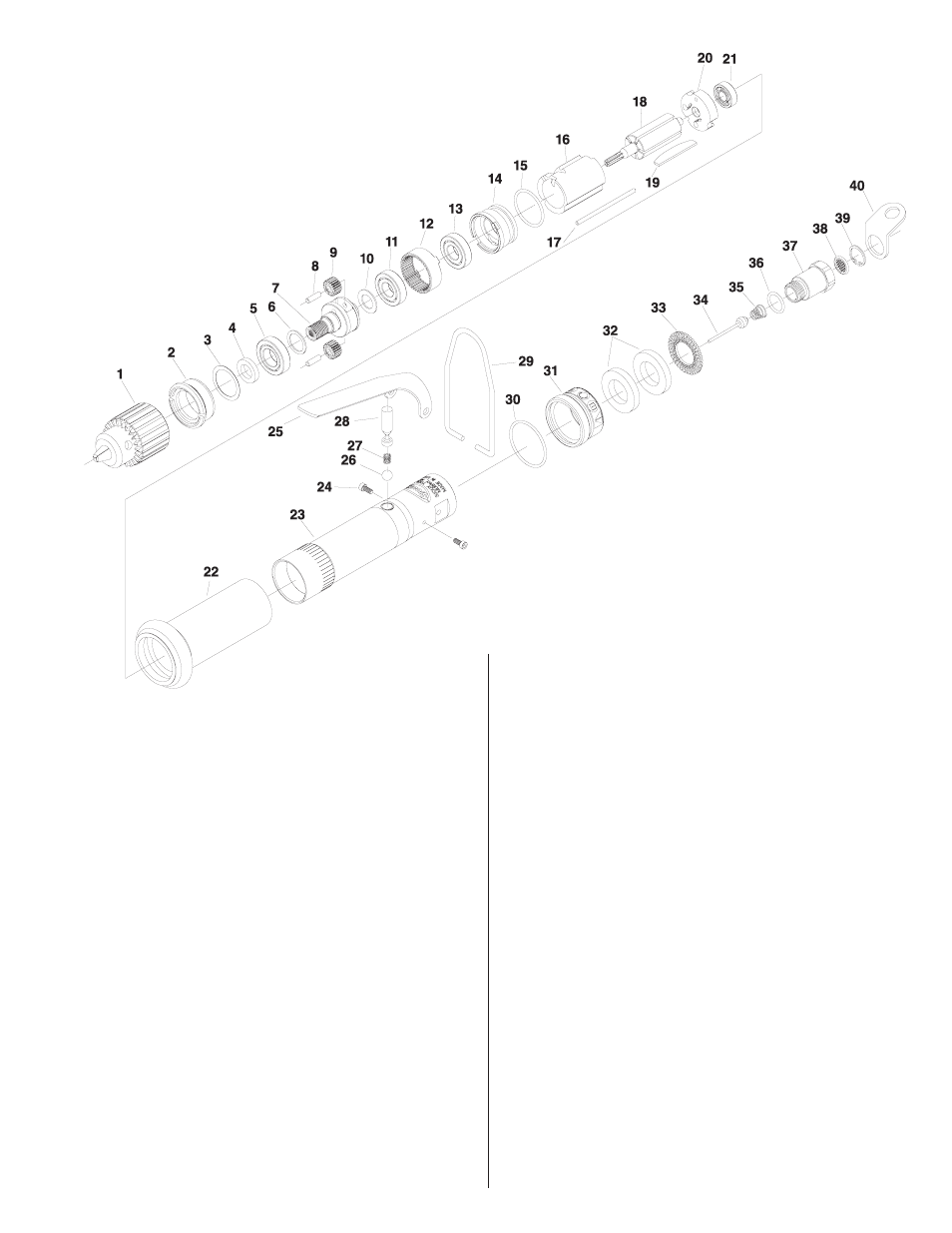

PARTS LIST FOR 1420 & DR1422 SIOUX COMPACT DRILLS

LEVER

SERIAL “D”

1.

21019B Chuck (1/4" Capacity)

30000 Chuck Key

2.

67217 Retainer

3.

67552 Spring Wave Washer

4.

67954 Spacer

5.

67216 Ball Bearing

6.

67215 Washer

7.

67839 Gear Carrier (1420)

67840 Gear Carrier (DR1422)

8.

30453 Pin (2)*

9.

19212 Idler Gear (1420)(2)*

19195 Idler Gear (DR1422)(2)*

10.

25680 Washer

11.

10241 Ball Bearing

12.

19189 Ring Gear

13.

65998 Ball Bearing

14.

65995 Lower End Plate

15.

14391 O-Ring

16.

66005 Cylinder

17.

66132 Pin

18.

65991 Rotor (6 Tooth)(1420)

65992 Rotor (8 Tooth)(DR1422)

19.

66190 Vane (Set of 5)

20.

66004 Upper End Plate

21.

10255 Ball Bearing

22.

66193 Housing Sleeve

23.

66219 Housing Assembly

24.

06099 Screw (2)*

25.

35235 Lever

26.

10299 Steel Ball (1/4" Diameter)

27.

21211 Spring

28.

66020 Plunger

29.

66036 Bail

30.

04210 O-Ring

31.

66018 Silencer Housing

32.

66191 Felt Washer (2)*

33.

66017 Diffuser Screen

34.

66035 Valve Assembly

35.

21441 Spring

36.

14312 O-Ring

37.

66016 Inlet Adapter

38.

30463 Screen

39.

21541 Retaining Ring

40.

35196 Bail

Complete Assemblies:

66002 Motor Assembly (6 Tooth)(1420)

(Includes Figures 13 thru 21)

66003 Motor Assembly (8 Tooth)(DR1422)

(Includes Figures 13 thru 21)

67946 Planetary Reduction Assembly (1420)

(Includes Figures 5 thru 10)

67947 Planetary Reduction Assembly (DR1422)

(Includes Figures 5 thru 10)
