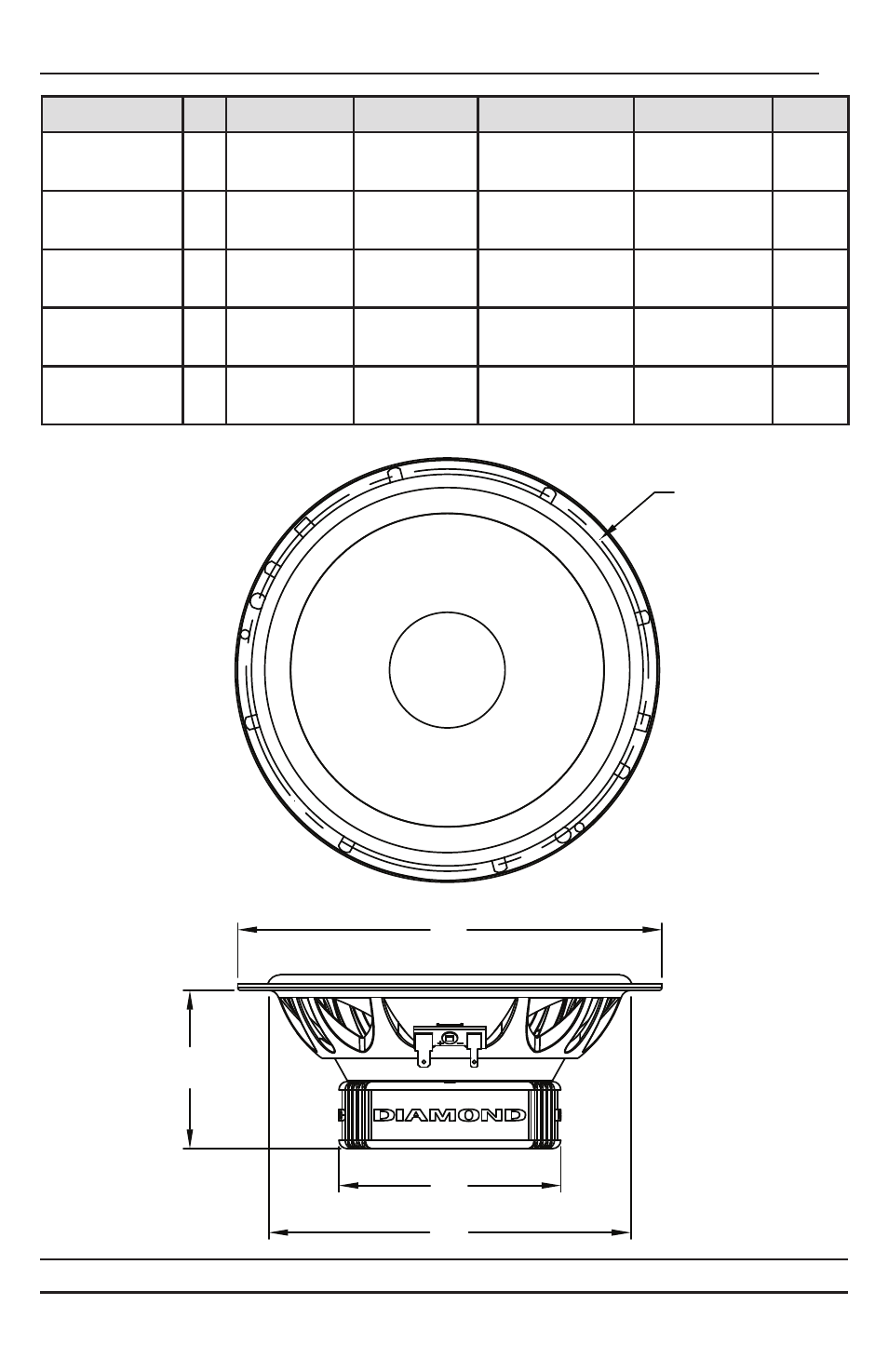

PHYSICAL DIMENSIONS

Dimension

Unit

D151i

D161.5/D161.5i

D171i

D191i

D1TAK

Total Diameter

(A)

in.

mm

5.59

142.0

6.51

165.5

5.53 x 8.66

140.6 x 220.0

9.21 x 6.40

234.0 x 162.8

1.73

43.94

Mounting Diameter

(B)

in.

mm

4.61

117.3

5.35

136.0

7.1 x 4.96

179.0 x 126.1

8.38 x 5.77

212.8 x 146.6

1.62

41.15

Screw Hole Diameter

(C)

in.

mm

5.23

133.0

6.14

156.0

8.03 x 4.98

204.0 x 126.7

6.58 x 4.71

167.2 x 119.7

N/A

Mounting Depth

(D)

in.

mm

2.32

59.0

2.42

61.5

2.49

63.3

2.94

74.8

0.5

12.7

Magnet Diameter

(E)

in.

mm

78.0

3.07

86.4

3.40

3.07

78.0

4.18

106.4

N/A

(C)

(A)

(B)

(D)

(E)
