Each D1 component set comes with a pair of model specific programmable crossovers. Under the cover

required. Mount the cup using provided hardware (flush mount

When flush or surface mounting tweeters, make sure the

5

©2008 Diamond Audio Technologies. All rights reserved.

desired location can accommodate the hole size and depth

illustration shown on right.) Mount surface cup at desired angle with
provided screws in tweeter mounting kit. Snake speaker wires through tweeter
cup, connect tweeter to wires, and snap tweeter into cup by aligning the notches.
Be careful not to push on the center of the tweeter grill.

Crossover Programming

there is a jumper marked “TWT REFERENCE” or “- 2dB”. Tweeter attenuation can be achieved by moving
the jumper to the appropriate position. The REFERENCE position has no attenuation effect on the tweeter.

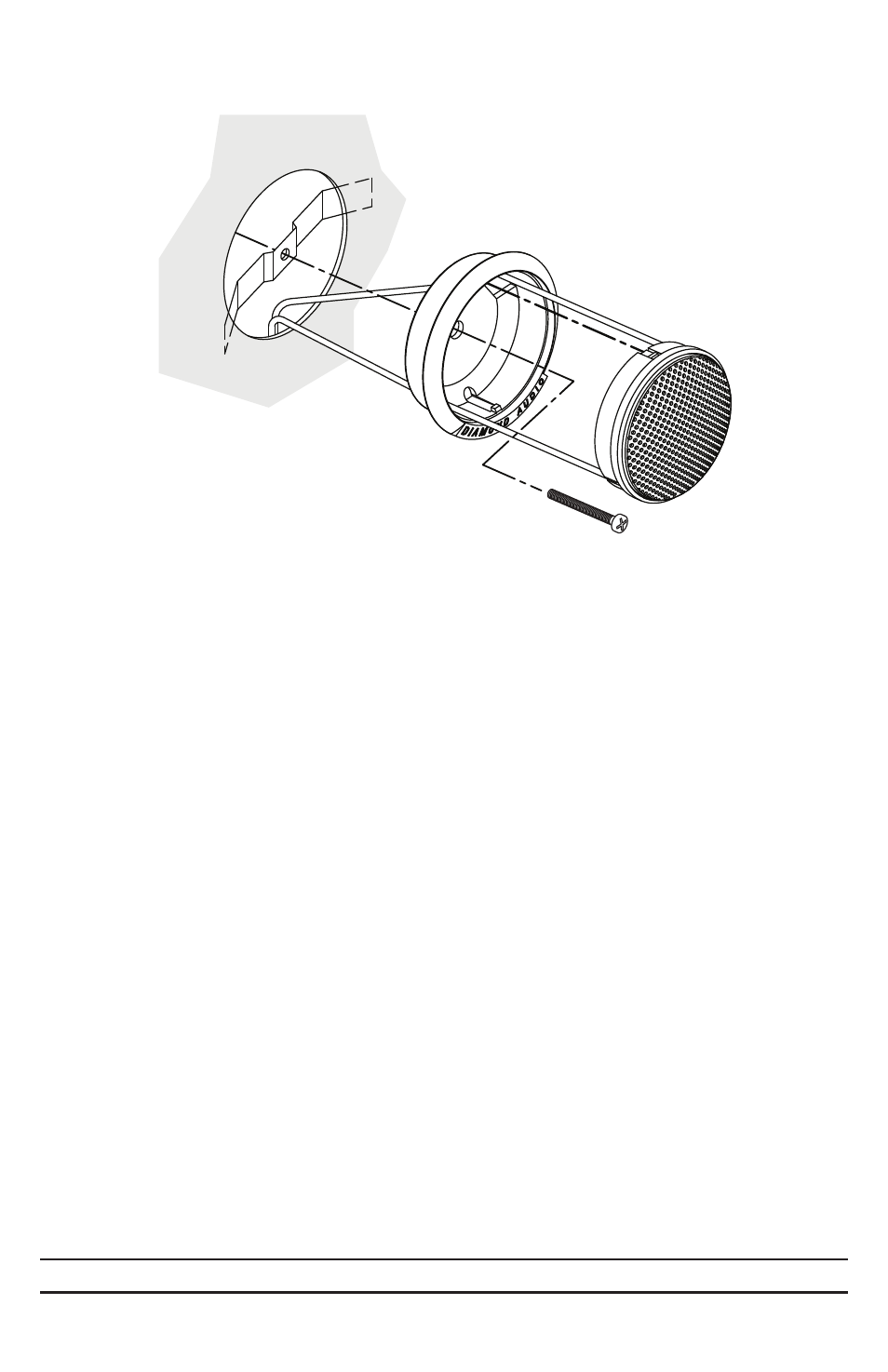

Mounting Cup

(align tab and slot)

Tweeter

Screw

Tweeter Mounting

Clamp Ring
