Sioux Tools IW375AP - Manual (Page 22)

22 ZCE813 Date 2012May1/A
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
Fig. Part
No. No. Description

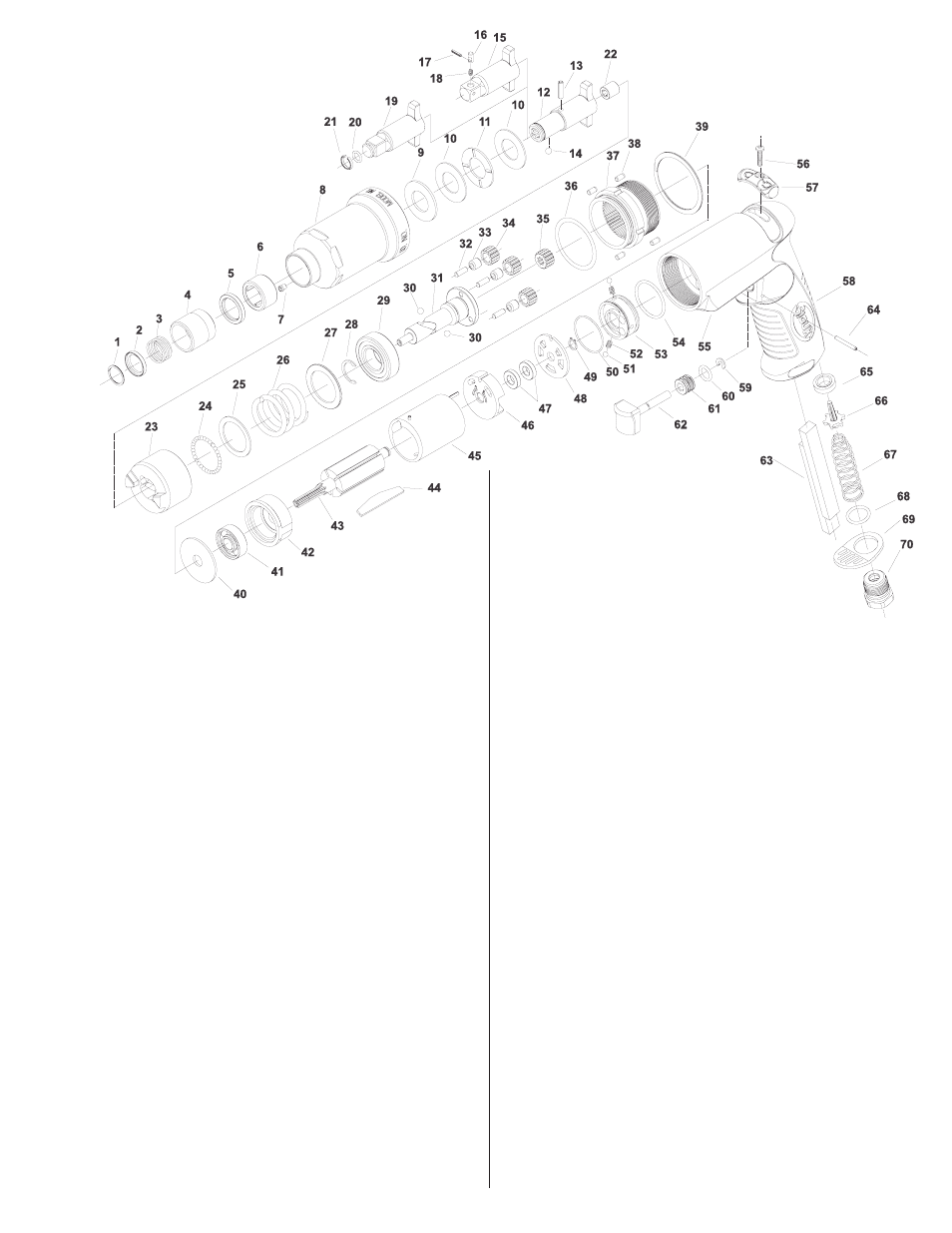

PARTS LIST FOR PARTS LIST FOR
ID375AP & IW375AP SERIES
PISTOL GRIP IMPACT DRIVERS
SERIAL“A”
1. 74830 Spiral Snap Ring (ID375AP-2Q)
2. 44660 Guide Ring (ID375AP-2Q)
3. 21406 Spring (ID375AP-2Q)
4. 54468B Ball Retainer (ID375AP-2Q)
5. 74819 Oil Seal
6. 74820 Needle Bearing
7. 30375 1/8” Grease Fitting
8. SP74816 Nose Piece (Includes Figures 5-7)
9. 74821 Rubber Washer
10. 74822 Thrust Washer (2)*
11. 74823 Thrust Bearing
12. SP74833 Quick Change Anvil (ID375AP-2Q)
(Includes Figures 13, 22)
13. 30236 Roll Pin, 1/8 X 1/2 (ID375AP-2Q)
14. 10902 Ball (ID375AP-2Q)
15. SP74835 Pinned 3/8” Anvil (IW375AP-3P)
(Includes Figures 16-18, 22)
16. IMBFP1-1 Top Button (IW375AP-3P)
17. ME2C55 Roll Pin
18. ME1A267 Spring
19. SP74834 3/8” Anvil (IW375AP-3F)
(Includes Figures 20-22)
20. ME7B63 O-Ring (IW375AP-3F)
21. ME7A148 Retaining Ring (IW375AP-3F)
22. 10044 Needle Bearing
23. CT561-153 Hammer
24. 10901 Steel Ball 3/32” Diameter (32)*
25. ME11B27 Washer
26. 74824 Spring
27. 74825 Washer
28. 74828 Retaining Ring
29. 10265 Ball Bearing
30. 10902 Ball (2)*
31. SP74832 Gear Carrier (Includes Figures 28-29, 32)
32. 40155B Pin 1/8” x 3/8” (3)*
33. 10040 Needle Bearing (3)*
34. SDR-46 15 Tooth Planet Gear (3)*
35. SDR-47 16 Tooth Sun Gear
36. 04336 O-Ring
37. 74814 Gear Case
38. 24072 Pin 1/8 x1/4 (4)*
39. 74827 Spiral Retaining Ring
40. SDR-29 Wear Plate
41. 10220 Ball Bearing
42. SDR-80 Front End Plate
43. SDR-77 Rotor
44. SP74049 Vane Set
45. 74134 Cylinder, Reversing
46. SDR-11 Rear End Plate
47. SDR-26 Ball Bearing (2)*
48. SDR-10 Reversing Plate
49. 21491 Retaining Ring
50. 69017 O-Ring
51. ME9A14 Steel Ball (2)*
52. ME1A189 Compression Spring (2)*
53. 74845 Reversing Manifold (Includes Figures 50-54)
54. 04215 O-Ring
55. SDR-33A STI Short Reversing Housing
56. SDR-12 Reversing Mechanism Screw
57. SDR-16 Reversing Shuttle
58. SPSDR-28 Grip (Includes Grip Tape)
59. 21542 Retaining Ring
60. 14311 O-Ring
61. SDR-23 Trigger Sleeve
62. SDR-200 Trigger
63. 04046 Silencer Pad (2)*
64. 30610 Spiral Pin
65. IM3100-22 Tipper Valve Seat
66. SDR-20 Tipper
67. SDR-13 Trigger Spring
68. 69007 O-Ring
69. SDR-35 Exhaust Deflector
70. 66244R Inlet Adapter
Not Shown:
SPSDR-77AR Motor Assembly (Includes Figures 41-49)
SPSDR-33A Reversing Housing Assembly
(Includes Figures 50-70)
SP74800 Impact Mechanism Assembly
(Includes Figures 23-32)
