Form ZCE763 15 Date 2005December16/A

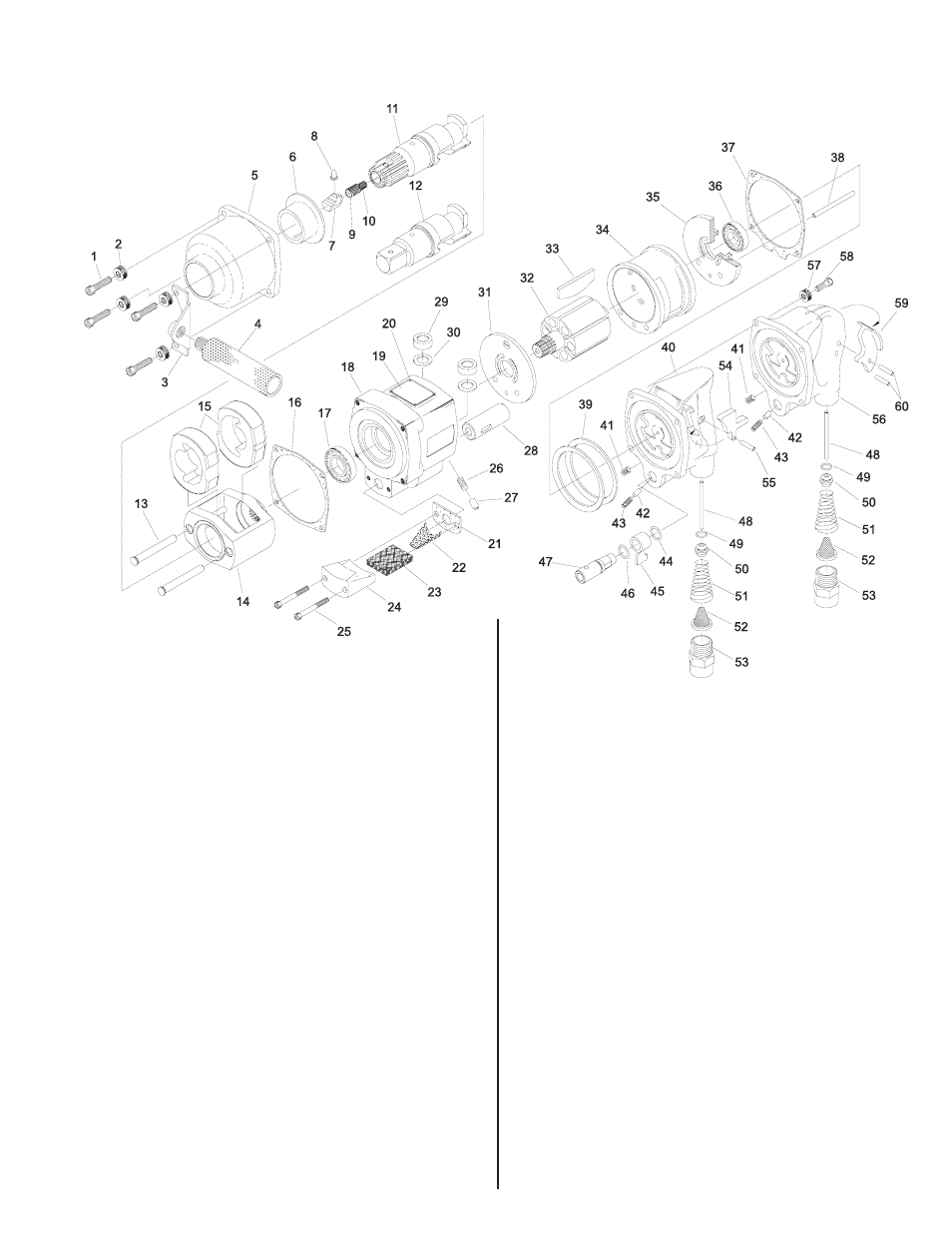

INSTRUCTIONS & PARTS LIST FOR
IW150HAI & IW150HAO SERIES IMPACT WRENCHES
SERIAL “A”
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
1. 75082 Screw (4)*
2. IW150H-02 Washer (4)*
3. IW150H-03 Bracket
4. 75080 Handle
5. IW150H-05 Case
6. IW150H-06 Bushing
7. IW150H-07 Plunger
8. IW150H-08 Lockbutton
9. IW150H-09 Outer Spring
10. IW150H-10 Inner Spring
11. IW150H-11 Spline Anvil
12. IW150H-12 Square Anvil
13. IW150H-13 Pin (2)*
14. IW150H-14 Frame
15. IW150H-15 Hammer (2)*
16. IW150H-16 Gasket
17. IW150H-17 Bearing
18. IW150H-18 Housing
19. 75090 Drive Screw (4)*
20. 75017 Nameplate
21. 75010 Gasket
22. 75008 Baffle
23. 75018 Silencer
24. 75011 Deflector
25. 75095 Screw (2)*
26. 75022 Spring
27. 75021 Plunger
28. 75012 Bushing
29. 75016 Retainer (2)*
30. 75096 Gasket (2)*
31. IW150H-31 End Plate
32. IW150H-32 Rotor
33. IW150H-33 Vanes (6 pck)
34. IW150H-34 Liner
35. IW150H-35 End Plate
36. IW150H-36 Bearing
37. IW150H-37 Gasket
38. IW150H-38 Dowel
39. IW150H-39 Washer (2)*
40. IW150H-40 Inside Trigger Housing
41. IW150H-41 Plug
42. 75094 Felt
43. 75093 Adjustable Screw
44. 75092 Seal
45. 75013 Lever
46. 75086 Seal
47. 75014 Valve
48. IW150H-48 Plunger
49. 75009 Face
50. 75015 Throttle
51. 75081 Spring
52. IW150H-52 Strainer
53. 75085 Inlet
54. 75083 Trigger
55. 75023 Pin
56. IW150H-56 Outside Trigger Housing
57. IW150H-57 Screw (4)*
58. IW150H-58 Washer (4)*
59. 75084 Trigger
60. 75091 Pin (2)*
