Form ZCE760 15 Date 2013July18/D
51
31 32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
34
50

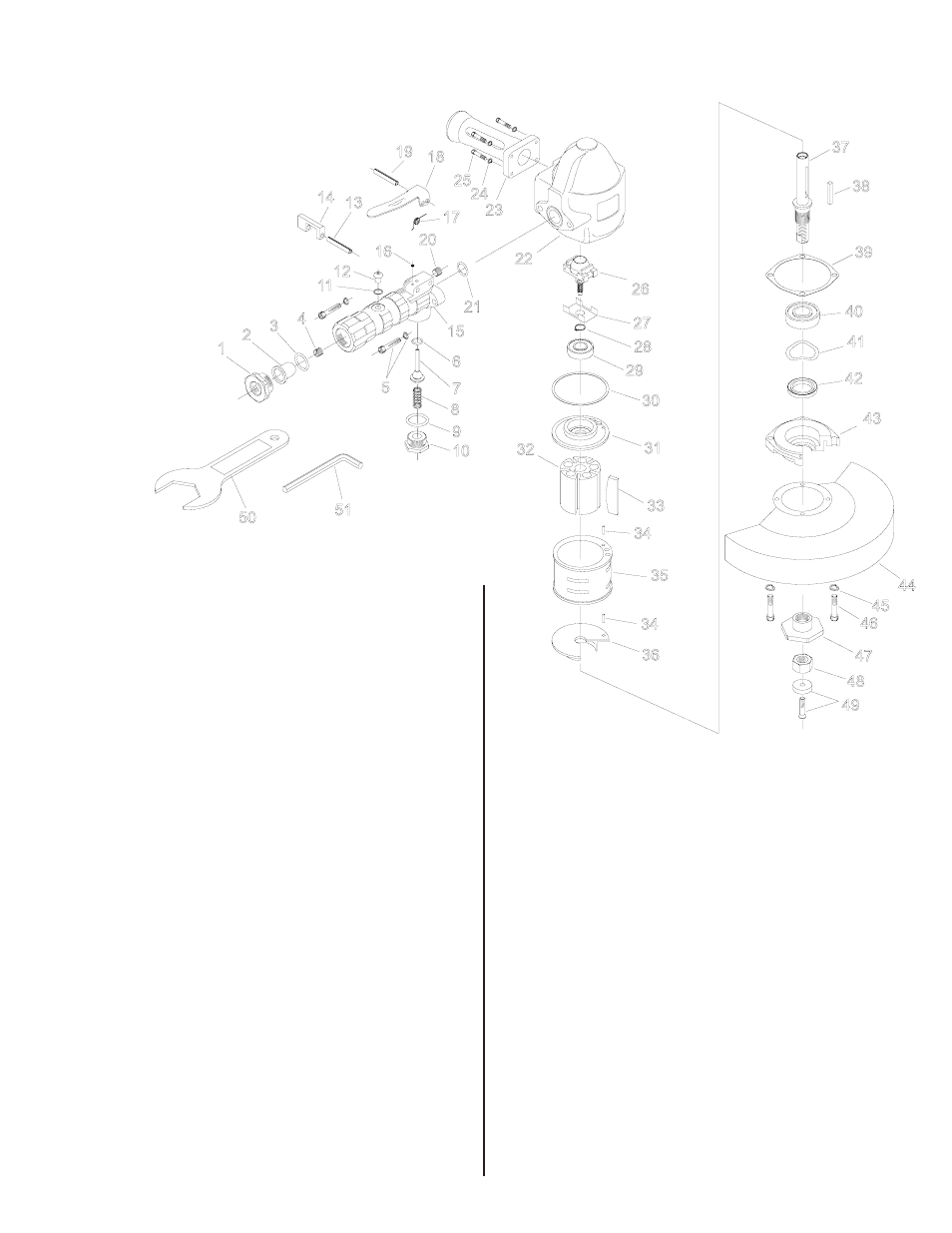

INSTRUCTIONS & PARTS LIST FOR
VG20AL & VS20AL SERIES VERTICAL GRINDERS & SANDERS
SERIAL “A”
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL
NUMBER WHEN ORDERING PARTS
Fig. Part
No. No. Description
1. 75032 Inlet Cap
2. 75049 Air Screen
3. 75055 Air Screen O-Ring
4. 75019 Oil Regulator
5. 75074 Cap Screw (2)*
75076 Lock Washer (2)*
6. 75007 O-Ring
7. 75040 Throttle Valve Assy
8. 75050 Throttle Valve Spring
9. 75045 O-Ring
10. 75079 Throttle Valve Cap
11. 75003 Oiler Seal
12. 75067 Oiler Plug
13. 75044 Lockout Pin
14. 75052 Lockout
15. 75047 Throttle Handle
16. 75053 Set Screw
17. 75051 Lockout Spring
18. 75034 Lever
19. 75037 Lever Pin
20. 75020 Pipe Plug
21. 75068 O-Ring
22. VG20-23 Motor Housing
23. 75029 Assist Handle
24. 75038 Lock Washer (4)*
25. 75035 Cap Screw (4)*
26. 75087 4500 RPM Governor
75088 6000 RPM Governor
75099 7200 RPM Governor
27. 75098 Governor Retainer
28. 75004 Lock Ring
29. 75078 Bearing (Upper)
30. 75028 Rear Gasket
31. 75031 Rear End Plate
32. 75036 Rotor
33. 75039 Rotor Blades (5 pack)
34. 75070 Cylinder Pin (2)*
35. 75030 Cylinder
36. VG20-38 Front End Plate
37. VG20-39 Spindle
38. 75024 Key
39. VG20-41 Gasket
40. 75077 Bearing (Lower)
41. 75041 Wave Spring Washer
42. 75057 Seal
43. VG20-45 Bearing Support
44. 75065 7" Guard
75066 9" Guard
75000 6" Cup Guard
45. 75072 Lock Washer (4)*
46. 75073 Cap Screw (4)*
47. 75027 Wheel Flange
48. 75069 Arbor Nut
49. 75054 Collar & Screw
50. 75005 2" End Wrench
51. 75006 5/32" Allen Wrench
Not Shown:
75089 Complete Throttle Handle Assy
(Includes Figures 1–21)
