Digicom S.p.A. VoiceGATE Manual rev.2.0
Pag. 23
Gateway IP Address
The IP Address field concerning the Gateway represents the IP Address of an eventual
PSTN/ISDN Gateway.
The Gateway allows the communication between the VoIP network and the traditional
telephone lines (PSTN, ISDN and GSM). If the VoiceGATE doesn’t find the selected number in
the address book, it sends it to the Gateway, that will call the selected number.
Special Functions

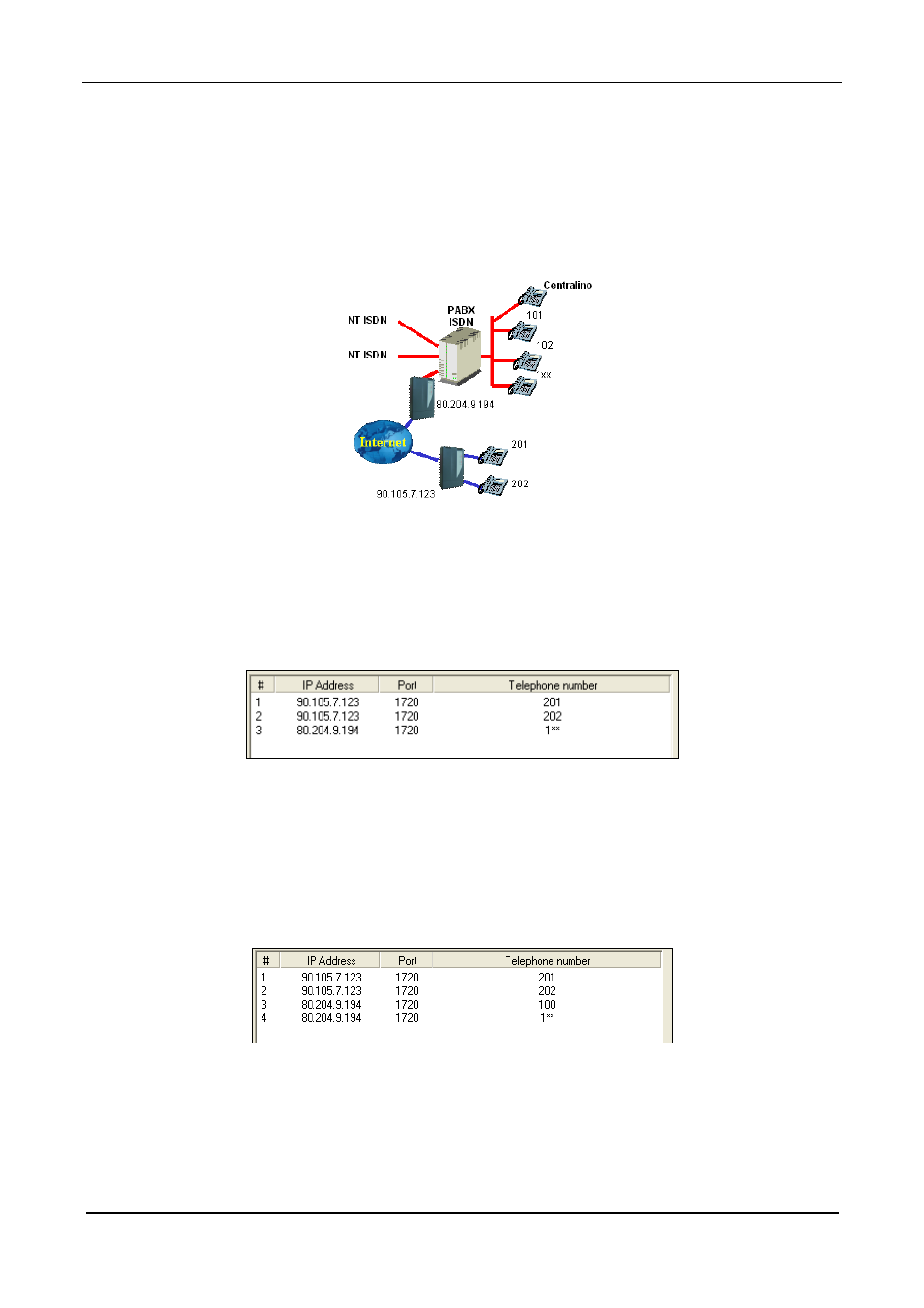

Picture 1
If VoiceGATE is connected to an ISDN switchboard, as shown in picture 1, it could be
necessary to associate multiple telephone numbers (from 100 to 199) to an IP Address
(example: 80.204.9.194). In this case it is possible to insert the number with the indication
1**.
With this configuration, all the calls coming from 201 and 202 telephones and addressed to the
numbers included among 100 and 199 will be directed to IP 80.204.9.194; the call will arrive
at the ISDN switchboard, that if correctly programmed, will directly switch the call to the
extension.
Attention: when you fill in the address book, the telephone numbers composed by “*”
character must be inserted at the end.
NOTE:
The address book must contain the correspondence among the IP addresses and the telephone
numbers of your VoIP network.
