Form ZCE732B 28 Date 2014October28/L
33
39
40
41 42
43
35
36
37
38
45
46
47
30
31 32
34
44
1
2
3
4
5
6
7
8
9
10
13
12
11
9
17
18
14
15
16
19
20
6
14
21
25
26
27
28
29
22
23
24
14

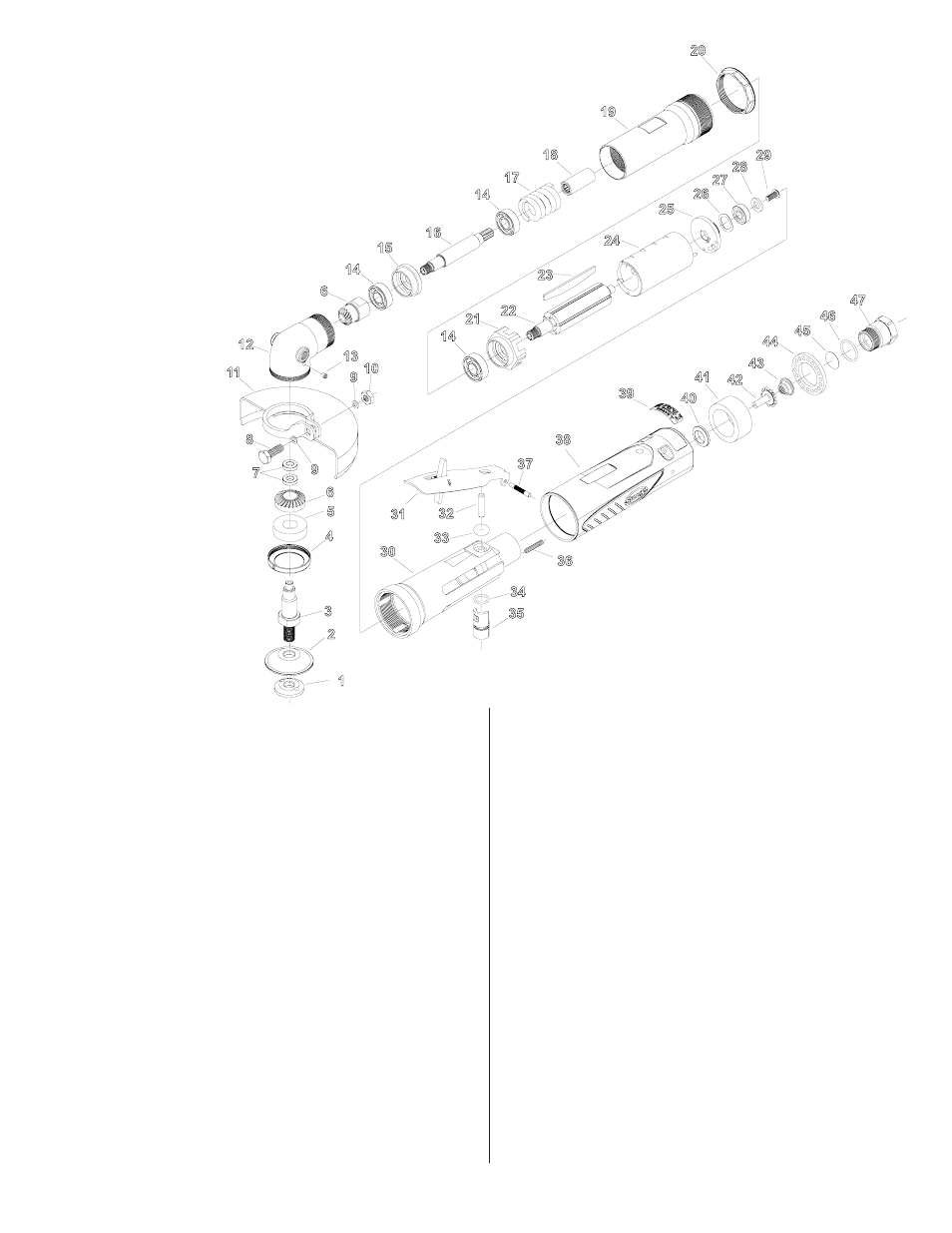

PARTS LIST FOR
SWG10AXL SERIES RIGHT ANGLE WHEEL GRINDERS
SERIAL “C”
Fig No Part No Description
1.
54959 Wheel Retainer
2. 74096 Wheel Flange
3. 77520 Output Spindle, 3/8"-24 Thread
77521 Output Spindle, 5/8"-11 Thread
4. 77512 Bearing Retainer
5. 10930 Ball Bearing
6. PT450-3334 Gear Set
7.
SDR-26 Ball Bearing .500x.25x.125 (2)*
8. 07635 Hex Bolt
9. 07634 Washer (2)*
10. 68444 Hex Nut, 1/4-20
11. 77518 4" Type 27 Guard
12. 77510 Angle Head
13. 30375 Grease Fitting 1/8"
14. 10257 Ball Bearing (3)*
15. 77087 Bearing Holder
16. 77088 Shaft
17. 77091 Spring
18. 77086 Coupler
19. 75220 Extension Housing
20. 75221 Jam Nut
21. SDG-3 Front End Plate
22. 74028 Rotor (5 slot)
23. SP74048 Vane Set
24. 74030 Cylinder, Non-Rev
25. 74023 Rear End Plate
26. 41338 Wave Washer
27. 10253 Ball Bearing
28. 74054 Washer
29. 74055 But Head Cap Screw #8-32f x 3/8
30. SDG-1 Housing
31. SP74019 Lever Assembly
32. 74018 Pin Torr 3/16 X 7/8”
33. 67793 O-Ring
34. 14290 O-Ring 1/16 X 3/8 X 1/2"
35. 74013 Regulator
36. 06402 Set Screw, 6-32 x 3/4
37. 74020 Knurl Pin
38. 74004 Housing Cover
39. 74051 Warning Label
40. 74008 Throttle Valve Seat
41. 74016 Muffler
42. 74009 Throttle Valve
43. 74010 Taper Spring
44. 74017 Exaust Deflector
45. 74011 Screen
46. 14281B O-Ring 1/16 X 5/8 X 3/4"
47. 74012 Inlet Bushing
NOT SHOWN:
SDG-TUS Motor Tune-up Kit
SWG10-M12 Drop-in Motor (12,000 RPM)
SPSDR-14A Side Handle Assembly
SP35545 Spanner Wrench
SP30505 Wrench (5/8")
Fig No Part No Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
