2.4 Installing the unit
(Continued)
PAGE 8
Installation GUIDE

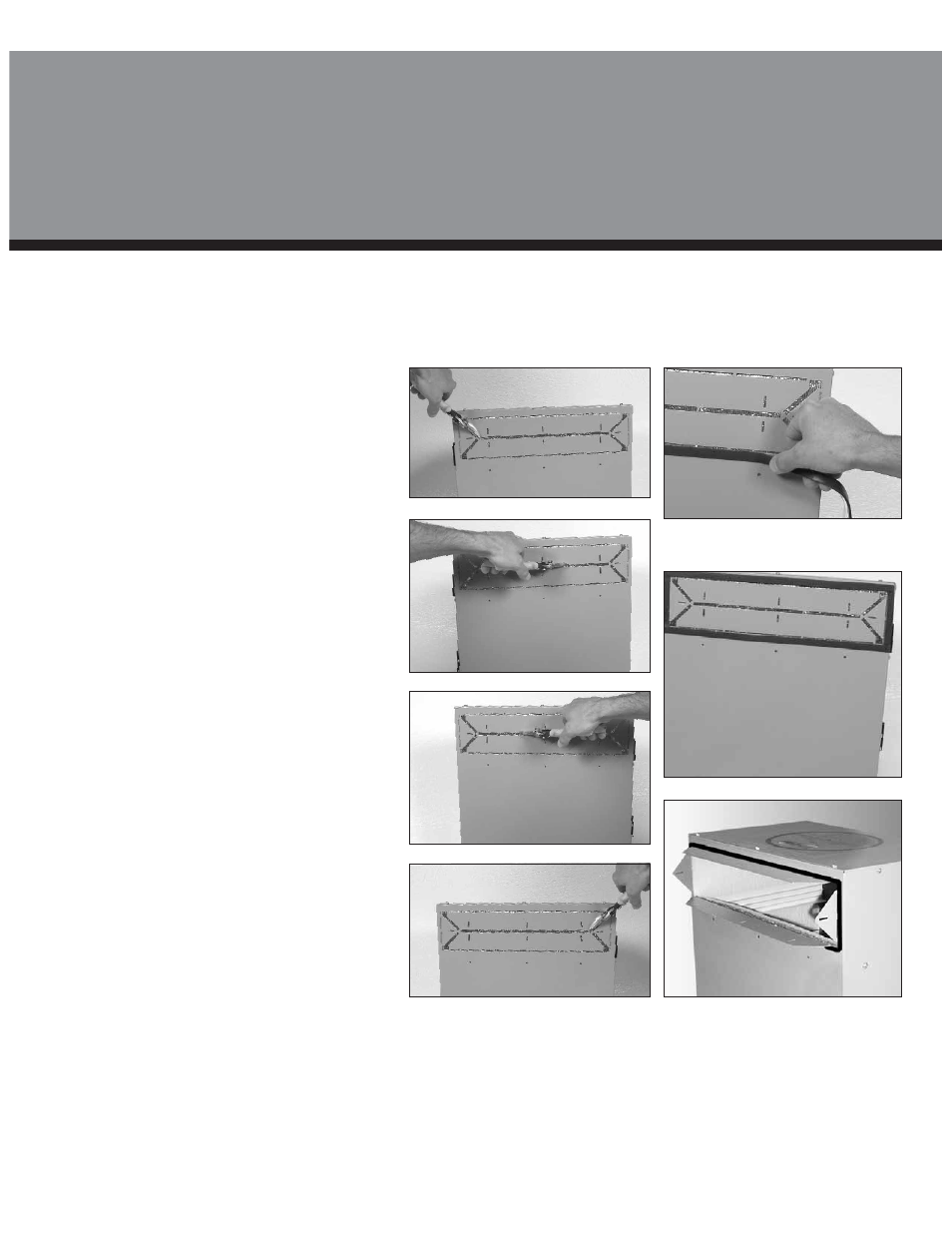

Figure 2.2j- Bend tabs outward 90 degrees.
Figure 2.2h - Apply plenum seal tape all
around both openings on the back of
the unit.
Figure 2.2i
Figure 2.2d
Figure 2.2e
Figure 2.2f
Figure 2.2g
Tips
to installer
Consult local authorities as to whether
the installation of electrical products
requires the services of a certified techni-
cian or electrician.
Tips
to installer
Removing the filters from the unit will
facilitate the installation.
Ducting Flairs
mounting system
The Sanuvox S300 HFX HEPA/UV air purifier
System is designed for single person instal-
lation. The Sanuvox Ducting Flairs are inte-
grated within the unit and will save installa-
tion time and effort.
Once the holes are made in the main return
duct and the unit is aligned, unfold the
“Ducting Flairs” and screw the unit in place.
Step 2: (Continued)
Cut the four metal tabs to release the
mounting flairs for the inlet and outlet ports.
