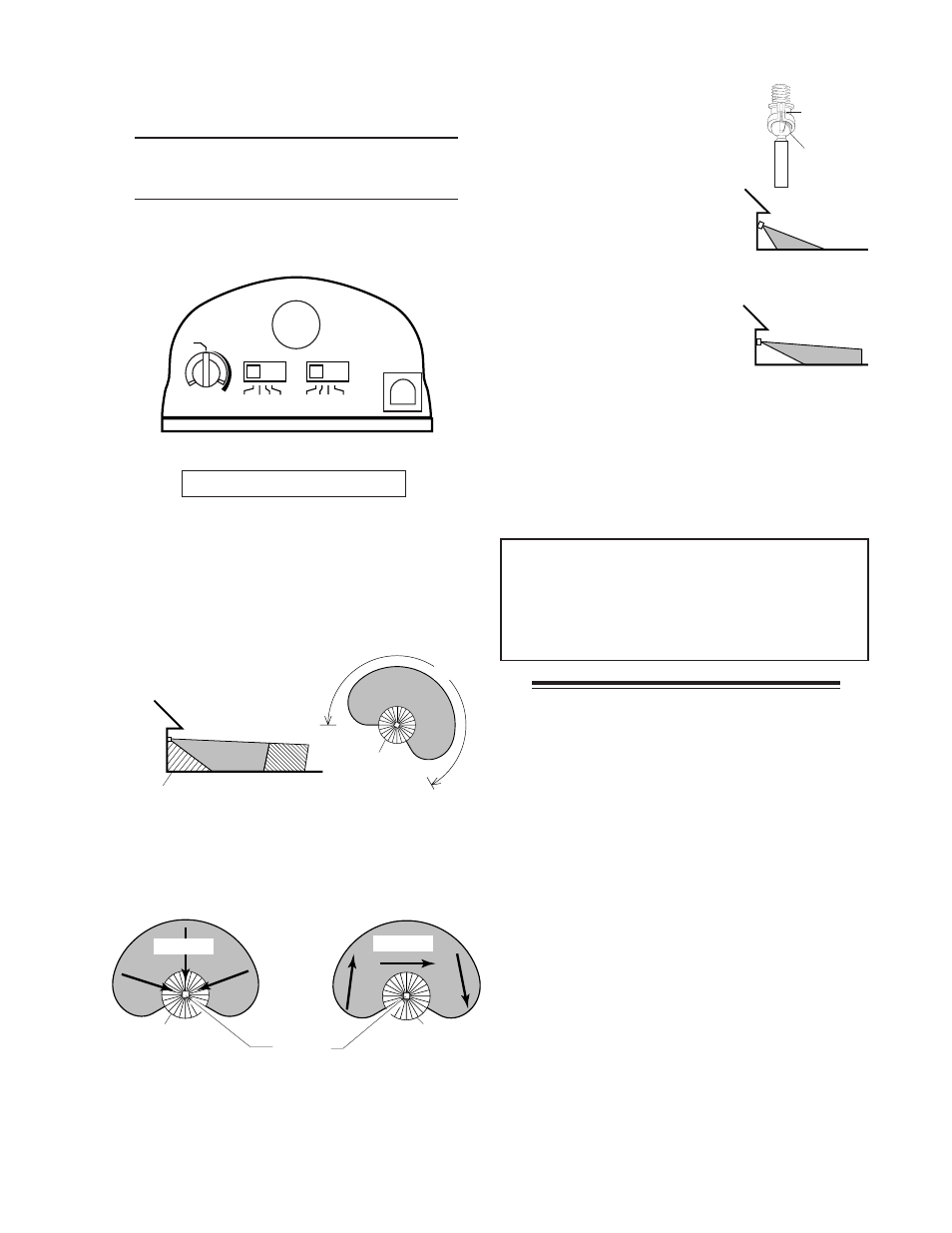

3 598-1162-01
Maximum
Maximum Range Coverage Angle
SPECIFICATIONS
Horizontal Range . . . . Up to 70 ft. (21 m); 100 ft.
(30.5 m) with Range Boost.
[varies with surrounding
temperature]
Vertical Range . . . . . . Up to 15 ft. (4.6 m)
Sensing Angle . . . . . . Up to 240° horizontal. Up to 80°
Vertical
Electrical Load . . . . . . Up to 200 Watt Maximum In-
candescent [Up to 100 Watt
Maximum each lamp holder.]
Power Requirements . 120 VAC, 60 Hz
Operating Modes . . . . TEST, AUTO, and MANUAL
MODE
Time Delay . . . . . . . . 1, 5, 20 minutes
D
UAL
B
RITE ® Timer . . . . 3, 6 hours, Dusk-to-Dawn
Replacement lamp . . . T4 100W, G8 halogen bi-pin 120
VAC
DESA Specialty Products ™ reserves the right to dis-
continue products and to change specifications at any
time without incurring any obligation to incorporate new
features in products previously sold.
MAX
MIN
RANGE
ON-TIME DUAL BRITE™
TEST 1 5 20
MINUTES
OFF 3 6 DUSK TO
DAWN HOUR
BO
O
S
T
Motion Motion
15 ft.
(4.6 m)
70 ft. 100 ft.
(21 m) (30.5 m)
Boosted
Sensor
The detector is less sensitive to motion directly towards it.
240°
D
UAL
Z
ONE
™
D
UAL
Z
ONE
™
D
UAL
Z
ONE
™
D
UAL
Z
ONE
™
NOTE: D
UAL
Z
ONE
™ is a new zone of detection which
was added as an option to select Heath ® /Zenith motion
sensing products. This feature adds a zone of detec-
tion under the motion sensor. D
UAL
Z
ONE
™ requires
no additional adjustment and operates in conjuction
with the forward-looking sensor.
❒ Loosen the clamp screw in the
sensor ball joint and gently
rotate the sensor.
❒ Walk through the coverage
area noting where you are
when the lights turn on (also,
the LED will flash several times
when motion is detected). Move
the sensor head up, down, or
sideways to change the cover-
age area.
Keep the sensor at
least 2" (2.5 cm) away from
the lamps.
❒ Adjust the RANGE as needed.
RANGE set too high may
increase false triggering.
❒ Secure the sensor head by
tightening the clamp screw.
Do not overtighten the screw.
❒ Set the amount of TIME you want the lights to stay
on after motion is detected (1, 5, or 20 minutes).
❒ Set the D
UAL
B
RITE
® switch to the amount of time
after dusk you want the lights on at low level (Off,
3, 6 Hrs., Dusk-to-Dawn).
Clamp
Screw
Ball
Joint
Aim Sensor
Down for Short
Coverage
Aim Sensor
Higher for Long
Coverage
TEST AND ADJUSTMENT
❒ Turn on the circuit breaker and light switch.
NOTE: Sensor has a 1 1 /
2
minute warm up period
before it will detect motion. When first turned
on, wait 1
1 /
2
minutes.
Bottom of Sensor
Avoid aiming the control at:
• Objects that change temperature rapidly, such as
heating vents and air conditioners. These heat
sources could cause false triggering.
• Areas where pets or traffic may trigger the control.
• Nearby large, light-colored objects reflecting light
may trigger the shut-off feature. Do not point other
lights at the sensor.
Least Sensitive Most Sensitive
❒ Turn the RANGE control to the mid position,
D
UAL
B
RITE
® to OFF and the ON-TIME control to the
TEST position.
