Air Compressor
A. Pump Air Intake Filter
B. Engine Air Filter
C. Engine START/RUN/OFF Switch
D. Air Tank Pressure Gauge
E. Regulated Pressure Gauge
F. Pressure Regulator
G. Air Outlet
H. Unloader Valve
I. Safety Valve
J. Air Tank Drain Valve(s)
K. Pump Oil Fill Plug
L. Pump Oil Drain Plug
M. Fixed Throttle
N. Choke Control
O. Fuel Valve Lever
P. Starter Grip
Q. 18V D
e WALT battery pack and
charger
E
D
C
F
G
Q
M
N
O
P

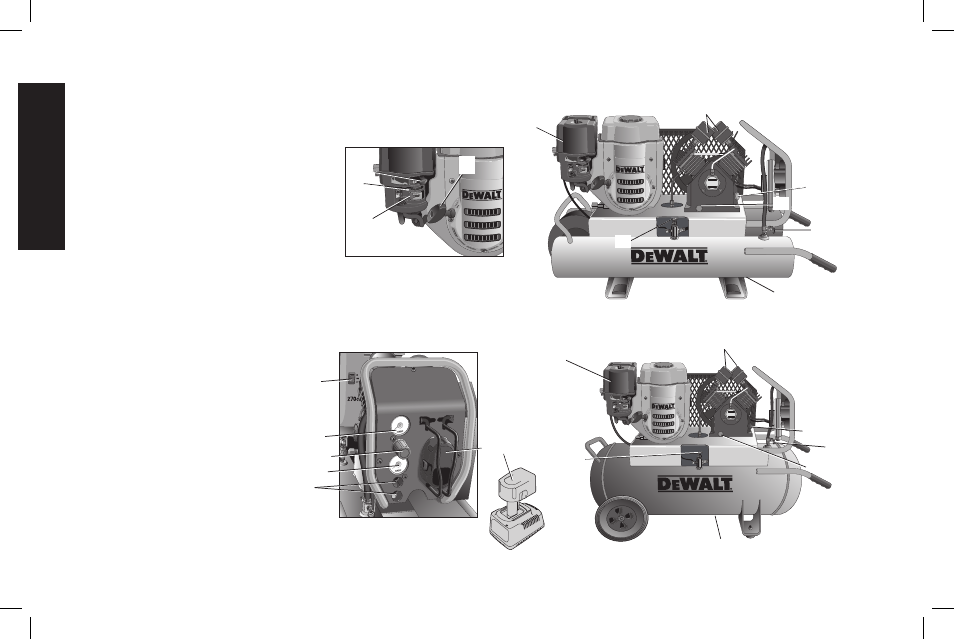

FIG. 1
A
B
J
K
L
H
I
D55690
B
L
J
A
I
H
K
D55695
