Peachtree Audio musicBox User Manual

Page 6

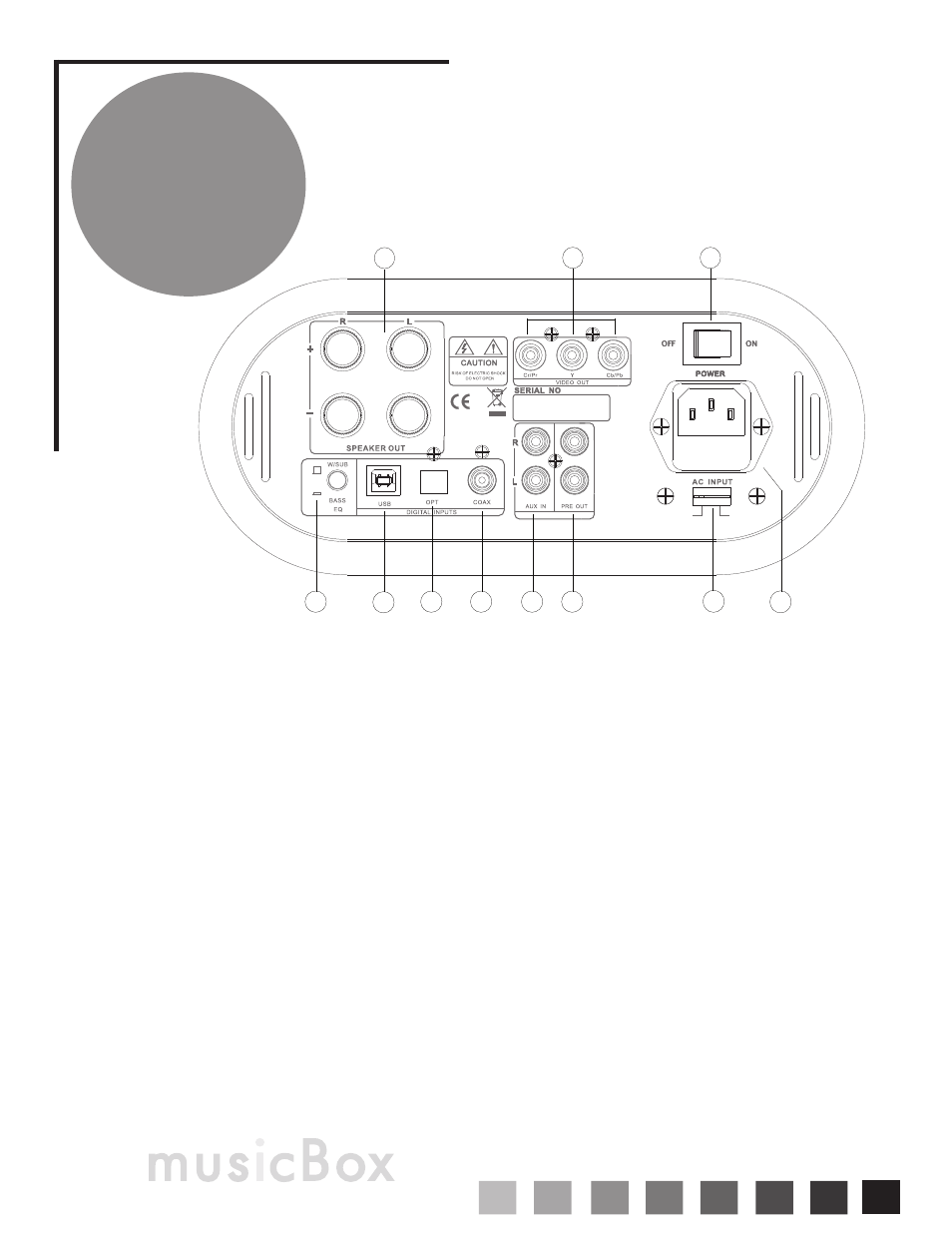

B a c k

P a n e l

RoHS

11 5V

230V

Speaker Terminals

Component Video Out (from iPod)

On-Off Switch

Bass EQ: For using the musicBox with a small bookshelf speaker like the Peachtree Audio mB3. See “Bass EQ” on the

Connections page of this manual for the proper setting when using a full-range speaker or subwoofer.

USB Digital Input: To connect directly to your computer via a USB cable.

Optical Digital Input: For optical digital sources.

Coaxial Digital Input: For coaxial digital sources.

Aux Input: For analog line level input. You will need an additional phono preamp for use with turntables.

Pre Out: This variable output is for connecting an external amplifier or powered subwoofer.

Voltage Switching: For international use. Unplug the musicBox before you make the switch and be sure to use the proper

fuse for the voltage chosen. **warning ** Improper voltage setting may cause damage to the musicBox.

AC Power Cord Attachment and Fuse: The power cord is included in the musicBox packaging. Fuse is user

replaceable after turning the musicBox off. You may call your dealer or Signal Path’s service department with any

questions regarding fuse replacement. **warning ** using the wrong value fuse may cause damage to the musicBox and

is a potential safety fire hazard.
