3 EN
W elcome to the world of amphibious RC fl ight! Equipped with removable landing gear for
amphibious operation, you’ll be able to have equal fun fl ying from the water or your favorite
landing strip. Not only is the ParkZone® Ultra Micro ICON A5 aircraft a licensed replica of the most
exciting light sport airplane in general aviation, it boasts a near-perfect scale outline and a special hull
design that makes water takeoff s and landings remarkably easy to master. With its included 2500kv
brushless motor and 2S 180mAh 20C Li-Po battery, the Ultra Micro ICON A5 has ample power for getting
up on plane and off the water.
We encourage you to spend the time to read the contents of this manual. In addition to step-by-step
assembly instructions, it contains important prefl ight and setup tips as well as a handy troubleshooting
guide. It’s all here to make sure your fi rst fl ight, and every one after, is as rewarding as can be.
Table of Contents
Charging the Battery .................................................... 4
Charging Warnings ........................................................ 5
AS3X
® System Delivers
Breakthrough Performance ....................................... 6
Transmitter and Receiver Binding ............................. 6
Installing the Flight Battery ....................................... 7
Connecting the Battery and Arming the ESC ......... 7
Prefl ight Checklist ......................................................... 8
Control Centering ......................................................... 8
Settings for Control Horns ........................................... 8
Control Direction Test ................................................... 9
Control Rates ................................................................ 10
Adjusting the Center of Gravity (CG) ...................... 10
Motor Service ............................................................... 11
Removing and Installing the Landing Gear .......... 12
Additional Safety Precautions and Warnings ....... 12
Flying Tips and Repairs ............................................... 13
Post Flight Checklist .................................................... 14
Troubleshooting Guide .............................................. 14
Limited Warranty ......................................................... 16
Warranty and Service Information .......................... 17
Compliance Information for the
European Union ........................................................... 18
Replacement Parts ...................................................... 69
Optional Parts and Accessories ................................ 70

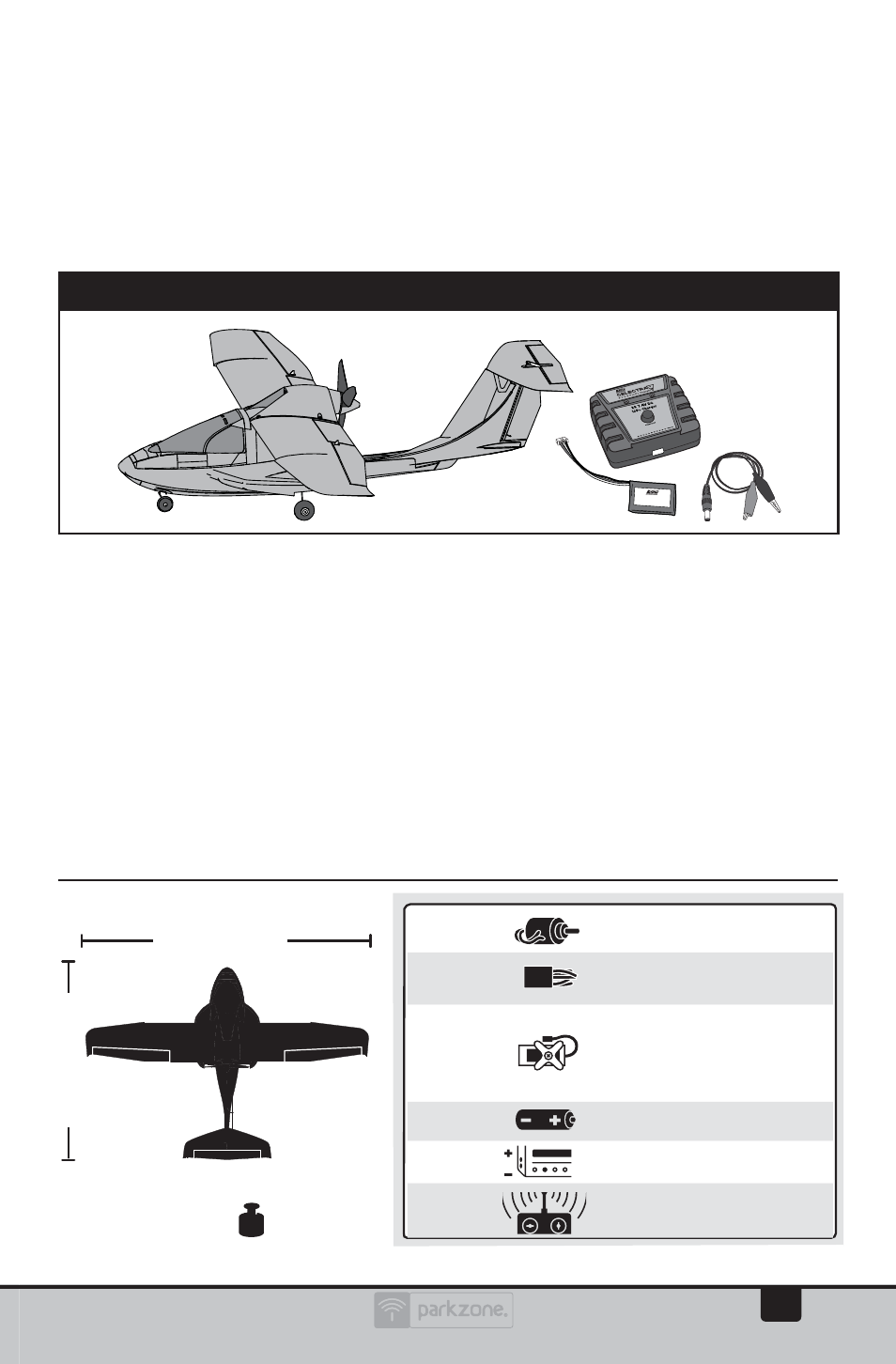

Specifi cations
To register your product online, go to www.parkzone.com
3.3 oz (94 g)
Box Contents
2S 7.4V 180mAh 25C Lithium Polymer Batter y
24.5 in (623mm)
Installed
Motor: BL180 Brushless Outrunner
Motor, 2500Kv (EFLUM180BL2)
Installed
Receiver: DSM2®/DSMX®
6-Channel AS3X® Receiver/ESC
(SPMAS6410NBL)
Installed
Servos:
(2) 2.3-Gram Performance Linear
Long Throw Servos (SPMSA2030L)
(2) 2.3-Gram Linear Long Throw
Off set Servos (SPMSA2030LO)
Included
Battery: 180mAh 2S 20C Li-Po
(EFLB1802S20)
Included
Charger: 2S 7.4V Li-Po Battery
Charger (EFLUC1007)
Sold
Separately
Recommended Transmitter:
DSM2/DSMX 4-Channel
Transmitter
16.7 in (423mm)
