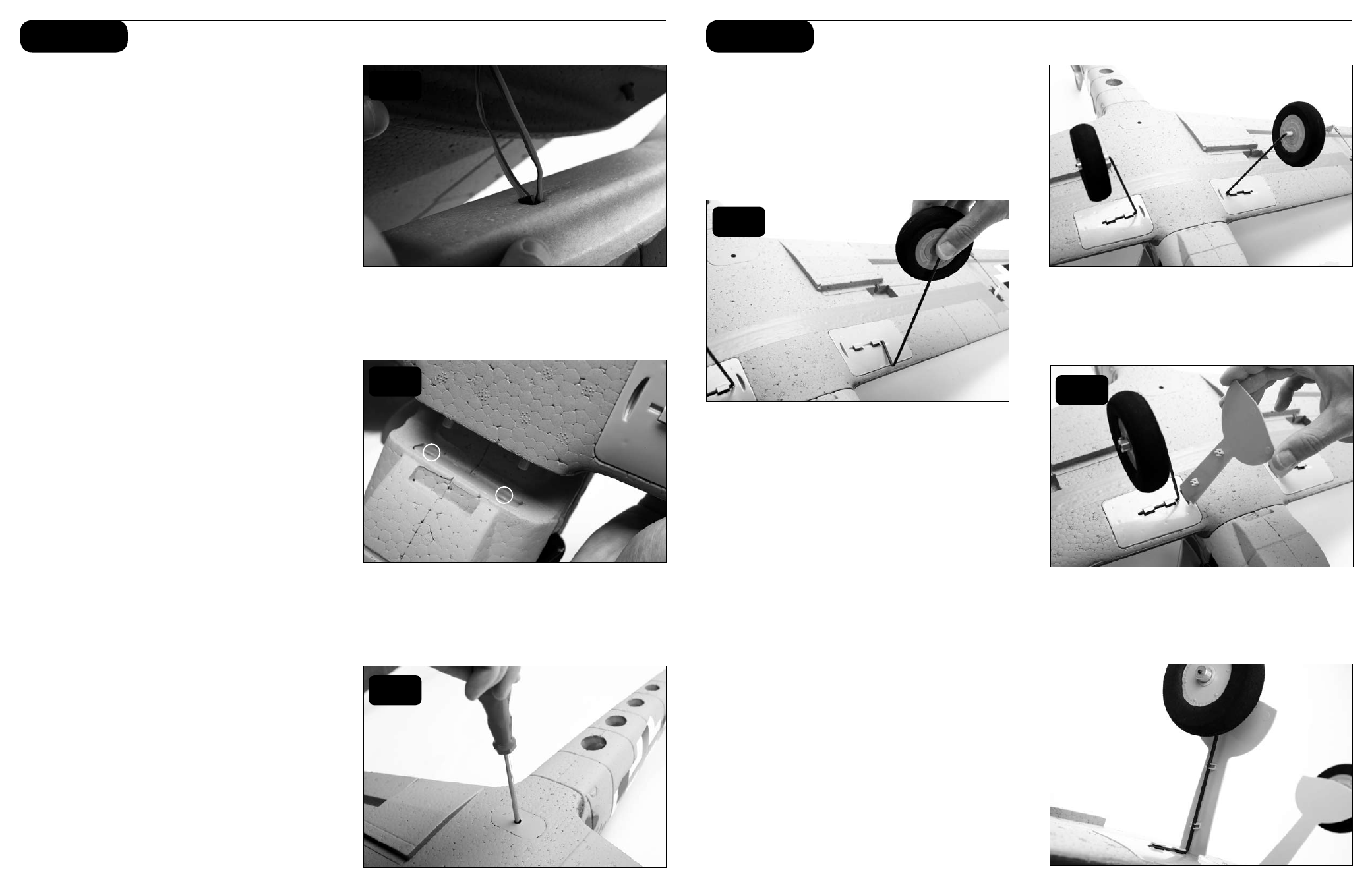

Attaching the Wing

In order to attach the wing of your Bf-109G, please follow

these simple instructions:

1. Locate the included wing mounting screw.

2. Turn over the fuselage so you are looking at the

bottom. Do the same with the wing.

3. Connect the aileron leads to the installed

Y-harness, noting proper orientation. Route the

Y-harness lead through the access hole in the bottom

of the fuselage.

4. Carefully align the two locator pins on the front of

the wing into the two small holes in the front of the

wing saddle.

5. Slide the aileron leads inside the fuselage so that

they will not become pinched in between the wing

and the fuselage when securing the wing.

6. Slide the trailing edge of the wing into the fuselage

as shown, making certain it is perfectly centered.

This must be done correctly in order to allow the

screw to thread into the fuselage. Once you are

certain the wing is centered, tighten the screw to

secure the wing.

7. The wing is correctly installed when no gap exists

between the wing and fillet.

8. Gently pull up on the rear of the canopy hatch to

remove and set aside.

9. Plug the Y-harness lead into one of the AIL ports of

the Spektrum AR500 receiver.

Installing the Landing Gear

1. Install the main landing gear by inserting it into the

locator hole in the wing. Swivel the landing gear

toward the retaining clips and gently snap into place.

2. Snap landing gear doors onto the landing gear

wire with the top of the door in the slot in the landing

gear plate.
