ParkZone PKZ4400 - Manual (Page 4)

6 7

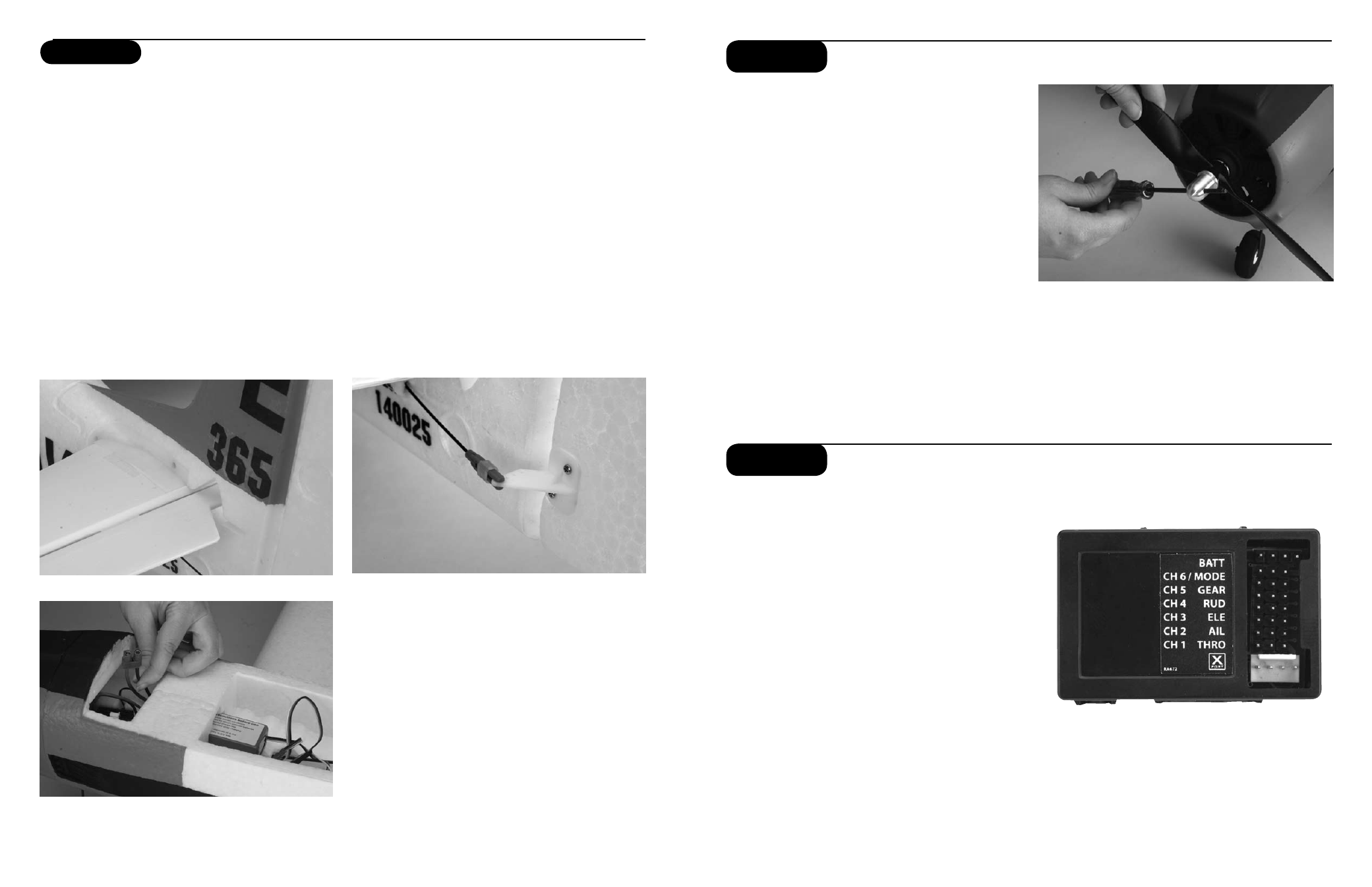

Receiver
The following are the channels that are programmed in
the receiver:
Ch. 1: Throttle
Ch. 2: Aileron
Ch. 3: Elevator
Ch. 4: Rudder
Ch. 5: Gear
Ch. 6: Mode
Make certain you plug in the servo leads to the correct
corresponding channel. Always perform a function
check prior to flying to ensure this.
Installing the Propeller and Spinner
1. Slide propeller on. Make sure pitch numbers on
prop are visible from the front of airplane.
2. Screw prop hub on. Inserting a hex driver through
the prop hub and tightening helps ensure the hub is
secure.
Step 7
Step 6
Attaching the Horizontal Stabilizer
1. Locate the horizontal stab of the tail.
2. Slide tail in allotted space of fuse, making sure
the control horn installed into the horizontal tail will
properly align with pushrod and clevis exiting the
back fuse.
3. When you are certain the tail is centered correctly
and in the right place, use the tape provided to
properly secure the tail to the fuselage as shown.
Use the tail on top and bottom of each side of the
tail (total of 4 applications).
4. Turn on transmitter and plug in flight battery. Make
sure trim levers are centered and the left stick is in
the full down position.
5. Locate clevis and rod exiting the right side of the
fuselage, and attach clevis to control surface as
shown.
6. Make any trim adjustments as necessary prior to
flight (see step 7).
Note: To make trim adjustments to the horizontal
stabilizer:
a. Turn on radio transmitter
b. Plug in fully charged battery into fuse
c. Use elevator trim of radio by moving up or down to
achieve tail to be at neutral when the gimbal is also at
neutral. If these changes are not sufficient, center the
transmitter elevator trim lever, then remove the clevis
from the control surface and turn clevis in or out as
needed to move the control surface back to neutral.
Warning: Always keep hands and all objects away
from the propeller in case the motor is engaged!
A moving propeller can cause severe injury and
damage!
Step 5
